` 1211 / 1212 Slack Tube Manometers

Dwyer

1211 / 1212 Slack Tube Manometers

Safety traps to prevent loss of fluid, easy roll up for transport and storage

Starting At
$260.00 CAD
Normally ships in 2-3 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Series 1211 Slack Tube® Manometer is as accurate as the finest laboratory “U” gages, but is designed to roll up compactly for easy carrying. These manometers cover a wide range of pressure readings from 4 in - 0 in - 4 in up to 60 in - 0 in - 60 in.

The Model 1212 Gas Pressure Kit in comes supplied with a 1211-16 Slack Tube® Manometer, carrying case, necessary tubing, and connection fittings for checking gas pressures in virtually all gas appliances.  Included with the 1212 kit is one (1) 1211-16 Slack Tube Manometer (reads pressure to 16 in H2O), one (1) carrying case, one (1) 1 oz. bottle of Fluorescein green color concentrate with wetting agent, one (1) 1/8 in pipe thread rubber tubing adapters, one (1) 1/8 in to 1/4 in pipe thread bushing, one (1) 3 ft length 3/16 in rubber tubing, one (1) rubber tubing adapter to fit standard 7/16 in diameter pud.

Included with the 1212 kit:
   1 - #1211-16 Slack Tube® Manometer, reads pressure to 16" water.*
   1 - Carrying case, plastic, 8-1/2" x 7" x 3-1/8".
   1 - 1 oz. Bottle Fluorescein green color concentrate with wetting agent.
   1 - 1/8" pipe thread rubber tubing adapters.
   1 - 1/8" to 1/4" pipe thread bushing.
   1 - 3 ft length 3/16" rubber tubing.
   1 - Rubber tubing adapter to fit standard 7/16" diameter pud.


• Rolls up for easy storage and transport
• Over pressure safety traps to prevent loss of fluid due to over range pressures or surges in pressure



• Filter monitoring
• Duct static pressure for setting damper position


Item
Description
Availability
Price
1 oz dispenser bottle fluorescein green color concentrate
Normally ships in 1-2 Weeks
$29.00 CAD

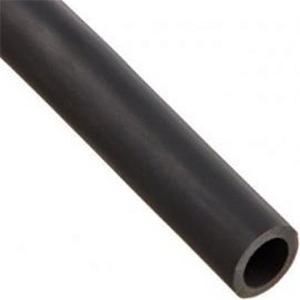

Rubber tubing has less tendency to kink in storage and occupies less space, thus is best for portable work
Normally ships in 2-3 Weeks
$3.00 CAD
Shutoff type gage connector for 3/16 in rubber tubing
Normally ships in 1-2 Weeks
$38.00 CAD
Brass adapter, 1/8" female NPT to 1/4" male NPT.
Normally ships in 3-4 Weeks
$9.00 CAD
Adapter, brass, 1/8" NPT to 3/16" rubber and 1/8" ID plastic tubing
Normally ships in 1-2 Weeks
$11.00 CAD
Plastic carrying case (7-9/16" x 5-7/8" x 2-13/16").
Normally ships in 3-4 Weeks
$71.00 CAD
Steel carrying case for portable draft gages 104-8, 104-10 and 48" and larger Slack TubeŽ manometers - 18-1/2" x 4-3/8" x 2-1/4".
Normally ships in 3-4 Weeks
$301.00 CAD
