1586A Super-DAQ Precision Temperature Scanner

Measures and logs thermocouples, PRTs, thermistors, DC voltage, DC current and resistance

Starting At
$4,757.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The 1586A Super‑DAQ is the most accurate and flexible temperature data acquisition system on the market. It scans and records temperature, DCvoltage, DC current, and resistance for up to 40 input channels and scan speeds as fast as 10 channels per second. The Super-DAQ can be configured for use as a multi-channel data logger in the factory or as a precision reference thermometer for benchtop sensor calibration in the lab.

The 1586A Super-DAQ collects time-stamped precision temperature and electrical measurements for data analysis by technicians, engineers, and quality control personnel to verify process control, analyze interactive systems, ensure conformance to quality standards, or to correlate related events for R&D or troubleshooting. Measurement data and statistics can be viewed in tabular format for all active channels. With the graphing feature, up to four channels can be plotted at the same time, making it easy to quickly assess test setup and results before analyzing the data on a PC.

When configured with the DAQ-STAQ Multiplexer, the Super-DAQ has the accuracy of the best benchtop reference thermometer readouts for calibration of PRTs, RTDs, thermistors, or thermocouples. Lab efficiency can be increased when the Super-DAQ is connected to a Fluke Calibration drywell or bath and Automated Sensor Test routines are run.

The 1586 is ideal for a number of applications such as thermal mapping, temperature validation, process sensor calibration, and more. These applications are found in a various industries including pharmaceutical, biotechnology, food processing, aerospace, and automotive.

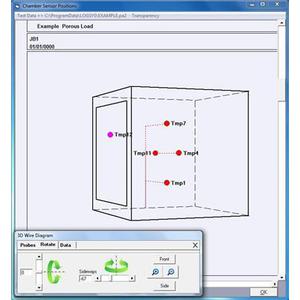

Some temperature data acquisition applications require compliance to government and standards agency requirements. TQSoft and TQAero thermal validation software help engineers, technicians and lab managers to meet the key guidelines for temperature data collection. These software solutions provide a complete qualification, reporting, documentation, and audit trail management system.

• Measure thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance
• Best-in-class temperature measurement accuracy
• Input channels: Up to 40 isolated universal inputs
• Flexible configuration: Internal High-Capacity Module and/or DAQ-STAQ Multiplexer
• Selectable scan speed: Up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Real-time color trending: Chart up to four channels simultaneously
• 6 1/2 digit display resolution for dc voltage, dc current, and resistance
• Current reversal minimizes thermoelectric effects, improving PRT/RTD measurement accuracy
• Automated sensor calibration: Control Fluke Calibration temperature sources such as dry-wells or micro-baths for automated calibration routines
• Data storage: Records up to 20 MB of data and setup files to internal non-volatile memory or to an external USB drive. Transfer data to a PC using the USB drive or LAN connection and view data in Microsoft® Excel
• Data security: Administrator and user profiles for protecting settings and ensuring test traceability
• Mx + B scaling and channel offset zero function
• Alarms: Two independent, user-defined alarms for each channel indicate when an upper or lower range has been exceeded
• Supported by TQSoft and TQAero thermal validation software for FDA 21 CFR Part 11 and AMS 2750 compliant data collection

Mains Voltage 100 V Setting: 90 V - 110 V
120 V Setting: 108 V - 132 V
220 V Setting: 198 V - 242 V
240 V Setting: 216 V - 264 V
Frequency 47 Hz - 440 Hz
Power Consumption 36 VA peak (24 W average)
Environment Temperature Operating: 0C - 50C
Full accuracy: 18C - 28C
Storage: −20C - 70C
Warm-up: 1 h to full accuracy specifications
Relative Humidity (Non-Condensing) Operating: 0C - 30C, <80 %; 30C - 50C, <50 %
Storage: −20C - 70C, <95 %
Altitude Operating: 2,000 m
Storage: 12,000 m
Vibration and Shock Complies with MIL-PRF-28800F Class 3
Channel Capacity Total analog channels: 45
Voltage/resistance channels: 41
Current channels: 5
Digital I/O: 8 bits
Totalizer: 1
Alarm outputs: 6
Trigger input: 1
Channel Input Connector Types 1586A Channel 001 (front panel): gold pins, bare wire, spade lugs, banana plugs
DAQ-STAQ Multiplexer: gold pins, bare wire, mini spade lugs, mini banana plugs, mini-jack thermocouple
High-Capacity Module: gold pins, bare wire
Input Protection 50 V all functions, terminals and ranges
Math Channels Number of channels: 20
Operations: sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum
Triggers Interval, external (trigger input), alarm, remote (bus), manual, automated test
Memory Scan data RAM: 75,000 readings with timestamp
Data/Setup flash memory: 20 MB
USB Host Port Connector type: Type A
Function: Memory
File system: FAT32
Memory capacity: 32 GB
USB Device Port Connector type: Type B
Class: Instrument
Function: Control and data transfer
Command protocol: SCPI
LAN Function: Control and data transfer
Network protocols: Ethernet 10/100, TCP/IP
Command protocol: SCPI
RS-232 Connector: D-sub 9 pin (DE-9)
Baud rates: 1200, 2400, 4800, 9600, 19200, 38400
Function: Temperature source control output
Dimensions (H x W x D) 150 mm x 245 mm x 385 mm
Weight: 6 kg (typical configuration)
Shipping Weight 9.5 kg (typical configuration)
Conformity CE, CSA, IEC 61010 3rd ed.

Item
Description
Availability
Price

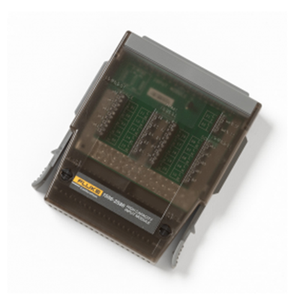

High-capacity module for the 1586 temperature scanner
Normally ships in 1-2 Weeks
Starting At
$355.00 CAD
Configure

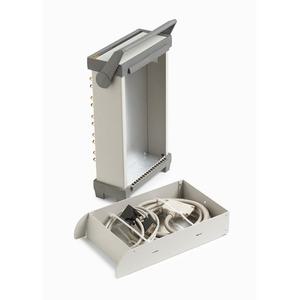

DAQ-STAQ multiplexer for the 1586A temperature scanner
Normally ships in 1-2 Weeks
Starting At
$2,560.00 CAD
Configure
DAQ-STAQ multiplexer interface cable for the 1586A temperature scanner
Normally ships in 1-2 Weeks
$373.00 CAD
10 Ω current shunt resistors for the 1586A temperature scanner (set of 10)
Normally ships in 1-2 Weeks
$81.00 CAD
Rack mount kit for the 1586A temperature scanner
Normally ships in 1-2 Weeks
Starting At
$301.00 CAD
Configure
Super-DAQ/DAQ-STAQ carrying case for the 1586 temperature scanner
Normally ships in 1-2 Weeks
$1,399.00 CAD

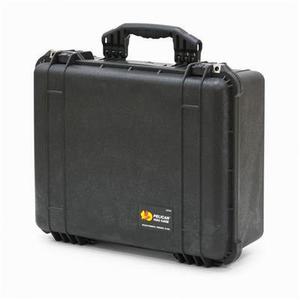

Carrying case for the 1586A temperature scanner
Normally ships in 1-2 Weeks
$899.00 CAD
Ideal for general purpose and precision temperature data acquisition applications
Normally ships in 1-2 Weeks
Starting At
$2,500.00 CAD
Configure
Validation reference binder
Normally ships in 1-2 Weeks
$1,073.00 CAD
