15XP-B Digital Multimeter VolTect™ Non-Contact Voltage D...
Features TTL logic test, diode test, a special 2000 MΩ measurement range with an integrated tilt stand for convenience on the bench
Amprobe 15XP-B is the right choice for electronics engineers and field service technicians, featuring TTL logic test for digital circuits, diode test for component level troubleshooting, a special 2000 MΩ measurement range, and an integrated tilt stand for convenience on the bench.

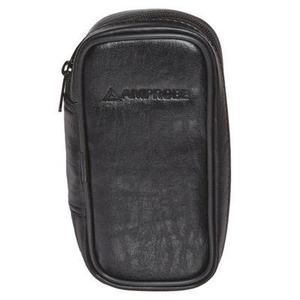

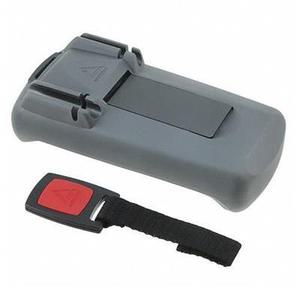

The 15XP-B multimeter comes with test leads, user's manual, Magne-Grip holder with hanging straps, and a carrying case.
• The 15XP-B is the right choice for electronics engineers, technicians and field service
• Autoranging display for faster measurements
• TTL logic test for digital circuits
• Integrated tilt stand for easy bench use
• Diode test for component level troubleshooting
• Data hold freezes display to “hold" measurement reading
• 600 V AC / 600 V DC—highest voltage rating in this size of meter
• Special 2000 MΩ measurement range
15XP-B | |
DC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
AC Voltage | 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V |
Current AC/DC | 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A |
Resistance | 200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ, 2000 MΩ |
Continuity Beeper | • |
VolTect™ Non-Contact Voltage Detection | 70 VAC - 600 VAC (50 Hz - 60 Hz) |
Capacitance | - |
Frequency | - |
Temperature | - |
Logic Test | TTL, 20 MHz |
Battery Test | - |
Display | 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999 |
Polarity | Automatic, positive implied, negative polarity indication |
Over-Range | (OL) or (-OL) is displayed |
Zero | Automatic |
Low Battery Indication | The + is displayed when the battery voltage drops below the operating level |
Auto Power Off | Approx. 10 min |
Measurement Rate | 2 times/s, nominal |
Operating Environment | 0°C - 50°C at < 70% R.H. |
Accuracy | Stated accuracy at 23°C ± 5°C, < 75% relative humidity |
Power | Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22 |
Continuity Audible Indication | Less than 25 Ω |
Diode Test Current | 1.2 mA (approximate) ± (1.5% RDG + 3 digits) |
Non-Contact Voltage Indicator | Sense voltage 70 V - 600 V AC (50 Hz - 60 Hz) beeper chirps and big bright red LED comes on, works on all ranges |
For complete specifications please download the product datasheet under the “Resources" tab.
| Amprobe 15XP-B Digital Multimeter VolTect™ Non-Contact Voltage Detection - Data Sheet 379.1 KB |
| Amprobe 15XP-B Digital Multimeter VolTect™ Non-Contact Voltage Detection - Manual 1.7 MB |
