Partlow

1800+ Temperature Controller

Low-cost, general purpose 1/8 DIN temperature controllers

Starting At
$746.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The 1/8 DIN Partlow 1800+ temperature controller comes from the new generation of ‘+' Series. Partlow 1800+ temperature controllers take flexibility and ease of use to new levels by incorporating numerous improvements in product specifications, communications, display interfaces, and configuration software. These improvements surpass competitive offerings in ease of use, delivery, and value-per-dollar.

Partlow 1800+ temperature controllers have added even more versatile features and user-friendly functionalities, including remote setpoint inputs, digital inputs, plug-in output modules, a customizable operator/HMI menu, jumperless and auto-hardware configuration, and 24VDC transmitter power supply. The new generation Partlow 1800+ temperature controller transforms the complicated into the simple while saving you time (as much as 50% on product set-up), which has the added benefits of reducing inventory stock and virtually eliminating the likelihood of operator errors.

Making things complicated is easy – the clever trick with the new generation Partlow 1800+ temperature controller is to make it simple.

These 1/8 DIN Partlow 1800+ temperature controllers are ideal for temperature control applications requiring a value-priced, user-friendly, versatile, and well-featured general-purpose controller.

• Dual setpoints with optional remote selection
• Plug-in output modules allow installing just the functions needed
• Expanded user-selectable operator modes
• User-selectable plug-and-play output cards
• Process and loop alarms
• Adjustable hysteresis
• Optional 10V SSR driver
• Improved Windows PC configuration software
• Improved easy-to-use HMI
• Jumperless input configuration
• Auto-hardware recognition
• Faster communication speeds
• More security options
• Backward compatible panel cutout, housing, and terminal wiring capability


Operating Temperature 32 to 131F (0 to 55C)
Storage Temperature 4 to 176F (20 to 80C)
Humidity 20% to 95% non-condensing RH
Supply Voltage 100240V 50/60Hz; optional 24VDC (2048VAC / 2265 VDC)
Height 10mm (0.39) upper display, 8mm (0.31) lower display
Volts 05, 15, 010 or 210VDC
DC Milliamps 020mA or 420mA
DC Millivolts 050, 1050mV
Accuracy 0.1% of input range 1 LSD (T/C CJC better than 1C)
Width 1.89˝ (48mm
Depth 3.93˝ (100mm)
Height 3.78˝ (96mm)
Weight 0.46 lbs (0.21kg)
Mounting Plug-in with panel mounting fixing
strap
Safety CE, UR, cUR, UL file# E67237

• Industrial and lab ovens/furnaces, plastics, and thermal forming
• Form/fill and seal
• Packaging applications
• And any others where low costs, smaller size, and unmatched connectivity are critical requirements


Item
Description
Availability
Price
Accessories
RS-485 to USB Converter
Two-wire RS485 to USB converter
Normally ships in 1-2 Weeks
$175.00 CAD
West Controller Configurator Kit
Programming interface cable for the Partlow West Plus series & EC44 temperature controllers
Normally ships in 1-2 Weeks
$242.20 CAD
Plug-In Option Slot 1
West PO1-C10 Option Board
Relay output plug-in module slot 1
Normally ships in 2-3 Weeks
$58.80 CAD
West PO1-C50 Option Board
SSR driver plug-in module slot 1
Normally ships in 2-3 Weeks
$58.80 CAD
West PO1-C80 Option Board
Triac plug-in module slot 1
Normally ships in 2-3 Weeks
$58.80 CAD
West PO1-C21 Option Board
Linear output plug-in module slot 1
Normally ships in 2-3 Weeks
$95.20 CAD
Plug-In Option Slot 2 or 3
West PO2-C10 Option Board
Relay output plug-in module slots 2 and 3
Normally ships in 1-2 Weeks
$58.80 CAD
West PO2-C50 Option Board
SSR driver plug-in module slots 2 and 3
Normally ships in 1-2 Weeks
$58.80 CAD
West PO2-C80 Option Board
Triac plug-in module slot 2
Normally ships in 1-2 Weeks
$58.80 CAD
West PO2-C21 Option Board
Linear output plug-in module slots 2 and 3
Normally ships in 1-2 Weeks
$95.20 CAD
West PO2-W08 Option Board
Transmitter power supply plug-in module slot 2 or 3
Normally ships in 1-2 Weeks
$121.80 CAD
Plug-In Option Slot A
West PA1-W06 Option Board
RS-485 communications plug-in module slot A
Normally ships in 1-2 Weeks
$126.00 CAD
West PA1-W03 Option Board
Digital input plug-in module slot A
Normally ships in 1-2 Weeks
$126.00 CAD
West PA1-W04 Option Board
Basic remote setpoint plug-in module slot A
Normally ships in 2-3 Weeks
$126.00 CAD
Plug-In Option Slot B

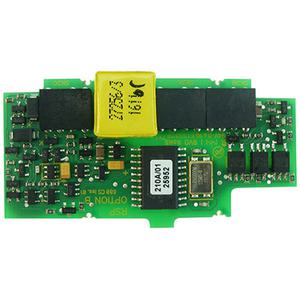

West PB1-W0R Option Board
Full remote setpoint with digital input plug-in module slot B
Normally ships in 2-3 Weeks
$173.60 CAD
