1831 - DPDT Low Differential Pressure Switches

Manual Reset eliminate common problems associated with typical high duct static cutout installations

Starting at

$329.85CAD

Have questions? We're here to help!

Call

Configure

Used in

1831 DPDT Low Differential Pressure Switches 07396

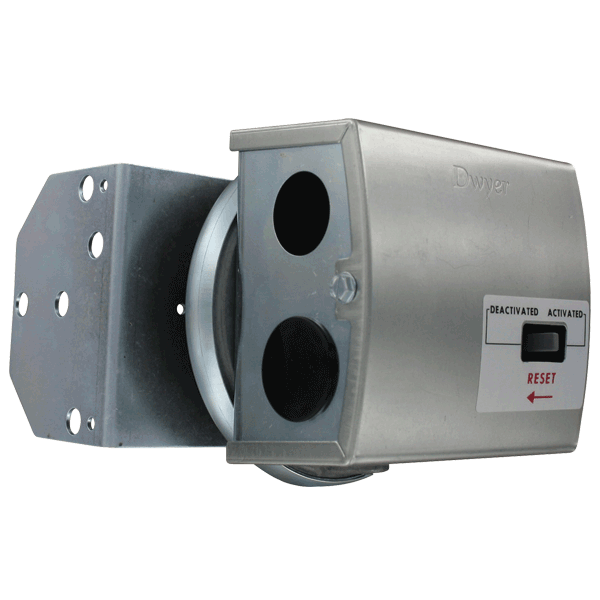

One of our most popular differential pressure switches is now available with a DPDT switch and manual reset. The Series 1831 combines small size with 4% set point repeatability. Absolutely no power is required to operate the DPDT switch. Set point adjustment on the switch is easily accessible for modifying the set point. The Series 1831 DPDT Low Differential Pressure Switches with Manual Reset eliminate common problems associated with typical high duct static cutout installations. Since the 1831 requires absolutely no power to drive its outputs, a separate power loop and its associated additional wiring and conduit is alleviated, reducing material and labor installation costs. Both control contacts of the Series 1831 activate at the same time. The potential of the lead switch shutting down the fan preventing the lag switch from sending an alarming signal to the DDC is no longer a probable system liability. Potential costly maintenance calls are diminished. Unlike typical switches that posses only a single conduit entry for both control loops, the Series 1831 provides two conduit connections simplifying wiring while eliminating additional conduit tees.

• No power to operate DPDT switch means no additional wiring or conduit reduces material and installation labor costs

• Easy access for modifying set point simplifies adjustment

• Both control contacts activate at the same time eliminating system issues where lead switch activities prevent the lagging switch from sending a signal

Weight:	1 lb 2 oz (522 g).

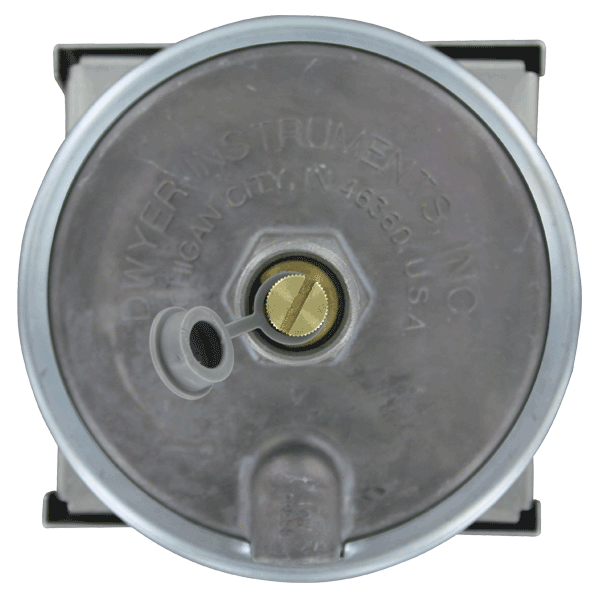

Set Point Adjustment:	Screw type inside mounting spud.
Mounting Orientation:	Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections:	1/8" female NPT.

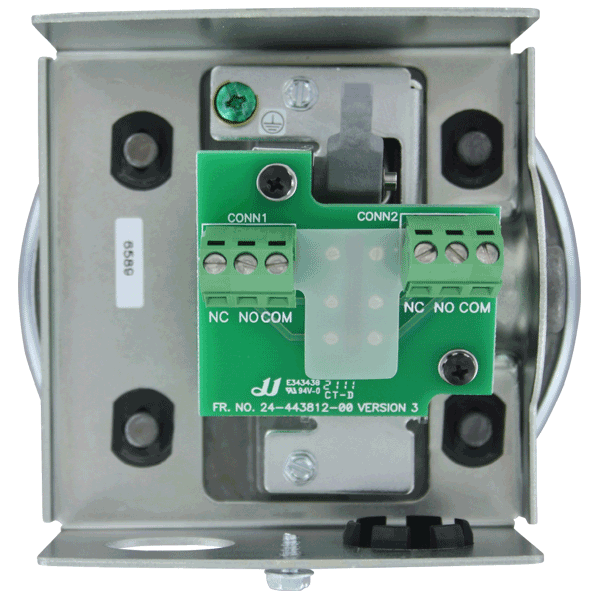

Electrical Connections:	Screw type terminal block.
Electrical Rating:	4 A @ 125/250 VAC.
Repeatability:	±4% max.
Actuation Time Difference:	1 millisecond maximum actuation delay between contacts.
Switch Type:	2 SPDT.
Pressure Limits:	10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
Temperature Limits:	-30 to 180°F (-34 to 82.2°C).
Wetted Materials:	Consult factory.
Service:	Air and non-combustible, compatible gases.
