Fluke 190 Series III ScopeMeter® Test Tools are engineered to go where you go, and tackle just about any troubleshooting job along the way. These CAT III 1000 V/CAT IV 600V rated test tools combine rugged portability with the high performance of bench oscilloscopes to help you take on the challenges of installing, commissioning and maintaining industrial machinery, automation and process controls, and power conversion electronics with ease—from DC to 500 MHz.

Choose from two or four channel models with a wide range of bandwidth options. Fast sampling rates up to 5.0 GS/s, 200 ps resolution and deep memory of 10,000 samples per channel allow high-accuracy capture and display of waveform details, noise, and other disturbances. Perform timing or amplitude related measurements on three phases or three-axis control systems, or simply compare and contrast multiple test points in a circuit under test. Features like TrendPlot™ Paperless Recorder, ScopeRecord™ Mode, Connect-and-View™ Triggering and a unique 100-screen Replay function help you quickly diagnose issues to minimize repair costs and downtime. These features make the oscilloscopes easy to use especially when diagnosing the most difficult problems like complex waveforms, induced noise, intermittent events and signal fluctuations or drift.

• Up to four independent floating isolated inputs, up to 1000 V

• Up to 5 GS/s real time sampling (depending on model and channels used)

• Deep memory: 10,000 points per trace waveform capture (scope mode)

• CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments

• Up to seven hours of battery operation using BP291

• Large, bright color display is easy to view in nearly any environment

• Easy to store and view historical data and transfer to a PC via USB or Wifi

• Convenient battery access door for quick battery swaps in the field

• IP51 rating, dust and drip-proof

• Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals

• Frequency spectrum using FFT-analysis

• Automatic capture and REPLAY of 100 screens

• ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis

• TrendPlot Paperless Recorder mode with deep memory for long- term automatic measurements

• 5,000 count DMM included in the 2-channel models

Specifications

Fluke 190-504

Fluke 190-502

Fluke 190-204

Fluke 190-202

Fluke 190-104

Fluke 190-102

Fluke 190-062

Bandwidth

500 MHz

500 MHz

200 MHz

200 MHz

100 MHz

100 MHz

60 MHz

No. of Channels

4 channels

2 channels

4 channels

2 channels

4 channels

2 channels

2 channels

Real-Time Sample Rate

5 GS/s

5 GS/s

2.5 GS/s

2.5 GS/s

1.25 GS/s

1.25 GS/s

625 MS/s

Inputs

4 x BNC input for scope and meter measurements

2 x BNC input plus 1 x DMM input

4 x BNC input for scope and meter measurements

2 x BNC input plus 1 x DMM input

4 x BNC input for scope and meter measurements

2 x BNC input plus 1 x DMM input

2 x BNC input plus 1 x DMM input

Timebase Range

1 ns/div to 4s/div

1 ns/div to 4s/div

2 ns/div to 4s/div

2 ns/div to 4s/div

5 ns/div to 4s/div

5 ns/div to 4s/div

10 ns/div to 4s/div

Trigger Source

4 x BNC input

2 x BNC input or external via DMM input

4 x BNC input

2 x BNC input or external via DMM input

4 x BNC input

2 x BNC input or external via DMM input

2 x BNC input or external via DMM input

Independently- Floating Isolated Inputs

Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground

Input Sensitivity

2 mV - 100 V/div plus variable attentuation

Trigger Types

Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle

Glitch Capture

8 ns

Scope Measurements

Cursor: 7

Automatic: 30

Maximum Record Length

ScopeRecord mode: 30,000 pts per input

Scope mode: 10,000 pts per input

Persistence

Digital persistence giving analog oscilloscope-like waveform decay

Waveform Compare

Waveform reference with automatic Pass/Fail testing

DMM Specifications (Two-Channel Models)
Meter Inputs (also used as External Trigger Input for the Oscilloscope Mode)	4 mm banana inputs, fully isolated from scope inputs and from scope ground
Maximum Resolution	5000 counts
Measurements	V DC, V AC _rms, V AC + DC _rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
Memory Locations (Screen + Setup)	30 Waveform memories plus 10 recording memories plus 9 screencopy memories.
Display	153 mm full color LCD with fast update rate

Environmental Specifications
Temperature	Operating Temperature	0°C - 40°C, including batteries 0°C - 50°C, excluding batteries
	Storage Temperature	-20°C - 60°C
Operating Altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V/ CAT III 1,000 V Up to 3,000 m (10,000 ft) for CAT III 600 V/ CAT II 1,000 V

Safety Specifications
Electrical Safety	1,000V CAT III/600V CAT IV (EN61010-1)

Mechanical and General Specifications
	Fluke 190-504	Fluke 190-502	Fluke 190-204	Fluke 190-202	Fluke 190-104	Fluke 190-102	Fluke 190-062
Lithium-Ion Battery	BP291 (4800 mAh)	BP290 (2400mAh)	BP291 (4800 mAh)	BP290 (2400 mAh)	BP291 (4800 mAh)	BP290 (2400 mAh)	BP290 (2400 mAh)
Size	270 mm x 190 mm x 70 mm
Weight	2.2 kg
Warranty	3 years on main instrument

Fluke 190 Series III ScopeMeter Test Tool - Data Sheet 1 MB
Fluke 190 Series III ScopeMeter Test Tool - Product Manual 8.8 MB
View All Part Numbers

Item

Description

Availability

Price

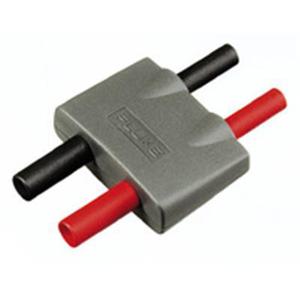

CS20MA Current Shunt

Intended for use with any of the ScopeMeter test tools for AC and DC measurements on 4 - 20 mA Process Control loops

Normally ships in 4-6 Weeks

$159.00 CAD

MA190 Accessory Kit for Medical and Video Applications

Accessory kit for medical and video applications

Normally ships in 4-6 Weeks

$715.00 CAD

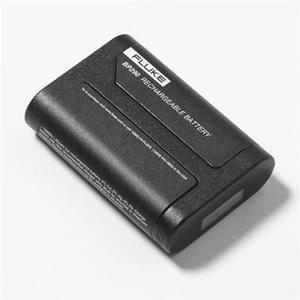

BP290 2400 mAh High-Capacity Li-Ion Battery

2400 mAh high-capacity Li-ion battery for Fluke 190 Series-II

Normally ships in 4-6 Weeks

$452.00 CAD

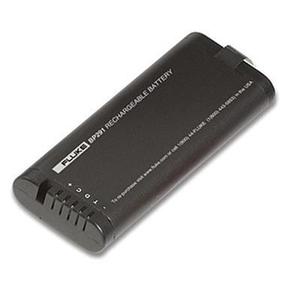

BP291 4800 mAh High-Capacity Li-Ion Battery

4800 mAh high-capacity Li-ion battery for Fluke 190 Series-II

Normally ships in 4-6 Weeks

$631.00 CAD

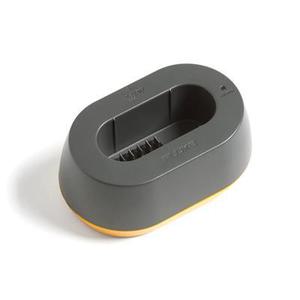

EBC290 External Battery Charger

Fluke External Battery Charger for charging BP290 or BP291 outside the instrument

Normally ships in 4-6 Weeks

$238.00 CAD

C195 Case

Zippered carrying case with a divisible main compartment, detachable side pouches, and a shoulder strap

Normally ships in 4-6 Weeks

$320.00 CAD

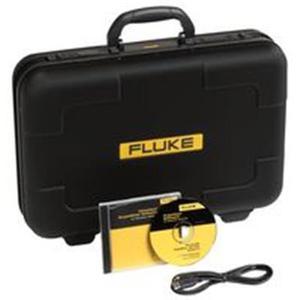

SCC290 FlukeView Software for ScopeMeter

FlukeView software for ScopeMeter (SW90W) and carrying case (C290) kit

Normally ships in 4-6 Weeks

$918.00 CAD

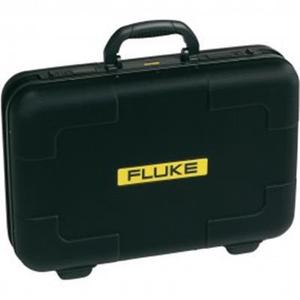

C290 Hard Shell Protective Carrying Case

Hard shell protective carrying case for the Fluke 190 Series-II

Normally ships in 4-6 Weeks

$466.00 CAD

80i-110s AC/DC Current Clamp

Compatible with many Fluke ScopeMeter Test Tools, Power Harmonics Analyzers, Oscilloscopes, Multimeters, and many other voltage measurement devices

Normally ships in 4-6 Weeks

$1,444.00 CAD

i1010 / i1010-KIT AC/DC Current Clamp

Highly reliable and accurate current clamp that measures 1 A to 1000 A without breaking the circuit

Normally ships in 4-6 Weeks

Starting At
$728.00 CAD

Configure

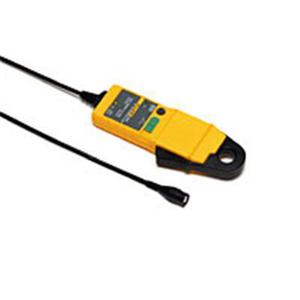

i30s AC/DC Current Clamp

May be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive AC and DC current measurement

Normally ships in 4-6 Weeks

$1,046.00 CAD

i400s AC Current Clamp

This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC

Normally ships in 4-6 Weeks

$496.00 CAD

i410 / i410-KIT AC/DC Current Clamp

Expands the functionality of digital multimeters to measure up to 400 A for both AC and DC current

Normally ships in 4-6 Weeks

Starting At
$449.00 CAD

Configure

i1000s AC Current Probe

Designed to expand oscilloscope applications in industrial and power environments

Normally ships in 4-6 Weeks

$1,020.00 CAD

i2000-FLEX AC Current Clamp

Used to measure currents up to 2000 A when used in conjunction with multimeters, recorders or data loggers

Normally ships in 4-6 Weeks

$762.00 CAD

i200s AC Current Clamp

Extends the current ranges of Fluke tools

Normally ships in 4-6 Weeks

$435.00 CAD

i3000s Flex AC Current Clamp

Used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers

Normally ships in 4-6 Weeks

Starting At
$1,047.00 CAD

Configure

i5S AC Current Clamp

Especially configured to provide good accuracy at low levels

Normally ships in 4-6 Weeks

$1,047.00 CAD

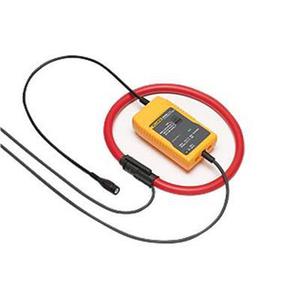

i6000S Flex AC Current Probe

Can be used to measure currents up to 6000A when used in conjunction with oscilloscopes, recorders or data loggers

Normally ships in 4-6 Weeks

Starting At
$1,360.00 CAD

Configure

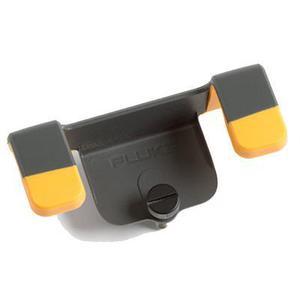

HH290 Hanging Hook

Hanging hook for ScopeMeter 190 Series-II

Normally ships in 4-6 Weeks

$169.00 CAD

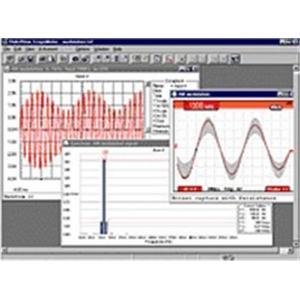

SW90W FlukeView ScopeMeter Software

Get more out of your ScopeMeter Test Tool by documenting, archiving, and analyzing with the SW90 FlukeView ScopeMeter Software

Normally ships in 4-6 Weeks

$521.00 CAD

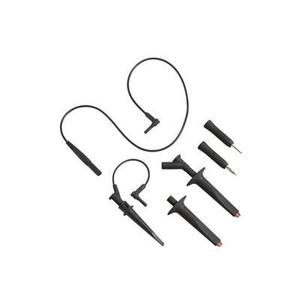

AS400 Probe Accessory Extension Set

Probe accessory extension set for VPS400 probes

Normally ships in 4-6 Weeks

$238.00 CAD

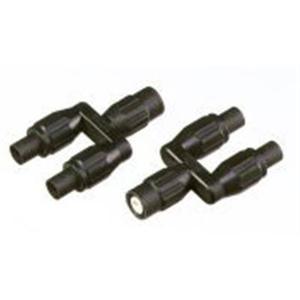

PM9093 Male BNC to Dual Female BNC Adapter

Male BNC to dual female BNC adapter set

Normally ships in 4-6 Weeks

$129.00 CAD

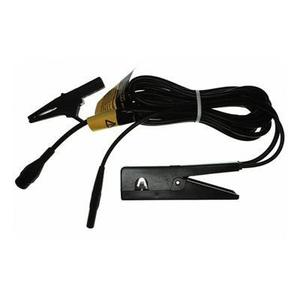

PM9096/201 Secondary Ignition Pickup, 1000:1

Secondary ignition pickup for use with Fluke ScopeMeter test tools

Normally ships in 4-6 Weeks

$479.00 CAD

RS500 Probe Set

Provides replacements for the accessories found with the VPS510 series probes

Normally ships in 4-6 Weeks

$328.00 CAD

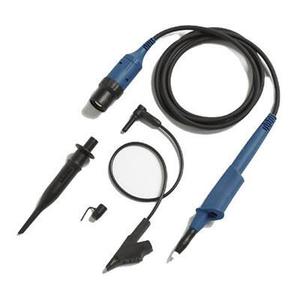

VPS410-B ScopeMeter Voltage Probe Set, 10:1, Blue

Probe-sets, 10:1, including hook clips, ground leads with mini alligator clips, ground springs and probe-tip insulation sleeves, available in blue

Normally ships in 4-6 Weeks

$341.00 CAD

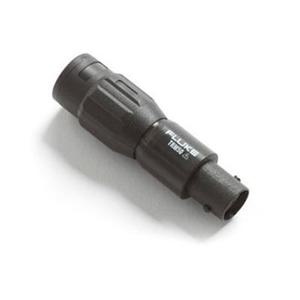

TRM50 Coaxial Feed-through BNC Male to BNC Female Cable Terminator

TRM50 coaxial feed-through BNC male to BNC female cable terminator

Normally ships in 4-6 Weeks

$358.00 CAD

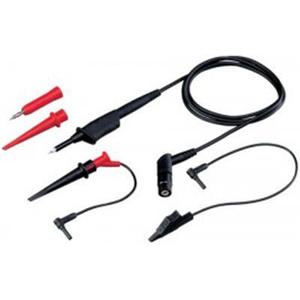

VPS101 Voltage Probe Set, 1:1 (one black)

Double insulated voltage probe for the Fluke 190 Series ScopeMeters

Normally ships in 4-6 Weeks

$358.00 CAD

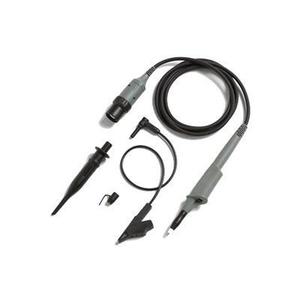

VPS410-II ScopeMeter Voltage Probe Set, 10:1

Ruggedized high-working industrial ScopeMeter voltage probe set, available in four colours

Normally ships in 4-6 Weeks

Starting At
$358.00 CAD

Configure

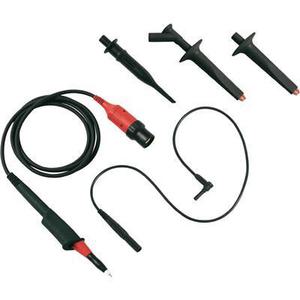

VPS420 ScopeMeter Voltage Probe Set, 100:1

Ruggedized high-working ScopeMeter voltage probe set, available in four colours

Normally ships in 4-6 Weeks

Call Today!

800-567-8686

Request Quote

VPS510 ScopeMeter Compact Probe, 10:1

ScopeMeter compact probe for electronic applications

Normally ships in 4-6 Weeks

Starting At
$358.00 CAD

Configure

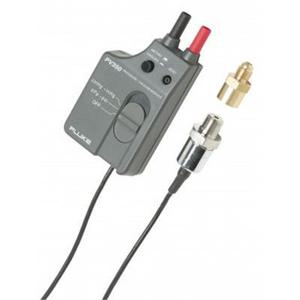

PV350 Pressure Vacuum Module

Digital pressure and vacuum measurements in a single module

Normally ships in 4-6 Weeks

Call Today!

800-567-8686

Configure

TL175 TwistGuard Test Leads

Quality test leads with adjustable length test tips for use in different measurement environments and increased safety

Normally ships in 4-6 Weeks

Starting At
$63.00 CAD

Configure

TL220 SureGrip Industrial Test Lead Set

This test lead set with test probes works in multiple electrical applications while the SureGrip feature is designed to do your work with comfort

Normally ships in 4-6 Weeks

$150.00 CAD

TL224 SureGrip Insulated Test Leads

These insulated test leads provide the convenience and variety for test lead configurations by attaching clips, hooks and grabbers as needed

Normally ships in 4-6 Weeks

$60.00 CAD

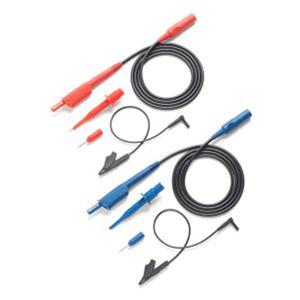

STL120-IV Shielded Test Leads

Set of two (one red, one gray) double insulated silicone shielded test leads for noise free measurements for use with Fluke ScopeMeter 120 Series

Normally ships in 4-6 Weeks

$272.00 CAD

TL910 Electronic Test Probe Set

Electronic test probe set with very small 1 mm tips to access hard to reach test points

Normally ships in 4-6 Weeks

$136.00 CAD

Fluke
190 Series III ScopeMeter Test Tool

Can We Help You?

Your Recently Viewed Items...

1507 Insulation Resistance Tester

SHOP

ALPHA NEWS

OUR SERVICES

SUPPORT

Specifications
	Fluke 190-504	Fluke 190-502	Fluke 190-204	Fluke 190-202	Fluke 190-104	Fluke 190-102	Fluke 190-062
Bandwidth	500 MHz	500 MHz	200 MHz	200 MHz	100 MHz	100 MHz	60 MHz
No. of Channels	4 channels	2 channels	4 channels	2 channels	4 channels	2 channels	2 channels
Real-Time Sample Rate	5 GS/s	5 GS/s	2.5 GS/s	2.5 GS/s	1.25 GS/s	1.25 GS/s	625 MS/s
Inputs	4 x BNC input for scope and meter measurements	2 x BNC input plus 1 x DMM input	4 x BNC input for scope and meter measurements	2 x BNC input plus 1 x DMM input	4 x BNC input for scope and meter measurements	2 x BNC input plus 1 x DMM input	2 x BNC input plus 1 x DMM input
Timebase Range	1 ns/div to 4s/div	1 ns/div to 4s/div	2 ns/div to 4s/div	2 ns/div to 4s/div	5 ns/div to 4s/div	5 ns/div to 4s/div	10 ns/div to 4s/div
Trigger Source	4 x BNC input	2 x BNC input or external via DMM input	4 x BNC input	2 x BNC input or external via DMM input	4 x BNC input	2 x BNC input or external via DMM input	2 x BNC input or external via DMM input
Independently- Floating Isolated Inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Input Sensitivity	2 mV - 100 V/div plus variable attentuation
Trigger Types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Glitch Capture	8 ns
Scope Measurements	Cursor: 7
Scope Measurements	Automatic: 30
Maximum Record Length	ScopeRecord mode: 30,000 pts per input
Maximum Record Length	Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare	Waveform reference with automatic Pass/Fail testing

Fluke 190 Series III ScopeMeter Test Tool

Can We Help You?

Your Recently Viewed Items...

1507 Insulation Resistance Tester

SHOP

ALPHA NEWS

OUR SERVICES

SUPPORT

Fluke
190 Series III ScopeMeter Test Tool
