2-5000 Minihelic II Differential Pressure Gage
Combines high accuracy, compactness, dependability, and low cost in an easy-to-read instrument
Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic® II gage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.
• Removable lens and rear-housing provides easy, cost-effective servicing
• Accuracy and value provides an excellent solution for OEM and user applications
• Durable housing materials make it well-suited for rough environments and total high pressure
| Service | Air and compatible gases |
| Wetted Materials | Consult us |
| Housing | Glass filled nylon; polycarbonate lens |
| Accuracy | ± 5% of FS at 70°F (21.1°C) |
| Pressure Limits | 30 PSIG (2.067 bar) continuous to either pressure connection |
| Temperature Limits | 20°F - 120°F (-6.67°C - 48.9°C) |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations |
| Process Connections | Barbed, for 3/16 in ID tubing (standard); 1/8 in male NPT (optional) |
| Weight | 6 oz (170.1g) |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II) |
| Caution: For use only with air or compatible non-corrosive gases |
• Room Positive Pressure Sensing
• Local Indication on Filter Status
Item
Description
Availability
Price
4 in straight static pressure tip with flange
Normally ships in 1-2 Weeks
$13.00 CAD
303 SS static pressure tip with mounting flange for 3/16 in ID rubber or plastic tubing
Normally ships in 1-2 Weeks
Starting At
$17.00 CAD
$17.00 CAD
Stand-hang bracket, aluminum, for Minihelic® II gage.
Normally ships in 3-4 Weeks
$41.00 CAD
Portable kit for Series 2-5000 Minihelic® II gage.
Normally ships in 3-4 Weeks
$90.00 CAD

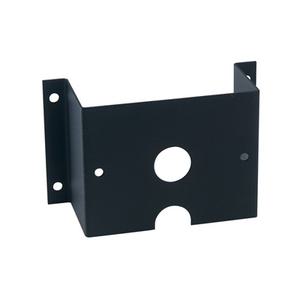

Mounting bracket for the Series 2-5000 Minihelic® II Differential Pressure Gage
Normally ships in 3-4 Weeks
$32.00 CAD
Air filter kit for Series 2-5000 Minihelic® II gage
Normally ships in 3-4 Weeks
$175.00 CAD
