2202 HU Hammer Union Pressure Transmitter

Durable hammer union pressure transmitter with a 2202 process connection built for the most punishing conditions

Starting At
$2,120.00 CAD
Normally ships in 2-3 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

To answer the need for a hammer union pressure transducer that could ship quickly and take the punishment, we designed one from the ground up. It's packed with useful features that make it the easiest to use and install. More importantly, it can handle the intense vibration and shock from being tossed around, hammered, and shaken in applications like Measurement While Drilling.

The 2202 HU ships faster and lasts longer than any competitor model, allowing you to focus on safely doing your job.

• Ranges to 20,000 psi
• 4-20 mA or 0-5 VDC output
• WECO® 2002/2202 fitting for 2” line
• Exceptional shock and vibration resistance
• ±0.25% accuracy of full scale
• CSA/ATEX/IECEx Approved

Accuracy 0.25% of full scale (BFSL)
Standard Pressure Ranges 0-20,000 psis
Overpressure 1.5 times full scale, 22.5 kpsi, or limit of WECO fitting, whichever is smallest
Burst Pressure 3 times full scale, 22.5 kpsi, or limit of WECO fitting, whichever is smallest
Compentased Temperature -40 - 65C (-40 - 150F)
Temp Effects on Zero & Span 0.026% FSO/C (0.01% FSO/F)
Life 10 million cycles minimum
Frequency Response Less than 5mS
Environmental
Storage Temperature -50 - 120C (-50 - 248F)
Operating Temperature -40 - 85C (-40 - 185F)
Enclosure Protection IP67
Connectivity
Output Signal @ 21C 4-20 mA: 3-30 mA max
0-5 VDC: 110 mA inrush current
0-5 VDC: 3.5 mA operating current
Electrical
Supply Voltage 10-28 VDC on sensor
Loop Resistance 1012 ohms @ 28 VDC decreasing linearly to 0 ohms @ 10 VDC
Insulation Resistance >100 megaohms @ 500 VAC,70C
Shunt Cal 100% of full scale output
Physical
Wetted Materials Conforms to NACE MR-01-75 and ISO 15156-3 standards
Certification
CSA/cCSAus Contract #237484
IS Class 1, Division 1; Groups C & D
Class 1, Zone 0, AEx ia IIB T4
Ex ia IIB T4
Ambient: -40 - 85C
ATEX 4-20 mA
CE 0344 EX II 1G Ex ia IIB T4 Ga
(Ta = -40C to +85C)
ICEx 4-20 mA
EX ia IIB T4 Ga (Ta= -40C to +85C)

• Oil and Gas Drilling
• Measurement While Drilling
• Cementing
• Mud Pumps / Mud Logging
• Fracturing
• Acidizing
• Standpipe
• Stimulation
• Well Head Measurement
• Choke and Kill
• Coiled Tubing

Item
Description
Availability
Price
509069 Mating Connector 4 Pin MS3102
Mating connector 4 pin MS3102
Normally ships in 2-3 Weeks
$129.60 CAD
PS-12V 12 VDC Power Supply
12VDC power supply, 86-265 VAC Input, 15 Watt supply
Normally ships in 2-3 Weeks
$62.24 CAD
PS-24V 24VDC Power Supply
24VDC power supply, 86-265 VAC Input, 15 Watt supply
Normally ships in 2-3 Weeks
$62.24 CAD

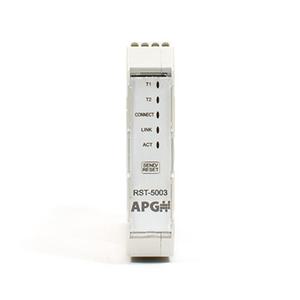

RST-5003 Web Enabled Control Modules
Connects up to 10 Modbus sensors in a daisy-chain network or a single 4-20 mA sensor to Tank Cloud
Normally ships in 2-3 Weeks
Starting At
$460.13 CAD
Configure
