2271A Industrial Pressure Calibrator

Industrial Pressure Calibrator Chassis

Starting at

$24,591.00CAD

Have questions? We're here to help!

Call

Configure

Used in

2271 A Industrial Pressure Calibrator 11584

2271 A Industrial Pressure Calibrator 214bf

2271 A Industrial Pressure Calibrator a73f8

2271 A Industrial Pressure Calibrator d4760

The Fluke Calibration 2271A Industrial Pressure Calibrator provides a complete, automated pressure testing solution for calibrating a wide variety of pressure gauges and sensors. Thanks to its modular design, it can be configured to meet different needs and budgets, and expanded to cover a broad workload.

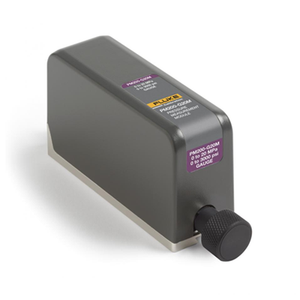

The 2271A is compatible with modules at two different accuracy classes, to provide maximum flexibility in workload and budget. The PM200 modules provide 0.02% FS for most ranges (see specification tab for details). The PM500 modules provide 0.01% Reading, allowing the 2271A to be used to test or calibrate higher accuracy transmitters and digital gauges.

The 2271A is ideal for calibration laboratories starting out in pressure calibration because it offers wide pressure measurement capabilities in a single instrument. Everything you need for calibrating pressure is included; just connect supply pressure. And your investment will stand the test of time: as your workload grows and changes, the 2271A can grow and change too. Just add measurement modules.

The 2271A automated pressure testing solution is also a great fit for labs that currently calibrate pressure transmitters and gauges and want to expand their capabilities or make their processes more efficient. This instrument is easy to set up and use, so you don’t have to reserve it for your most experienced technicians. The built in electrical measurement and programmable tasks provide full automation, helping your lab run more efficiently.

If you are concerned about contamination from workload coming in from the field, the 2271A is a good choice for you as well. Its optional Contamination Prevention System (CPS) provides an important safeguard against that pervasive hazard.

A graphical user interface in your choice of ten languages and an intuitive menu structure, as well as an intuitive hardware design, make the 2271A remarkably easy to learn and to use.

• Calibrate a wide range of gauges and sensors with a single instrument

• Two levels of accuracy, 0.01% reading or 0.02% FS

• Wide measurement range from -100 kPa to 20 MPa (-15 to 3000 psi)

• Removable pressure measurement modules make it easy to change or add measurement ranges

• Integrated electrical measurement module with HART communication provides a complete solution for calibrating pressure transmitters

• Built-in dual test ports enable you to connect multiple devices under test (DUTs)

• Localized graphical user interface in choice of ten languages

Environment
Operating Ambient Temperature Range	15 °C to 35 °C
Storage temperature	-20 °C to 70 °C
Relative Humidity	Operating: <80 % to 30 °C, <70 % to 35 °C Storage: <95 %, non-condensing. A power stabilization period of four days may be required after extended storage at high temperature and humidity.
Vibration	MIL-T-28800D CLASS 3
Altitude (Operation)	<2000 m
Warmup time	15 minutes after power up or module installation, when items previously stored within operating ambient temperature
Electromagnetic compatibility (EMC)
International	IEC 61326-1: Controlled Electromagnetic Environment
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Compliance
Ingress protection	IEC 60529: IP20
Safety	IEC 61010-1, Installation Category II, Pollution degree 2
Dimensions and weights
Dimensions
Height	2271A-NPT-STD 305 mm (12 in) 2271A-BSP-STD 305 mm (12 in) 2271A-NPT-P3000 237 mm (9.33 in) 2271A-BSP-P3000 237 mm (9.33 in)
Width	442 mm (17.40 in)
Depth	446 mm (17.55 in)
Weight
Chassis only	15 kg (33.06 lbs)
Communication interfaces
Primary remote interfaces	Ethernet, RS232, USB
Electrical Measurement Module (EMM) Connection	Banana jack Maximum 30 V dc w.r.t. chassis ground
Aux drivers	4 external Solenoid Drivers 24 V dc. 100 % duty cycle when turned, reducing to 40 % shortly after.
PM200-BG2.5K	0.005 % Range Span
PM500 <20 kPa full scale	0.002 % Range Span
All other ranges	0.001 % Range Span
Control turndown	10:1 (typical)
	To meet the control specifications, supply pressure should not be greater than 10 times the range of the measurement module. Control turndown is defined as the relationship between the provided supply pressure and the appropriate supply pressure for the range. For example, a unit with a 7 MPa (1000 psi) and 700 kPa range (100 psi) with a supply pressure of 7.7 MPa (1100 psi) provides control precision of 0.001 % range because 7 MPa is 10 times greater than 700 kPa. A system with ranges of 20 MPa (3000 psi) and 700 kPa (100 psi) with supply pressure of 22 MPa (3300 psi) will have 0.001 % range control precision on the 20 MPa range but only 0.003 % control precision on the 700 kPa range. Control precision of 0.001 % on the low range can be achievedby reducing the supply pressure.
HART Commands	HART universal and common practice commands (no device specific commands)
Write Protection	HART Write enable/disable
Low Control Point	1 kPa (0.15 psi) absolute
Settling Time (typical)
PM200-BG2.5K	40 seconds
All other PM200 ranges	20 seconds
PM500 £20 kPa Full Scale	45 seconds
PM500 >20 kPa Full Scale	30 seconds
	Typical settling time is the time required to be within 0.005 % of the setpoint for 10 % steps into volumes of 0 to 50 cm3 and pressures above 50 kPa (7.25 psi) absolute. Lower absolute pressures require longer settling times depending upon quality of the vacuum pump, diameter and material of tubing used, and test volume.
Typical settling time is the time required to be within 0.005 % of the setpoint for 10 % steps into volumes of 0 to 50 cm3 and pressures above 50 kPa (7.25 psi) absolute. Lower absolute pressures require longer settling times depending upon quality o	0.02 % Range Span
Pressure Limits
Working Pressure Range	-97.90 kPa (-14.2 psi) gauge to 20 MPa (3000 psi) gauge
Supply Port	23 MPa (3300 psi) gauge
Test Port	20 MPa (3000 psi) absolute
Reference Port	115 kPa (17 psi) absolute
Vent Port	150 kPa (22 psi) absolute
Relief Valves
	Chassis Supply port relief valve is set to 24.1 MPa (-0/+700 kPa), 3500 psi (-0/+100 psi)
	Exhaust port relief valve is set to ~830 kPa (120 psi).
	Each Pressure Measurement Module (PMM) includes a module-specific pressure protection device.
Supply Gas Type
	Clean Dry Air or Nitrogen (Industrial Grade, 99.5 %)
Maximum Particulate Contamination	≤1.25 micrometer (50 microinches)
Maximum Moisture Content	-50 °C dew point
Maximum Hydrocarbon Content	30 ppm
Vacuum Supply
	>50 liters per minute capacity with Auto Vent feature
	Exhaust gas will pass through the vacuum supply. Appropriate protections should be taken when operating at higher pressures.
Source
Loop Compliance Voltage	³24 V dc @ 20 mA (without 250 W built in resistor)
	³19 V dc @ 20 mA (with 250 W built in resistor)
Switch Testing
Current Limits	£4 mA
Conditions	Closed >1.5 mA, Open <0.5 mA
HART Communication and Functions
HART Modes	HART mA measurement with 24 V (Loop)
Automatic HART Detection	HART connected with automatic polling
HART Selectable Resistor	Built-in 250 W loop resistor. Selectable ON/OFF
General specifications
Mains
Power requirements	100 V ac to 240 V ac, 47 Hz to 63 Hz
Fuse	T2A 250 V ac
Max power consumption	100 W
