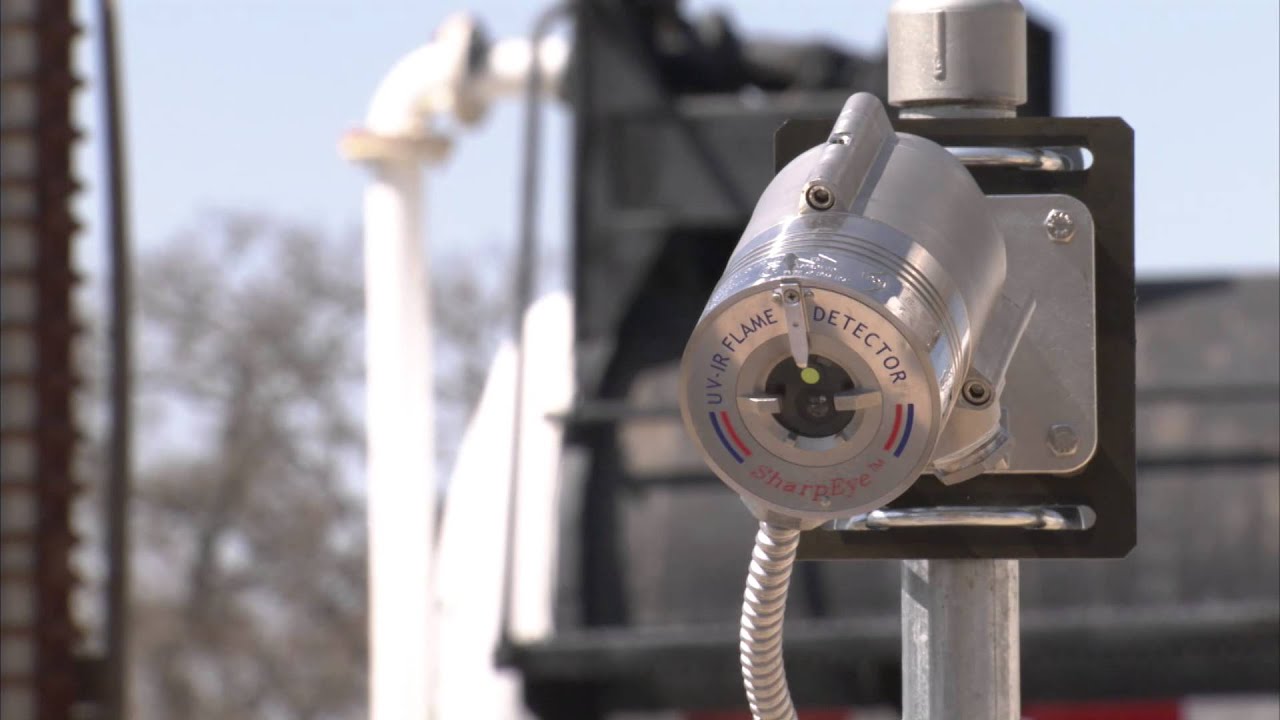

40/40M Multi IR Flame Detector
Detects hydrocarbon-based fuel and gas fires at long distances with the highest immunity to false alarms, 5 year warranty
This product is obsolete and has been replaced by:
40/40C-M SharpEye
Can We Help You?
Our product experts are here to help you find the right solution for your application!The 40/40M Multi IR Flame Detector is specifically designed for detection of hydrocarbon and hydrogen flames. It detects hydrocarbon-based fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40M can detect a gasoline pan fire at 215 ft (65m) or a hydrogen flame at 125 ft (38m) in less than 5 seconds.
The 40/40M is the most durable and weather resistant flame detector currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, lower power requirements, and a compact, lighter design.
• Multi spectrum design - for long distance detection of hydrocarbons and hydrogen flames
• High false alarm immunity
• Sensitivity selection - to ensure no zone crossover detection
• Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
• Heated window - for operation in harsh weather conditions (snow, ice, condensation)
• Multiple output options for maximum flexibility and compatibility
- Relays (3) for Alarm, Fault and Auxiliary
- 0-20mA (stepped)
- HART Protocol for maintenance and asset management
- RS-485, Modbus Compatible
• High Reliability - MTBF - minimum 150,000 hours
• Approved to Safety Integrity Level 2 (SIL2 - TUV)
• 5-Year Warranty
• User Programmable via HART or RS-485
• Hazardous area zones:
- Zones 1 & 2 with IIC gas group vapors present
- Zones 21 & 22 with IIIC dust type present
• Ex approved to:
- ATEX & IECEx
- FM/FMC/CSA
• 3rd party Performance tested
- EN54-10 (VdS)
- FM3260
| Spectral Response | Multi IR Bands |
| Detection Range (at highest Sensitivity Setting for 1ft2 (0.1m2) pan fire) | Fuel ft / m n-Heptane 215 / 65 Gasoline 215 / 65 Diesel Fuel 150 / 45 JP5 150 / 45 Kerosene 150 / 45 Ethanol 95% 135 / 40 Methanol 115 / 35 IPA (Isopropyl Alcohol) 135 / 40 Hydrogen* 125 / 38 Methane* 150 / 45 LPG* 150 / 45 Polypropylene Pellets 115 / 35 Ammonia** 60 / 18 Silane** 7 / 2 Office Paper 82 / 25 *30" (0.75m) high, 10" (0.25m) width plume fire **20" (0.5m) high, 8" (0.2m) width plume fire |
| Response Time | Typically 5 seconds |
| Adjustable Time Delay | Up to 30 seconds |
| Sensitivity Ranges | 4 Sensitive ranges for 1 ft2 (0.1m2) n-heptane pan fire from 50 ft (15m) to 215 ft (65m) |
| Field of View | Horizontal 67°, Vertical 70° for Gasoline Horizontal 80°, Vertical 80° for Hydrogen |
| Built-in-Test (BIT) | Automatic (and Manual) |
| Temperature Range | Operating: -67ºF to +167ºF (-55ºC to +75ºC) Option: -67ºF to +185ºF (-55ºC to +85ºC) Storage: -67ºF to +185ºF (-55ºC to +85ºC) |
| Humidity | Up to 95% non-condensing - withstands up to 100% RH for short periods |
| Heated Optics | To eliminate condensation and icing on the window |
Hazardous Area Ex Approvals: ATEX approval remark , IECEx approval remark , FM approval remark , CSA approval remark , CU TR approval remark , CIMFR approval remark
Functional Approvals: FM approval remark , EN54-10 approval remark , CPD approval remark
Reliability Approvals: SIL2 approval remark
Other Approvals: ABS approval remark , CAL FIRE approval remark , AFP approval remark
