472A-1 Dual Input Thermocouple Thermometer

Measures up to two temperature measurements simultaneously

Buy now!

$213.60CAD

Have questions? We're here to help!

Have questions? We're here to help!

QTY

Used in

472 A 1 Dual Input Thermocouple Thermometer 02397

472 A 1 Dual Input Thermocouple Thermometer 02397

The Model 472A-1 Dual Input Thermocouple Thermometer precisely measures up to two temperature measurements simultaneously. The large LCD display shows both temperature inputs or one temperature input and the differential temperature. Any J, K, or T type thermocouple with a mini-jack connector can be used as an input. For viewing in poorly lit environments, the built-in back light brightens the display. A hold button allows the user to freeze temperature data displayed. Minimum and maximum readings can be recorded over a set time period. Model 472A-1 includes a hard carrying case, battery, and one K type thermocouple.

Inputs	Type J, K, T thermocouples
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable
Ranges	J-type: -328°F - 1400°F (-200°C - 760°C); K-type: -328°F - 2498°F (-200°C - 1370°C); T-type: -328°F - 734°F (-200°C - 390°C)
Accuracy	± 0.13% reading + 1.4°F + 0.006°/°F below 1000°F
Temperature Limits	32°F - 122°F (0°C - 50°C)
Humidity Limits (Non-Condensing)	0% - 85% relative humidity
Display	Triple LCD display
Resolution	0.1°C up to 500°C
Weight	23.6 oz
Agency Approval	CE

Download
Manual - 472A-1 Dual Input Thermocouple Thermometer
Download
Download
Data Sheet - 472A-1 Dual Input Thermocouple Thermometer
Download

Accessories

Dwyer
472A-B Rubber boot
Rubber boot
Buy now!
$15.68 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1718-0001 J type thermocouple
J type thermocouple
Buy now!
$269.55 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1718-0002 K type thermocouple with integral handle
K type thermocouple with integral handle
Buy now!
$295.68 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1718-0014 Penetration probe, fixed, J type thermocouple
Penetration probe, fixed, J type thermocouple
Buy now!
$242.14 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1718-0015 Penetration probe, fixed, K type thermocouple
Penetration probe, fixed, K type thermocouple
Buy now!
$232.90 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1718-0077 Master probe handle, K type thermocouple.
Master probe handle, K type thermocouple.
Buy now!
$360.11 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer

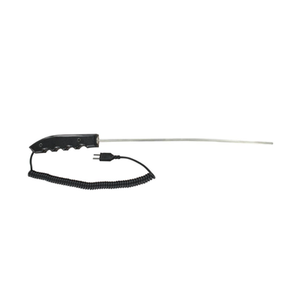

1818-0074 Immersion probe, K type thermocouple.
Immersion probe, K type thermocouple.
Buy now!
$149.99 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1818-0078 Penetration probe, K type thermocouple.
Penetration probe, K type thermocouple.
Buy now!
$137.53 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer

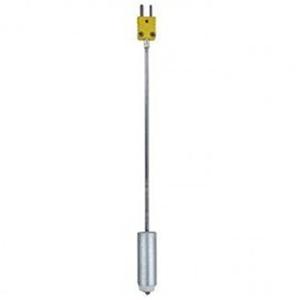

1818-0082 Surface probe, K type thermocouple.
Surface probe, K type thermocouple.
Buy now!
$428.34 CAD
Normally ships in 3-4 weeks
QTY:
Dwyer
1818-0085 Air duct probe, K type thermocouple.
Air duct probe, K type thermocouple.
Buy now!
$237.27 CAD
Normally ships in 3-4 weeks
QTY:
