490W Wireless Hydronic Differential Pressure Manometer
The most accurate and easy to operate manometer on the market
The Series 490W Wireless Hydronic Differential Pressure Manometer is the most accurate and easy to operate manometer on the market. By using wireless transducers and a mobile device, a single operator can monitor and balance a hydronic system in less time than traditional hydronic balancers. The Series 490W transducers connect wirelessly to a UHH6 or newer handheld device, or your own mobile device, to monitor differential pressure and flow on up to three different valves. Being wireless, there are no hoses to carry, snag on equipment or needing to be drained. The 490W utilizes Dwyer’s hydronic application software that contains valve charts for numerous manufacturers, which converts differential pressure to flow directly on the screen.
490W HKIT includes:
Pressure transducers (2 per kit) with case
Installation and operating manual (IOM)
1/4" SAE 45° x 1/4" female NPTF straight adapter (2 per kit)
1/4" female NPT x 1/4" male NPT elbow fitting (2 per kit)
Piercing gauge adapters (2 per size/6 per kit) - 1/8" dia x 1-1/2" length; 1/8" dia x 3" length; 1/16" x 1-1/2" length
1/4˝ female NPT x 1/4˝ quick connect coupler (2 per kit)
4 pack AAA batteries
490W hard carrying case
• Rugged weatherproof handheld housing withstands 1.5 m drop test.
• Wireless measurement of differential pressure, single pressure and air flow.
• Bluetooth direct wireless communication provides range up to 65' (19.8 m).
• The ergonomic design is much lighter and easier to work with, providing greater maneuverability and quick install setup.
| Wireless Distance: | Up to 65' (19.8 m). |
| Service: | Compatible gases & liquids. |
| Wetted Materials: | 316 SS, PTFE, brass. |
| Accuracy: | 2% of reading, ±0.5 psi. |
| Compensated Temperature Range: | 14 to 140°F (-10 to 60°C). |
| Pressure Hysteresis: | ±0.25% FS. |
| Pressure Range: | See chart. |
| Process Temperature Limits: | -4 to 185°F (-20 to 85°C). |
| Display: | 5" Gorrillaź glass 3, touch screen, 1280x720. |
| Resolution: | 0.01 psi. |
| Process Connections: | Two 1/4" male NPT. |
| Power Requirements: | CR2050 or CR2032 lithium battery, user replaceable. |
| Weight: | 2 lb (907 g). |
| Agency Approvals: | CE, FCC. |
• Refrigerant pressure testing
• Hydronic valve balancing
• Measure pressure drop across pumps
• Measure pressure drop across chiller and coils for freeze protection
Item
Description
Availability
Price

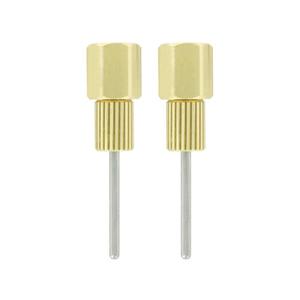

Pressure test plug adapter for the 490A-HKIT, 1/8" dia x 1-1/2" length (2)
Normally ships in 3-4 Weeks
$191.00 CAD

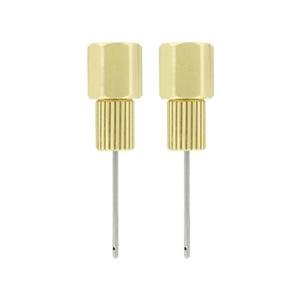

Pressure test plug adapter for the 490A-HKIT, 1/16˝ dia x 1-1/2˝ length (2 per kit)
Normally ships in 3-4 Weeks
$276.00 CAD

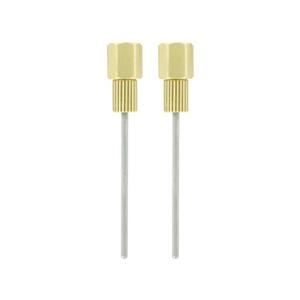

Pressure test plug adapter for the 490A-HKIT, 1/8˝ dia x 3˝ length (2 per kit)
Normally ships in 3-4 Weeks
$340.00 CAD

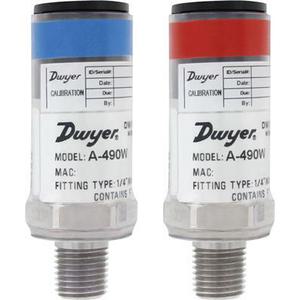

Replacement Sensor for 490W-6-HKIT
Normally ships in 2-3 Weeks
$4,169.00 CAD
Universal handheld test device with software
Normally ships in 3-4 Weeks
$727.00 CAD
View All Part Numbers
