PIE

525B Thermocouple & RTD Calibrator

Automated, high accuracy meter calibrates multiple thermocouple and RTD types


$2,159.00 CAD
Normally ships in 1-2 Weeks


  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

PIE is pleased to introduce the New Model 525B which replaces the PIE Model 525. This moves their Dual Thermocouple & RTD calibrator to the PIE Evolution enclosure with a rubber boot, tilt stand, 4 “AA” batteries and backlit display. Not only did they move the product into the new enclosure, they also made a number of other improvements:

• Increased number of T/C types from 10 to 14
• Added RTD types for Platinum 10, 50, 200 & 500 Ohm for the 1.3850 (IEC 751/DIN) curve
• More accurate & stable cold junction compensation
• Secondary display
• Troubleshoot RTD Sensors & Instruments

• Calibrate T/C instruments to 0.1 & 0.01 °F & °C
  - Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel): -13.000 to 80.000 mV
• Calibrate RTD instruments to 0.1 & 0.01 °F & °C
  - Pt 10, 50, 100, 200, 500 & 1000 Ohm (3850)
  - Pt 100 Ohm (alpha=3902, 3916, 3926)
  - Cu 10 & 50 Ohm and Ni 120 Ohm

• Calibrate with Confidence
• Perform Heat Treating Surveys & Accuracy Tests
• Troubleshoot RTD Sensors & Instruments
• Faster Calibrations
• Easily Change T/C Types & Scale
• Use in the Plant, Field or Shop
 • Easy-to-Read Display
• Simple "No Tool" Battery Changes
• Verify Resistance, Cold Junction Temperature & Output

Item
Description
Availability
Price
For use with any PIE Calibrator with 4 “AA” batteries , externally charges batteries before installing in calibrator
Normally ships in 1-2 Weeks
$108.00 CAD
Supports the calibrator from any ferrous surface such as an equipment cabinet or rack, for any PIE calibrator
Normally ships in 1-2 Weeks
$26.00 CAD

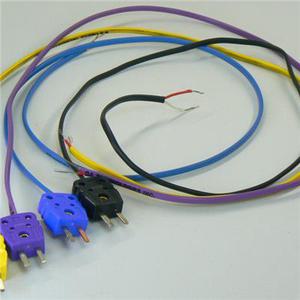

Wires with miniature thermocouple plug on one end and bare leads on the other end, for any PIE Calibrator with thermocouple input
Normally ships in 1-2 Weeks
$196.00 CAD
Wires with miniature thermocouple plug on one end and bare leads on the other end, for any PIE Calibrator with thermocouple input
Normally ships in 1-2 Weeks
$196.00 CAD
