Practical Instrument Electronics

532 Loop Calibrator

4-20 mA/Voltage Loop Calibrator with Loop Diagnostics

Buy now!
$3,082.95CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
532 Loop Calibrator 00627

The Practical Instrument Electronics (PIE) Model 532 is the best tool for calibration, test, and diagnosing process loops. The Model 532 brings all the features you would expect from a loop calibrator plus troubleshooting tools! Make adjustments with the EZ-Dial™ knob or test limits with the Dual Action EZ-Check™ switch. Powerful ramping functions are only a button away on the Model 532. Save potentially hours of troubleshooting time on problem loops with the Model 532’s unique Loop Diagnostic Mode, only available at PIE! In Loop Diagnostic Mode, the loop current, voltage, impedance, AC voltage, and mode of operation are all displayed simultaneously eliminating the need of a DMM connection. Loop diagnostics is available in every mode of operation and truly is a diagnostic monitor, as parameters are continuously updated in real time. The smart diagnostic tool even indicates the most likely cause of loop failure! Loop Diagnostic features the ability to measure ground fault error caused by faulty wiring, flooded conduit and corrosion bridges.

• True +/- 0.012% of reading accuracy
• Source and Read 0.000-24.000 mA
• Simulate 2-Wire Transmitters
• Power 2-Wire Transmitters and Read 0.000 - 24.000mA
• Display current in mA or -25.00-125.00 % of 4-20 mA
• Read 0.00 to ± 30.00 VDC with 4X over range ability
• Source 0.000 to 24.000 VDC with up to 20 mA output
• Direct Calibration 1.000 V to 5.000 V
• Auto Step or Ramp
• Selectable step sizes, time in-between steps & soak time
• Stop watch like EZ-Check™ switch
• Full 5 Digit Display
• Uses 1 – 9Volt alkaline battery
• Superior battery life of 40 hours under typical continuous usage
• Easy access to battery compartment
• 240 VAC Tolerant
• HART® protocol compatibility mode
• Power on selectable 250Ω resistor in series with the output for compatibility with HART® protocol enabled devices.

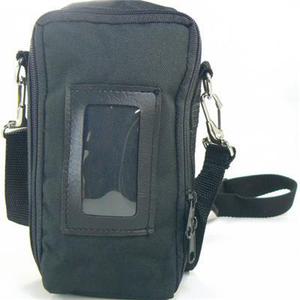

• AC adaptor, carrying case, and Test Data available
• NIST Traceable Calibration Certificate included FREE

Operating Temperature Range-20 to 60 °C (-5 to 140 °F)
Storage Temperature Range-30 to 60 °C (-22 to 140 °F)
Relative Humidity Range10 % ≤RH ≤90 % (0 to 35 °C), Non-condensing
10 % ≤RH≤ 70 % (35 to 60 °C), Non-condensing
Size7.00 X 3.30 X 2.21 inches (177.8 x 83.8 x 56.1mm)
Weight12.0 oz (340 grams)
Battery9V Alkaline
Optional 120/220 VAC 50/60 Hz AC adaptors available
MiscellaneousLow battery indication with nominal 1 hour of operation left
Over-voltage protection to 120 Vrms (rated for 30 seconds) or 240 Vrms (rated for 15 seconds)
Bar graph display with 1% resolution of 4-20 mA signal scale
High contrast graphic liquid crystal display with 0.45” (11.4 mm) high digits

Troubleshoot 4 to 20 milliamp loops with PIE Calibrator Loop Diagnostics
