5606 Full Immersion Platinum Resistance Thermometer

Designed to withstand a wide-range of environmental temperatures including laboratory freezers, autoclaves, and furnaces

Starting At
$592.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The 5606 Full Immersion PRTs are designed to perform in extreme environments where both the transition junction and the lead wires are required to withstand temperatures covering the entire operating range of the probe.

The 5606 is just two inches (50 mm) in length with a sheath diameter of 1/8 inch (3.1 mm). Since it can be fully immersed over its entire temperature range, you don’t have to worry about calculating minimum immersion depth — immerse the entire probe, transition junction, and lead wires, in either non-corrosive liquids or dry mediums ranging from –200°C - 160°C.

The 100 Ω precision sensing element (α = 0.00385) is specially constructed to prevent the ingress of moisture while achieving calibration accuracies as good as +/- 0.05°C. You get both accuracy and flexibility built into a small, durable package.

The lead wires of the 5606 are made of single-conductor enameled copper wire which prevents moisture from wicking to the sensing element as it would if a more common, stranded lead wire were used. The diameter of the lead wire is no greater than 0.2 mm, making it easy to run lead wires through a freezer door to your readout or transmitter with effectively zero energy loss. The 5606 has been proven in common heat transfer fluids such as silicone oil, mineral oil, ethanol, and even liquid nitrogen with no degradation of the transition junction seal or lead wire insulation.

• Operates over a large environmental temperature range of -200°C - 160°C
• Calibration accuracy of +/- 0.05°C
• Transition junction and lead wires can withstand full PRT temperature range
• Unique probe seal of 5606 prevents ingress of moisture
• Calibration not included; NVLAP-accredited calibration optionalo withstand temperatures covering the entire operating range of the probe

Temperature Range -200C - 160C
Nominal Resistance at 0.01C 100 Ω +/- 0.1 Ω
Temperature Coefficient 0.00385 Ω/Ω/C
Accuracy[1] +/- 0.04C at 0.01C
+/- 0.06C at 160C
Short-Term Repeatability[2] +/- 0.03C at 0.01C
+/- 0.04C at 160C
Drift[3] +/- 0.03C at 0.01C
+/- 0.04C at 160C
Hysteresis +/- 0.015C
Sheath Length 50 mm +/- 5 mm (2 in +/- 0.2 in)
Sheath Diameter 3.1 mm +/- 0.1 mm (1/8 in +/- 0.004 in)
Sheath Material 316 SST
Transition Junction Temperature Range[4] -200C - 160C
Sensor Length 30 mm +/- 3mm (1.2 in +/- 0.1 in)
Sensor Location 3 mm +/- 1 mm from tip (1.2 in +/- 0.04 in)
Minimum Insulation Resistance 20 MΩ at 23C
Minimum Immersion Length Full immersion
Maximum Immersion Depth in Liquid Medium Full immersion
Response Time[5] 12 s (typical)
Self Heating (in 0C Bath) +/- 0.003C
Lead-Wire Cable Type Enameled copper wire
Lead-Wire Length 2.4 m (8 ft)
Lead-Wire Temperature Range 160C
Calibration Calibration not included
[1] Includes calibration and 100 hr drift (k = 2).
[2] Three thermal cycles from min to max temp, includes hysteresis, 95 % confidence (k = 2).
[3] After 100 hours at max temp, 95 % confidence (k = 2).
[4] Temperatures outside this range will cause irreparable damage.
[5] Per ASTM E 644
Item
Description
Availability
Price

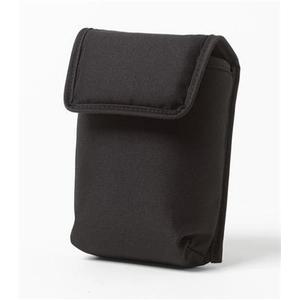

2603 Small Probe Carrying Case
