Fluke Calibration

5618B Small Diameter Industrial Resistance Temperature D...

Secondary level performance with full ITS-90 calibration

Starting At
$1,769.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

For secondary level performance with full ITS-90 calibration, Fluke Calibration’s 5618B series PRTs are an excellent choice for critical temperature measurements. Featuring a 3.2 mm diameter (1/8 in) sheath, these industrial standards probes have reduced response time without compromising precision. This small diameter 5618A probe works well in many applications where immersion depth is limited. Larger diameter probes give more measurement error in short immersion depth applications because they conduct more heat between ambient and the sensor.

For use from -200°C - 500°C (the six-inch model goes to 300°C), you won’t find a better industrial standard in this configuration than our 5618B. We recommend using the 5618B PRTs with the 1523, 1524, 1502A, 1529, or 1560 thermometer readouts.

The 5618B is also a great probe to use for calibrating your Fluke Calibration 9132 or 9133 infrared calibrators. In fact, these IR black body heat sources were designed to be calibrated with this type of probe. Now you can calibrate these targets in your own lab!

With each probe you will receive a full NVLAP-accredited calibration report. On the report you’ll get the test data and the ITS-90 calibration coefficients that you can easily input into your Fluke Calibration thermometer.

• Small diameter sheath, 3.2mm (0.125 in)
• Excellent stability
• Includes ITS-90 coefficients

Resistance Nominal 100 Ω at 0C
Temperature Coefficient 0.003923 Ω/Ω/C nominal
Temperature Range -200C - 500C
(-200C - 300C for 5618B-6-X)
Drift Rate +/- 0.1C when used periodically to 500C
Sheath Material 316 SST
Leads 22 AWG PTFE, 6'
Termination Specify
Hysteresis Less than 0.01C at 0C when using -196C and
420C as the end points.
Time Constant Four seconds maximum for 63.2% response to step change in water moving at 3 fps.
Thermal EMF Less than 25 mV at 420C
Calibration Includes manufacturer's NVLAP-accredited
calibration with ITS-90 coefficients, R vs. T values in
1C increments
Size (L x dia) 5618B-12: 305 mm x 3.2 mm (12 in x 1/8 in)
5618B-9: 229 mm x 3.2 mm (9 in x 1/8 in)
5618B-6: 152 mm x 3.2 mm (6 in x 1/8 in)
Calibrated Accuracy (k = 2) +/- 0.026C at -200C
+/- 0.066C at 0C
+/- 0.219C at 500C
Includes calibration uncertainty and drift specification.
Item
Description
Availability
Price

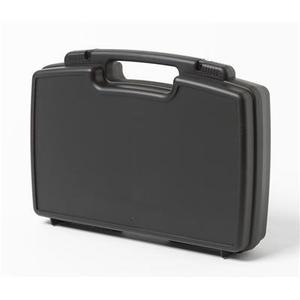

2601 Probe Carrying Care
Plastic probe carrying case for probes up to 228 mm (9 in) in length
Normally ships in 1-2 Weeks
$205.00 CAD
2609 Probe Carrying Care
Plastic probe carrying case for probes 635 mm (25 in) in length
Normally ships in 1-2 Weeks
$301.00 CAD
