Buy now! $1,964.19CAD
Fluke

709 Precision Loop Calibrator

Provides resolution of 1 µA on mA ranges & 1 mV on voltage ranges, accuracy at 0.01% reading , 24 V DC loop power w/ mA measure mode

Buy now!
$1,964.19CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
709 Precision Loop Calibrator 02306

The Fluke 709 mA loop calibrator is designed to reduce the time it takes to measure or source voltage or current and power up a loop and still produce high-quality results. The Fluke 709 is built around a user friendly interface with a quick-set rotary encoder knob and best in class accuracy at 0.01% of reading. It features a protective holster that fits easily in a technician's hand and a large backlit display that is easy to read, even in dark, cramped work areas. So it's a great choice anywhere you need a compact, rich featured precision loop calibrator.

• mA precision loop calibrator with best-in-class accuracy at 0.01% reading
• Provides intuitive user interface with quick-set rotary encoder knob for fast setup
• Includes built in selectable 250 Ω resistor for HART communication
• Features 24 V DC loop power with mA Measure Mode (-25% to 125%)
• Requires only simple two wire connection for all measurements
• Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
• Features a compact rugged design and runs on 6 standard AAA batteries
• Provides Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
• Offers variable step and ramp time in seconds
• Provides adjustable span selection (0 to 20 mA or 4 to 20 mA)
• Includes valve test functionality (simulates defined mA values with % keys)

FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read
RangesmA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution1 µA on mA ranges and 1 mV on voltage range
Accuracy0.01% ± 2 counts, all ranges (@23°± 5°C)
Operating Temperature Range-10°C to 55°C (14°F to 131°F)
Humidity Range10 to 95% non-condensing
Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display128 x 64 pixels, LCD graphic w/backlight, .34 high digits
Power6 AAA alkaline
Battery Life40 hours typical
Loop Compliance Voltage24 V DC @ 20 mA
Over-Voltage Protection240 V AC
Overload Current Protection28 mA DC
EMCEN61326 Annex A (Portable Instruments)
Dimensions (L x W x D)15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight0.3 kg (9.5 oz)
Included AccessoriesNIST traceable calibration certificate with data, batteries, test leads, and manual
WarrantyOne year
  • Thumbnail of document Data Sheet - 709 Precision Loop Calibrator
    Download

    Data Sheet - 709 Precision Loop Calibrator

    Download
  • Thumbnail of document Manual - 709 Precision Loop Calibrator
    Download

    Manual - 709 Precision Loop Calibrator

    Download

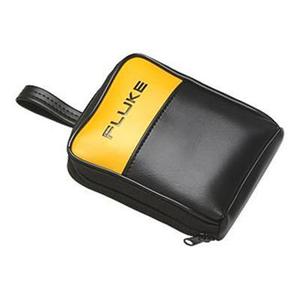

Accessories
