Fluke

712B RTD Calibrator

Highly accurate, easy-to-use, single function RTD temperature calibrator


$1,818.00 CAD
Normally ships in 4-6 Weeks


  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function RTD temperature calibrator the Fluke 712B is the ideal test tool.

Comes with a magnetic hanging tool, batteries, test leads, traceable calibration certificate, and manual.

• The 712B can measure and simulate thirteen (13) different RTD types and resistance
• Measure 4 - 20 mA signals while simultaneously sourcing a temperature signal
• Hanging tool designed in and included with every unit
• Configurable 0% and 100% source settings for quick 25% linearity checks
• Linear ramp and 25% step auto ramp based on 0% and 100% settings
• Dual inputs and backlit display for easy interpretation of measurements
• Power down settings remembered at power up for easy restart of tests
• 1 year and 2 year specifications and traceable certificate of calibration

General Specifications

Maximum Voltage Applied Between Any Terminal and Earth Ground or Between Any Two Terminals

30 V

Temperature

Operating

-10°C - 50°C

Storage

- 30°C - 60°C

Altitude

Operating

2,000 m

Storage

12,000 m

Relative Humidity (% RH Operating Without Condensation)

Non condensing

90% (10°C - 30°C)

75% (30°C - 40°C)

45% (40°C - 50°C)

(Without condensation)

Vibration Requirements

MIL-T-28800E, Class 2

Drop Text Requirements

1 m

IP Rating

IEC 60529: IP52

Electromagnetic Environment

IEC 61326-1, Portable

Safety

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

Power Supply

4 AA NEDA 1.5A IEC LR6 batteries

Size (H x W x L)

52.5 mm x 84 mm x 188.5 mm

Weight

515 g



DC mA Measurement

Resolution

0 mA - 24 mA

Range

0.001 mA

Accuracy (% of Reading + Counts)

0.010% + 2 μA

Temperature Coefficient

+/- (0.002% of reading + 0.002% of range) /°C ( < 18°C or > 28°C)



Ohms Measurement

Ohms Range

Accuracy (% of Reading + Counts)

0.00 Ω - 400.00 Ω

0.015% + 0.05 Ω

400.0 Ω - 4000.0 Ω

0.015% + 0.5 Ω

Note: Read accuracy is based on 4-wire input. For 3-wire ohm measurements, assuming all three leads are matched, add 0.05 Ω (0.00 Ω~400.00 Ω), 0.2 Ω (400.0 Ω~4000.0 Ω) to the specifications.

Temperature Coefficient

+/- (0.002% of reading + 0.002% of range) /°C ( < 18°C or > 28°C)



Ohms Source

Ohms Range

1.0 Ω - 400.0 Ω

1.00 Ω - 400.00 Ω

400.0 Ω - 1500.0 Ω

1500.0 Ω - 4000.0 Ω

Excitation Current From Measurement Device

0.1 mA - 0.5 mA

0.5 mA - 3 mA

0.05 mA - 0.8 mA

0.05 mA - 0.4 mA

Accuracy (% of Reading + Counts)

0.015% + 0.1 Ω

0.015% + 0.05 Ω

0.015% + 0.5 Ω

0.015% + 0.5 Ω

Resolution

0.00 Ω - 400.00 Ω

0.01 Ω

400.0 Ω - 4000.0 Ω

0.1 Ω

Temperature Coefficient

+/- (0.002% of reading + 0.002% of range) /°C ( < 18°C or > 28°C)
Supports pulsed transmitters and PLCs with pulse times as short as 5 ms



RTD Input and Output

RTD Type (α)

Range (°C)

Measure (°C)

Source (°C)

1 year

2 year

Source Current

1 year

2 year

10Ω Pt (385)

-200°C - 100°C

1.5°C

3°C

1 mA

1.5°C

3°C

100°C - 800°C

1.8°C

3.6°C

1 mA

1.8°C

3.6°C

50Ω Pt (385)

-200°C - 100°C

0.4°C

0.7°C

1 mA

0.4°C

0.7°C

100°C - 800°C

0.5°C

0.8°C

1 mA

0.5°C

0.8°C

100 Ω Pt (385)

-200°C - 100°C °C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100°C - 800°C

0.015% + 0.18°C

0.03%
+ 0.36°C

0.015%
+ 0.18°C

0.03% + 0.36°C

200 Ω Pt (385)

-200°C - 100°C

0.2°C

0.4°C

500 μA

0.2°C

0.4°C

100°C - 630°C

0.015%
+ 0.18°C

0.03%
+ 0.36°C

0.015%
+ 0.18°C

0.03% + 0.36°C

500 Ω Pt (385)

-200°C - 100°C

0.3°C

0.6°C

250 μA

0.3°C

0.6°C

100°C - 630°C

0.015%
+ 0.28°C

0.03%
+ 0.56°C

0.015%
+ 0.28°C

0.03% + 0.56°C

1000 Ω Pt (385)

-200°C - 100°C

0.2 °C

0.4°C

250 μA

0.2°C

0.4°C

100°C - 630°C

0.015%
+ 0.18°C

0.03%
+ 0.36°C

0.015%
+ 0.18°C

0.03% + 0.36°C

100 Ω Pt (3916)

-200°C - 100°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100°C - 630°C

0.015%
+ 0.18°C

0.03%
+ 0.36°C

0.015%
+ 0.18°C

0.03% + 0.36°C

100 Ω Pt (3926)

-200°C - 100°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

100°C - 630°C

0.015 %
+ 0.18°C

0.03%
+ 0.36°C

0.015%
+ 0.18°C

0.03% + 0.36°C

10 Ω Cu (427)

-100°C - 260°C

1.5°C

3°C

1 mA

1.5°C

3°C

120 Ω Ni (672)

-80°C - 260°C

0.15°C

0.3°C

1 mA

0.15°C

0.3°C

50 Ω Cu (427)

-180°C - 200°C

0.4°C

0.7°C

1 mA

0.4°C

0.7°C

100 Ω Cu (427)

-180°C - 200°C

0.2°C

0.4°C

1 mA

0.2°C

0.4°C

YSI400

15°C - 50°C

0.2°C

0.4°C

250 μA

0.2 °C

0.4°C

1. Sensor inaccuracies not included.
2. Resolution: 0.1°C.
3. Read accuracy is based on 4-wire input. For 3-wire RTD measurements, assuming all three RTD leads are matched, add 1.0°C (Pt10 and Cu10), 0.6°C (Pt50 and Cu50), 0.4°C (Other RTD types) to the specifications.
4. Source Accuracy in source mode is based on 0.5 mA ~ 3 mA (1.00 Ω ~ 400.00 Ω), 0.05 mA ~ 0.8 mA (400.0 Ω ~ 1500.0 Ω), 0.05 mA ~ 0.4 mA (1500.0 Ω ~ 4000.0 Ω), excitation current (0.25 mA for Pt1000 range).
5. Temperature Coefficient: +/- 0.05°C /°C for measure, +/- 0.05°C /°C (< 18°C or > 28°C) for source.
6. Supports pulsed transmitters and PLCs with pulse times as short as 5 ms.

Item
Description
Availability
Price
Compatible with Fluke 20, 70, 11X, 170 Series digital multimeters and other similar format test tools
Normally ships in 4-6 Weeks
$35.00 CAD

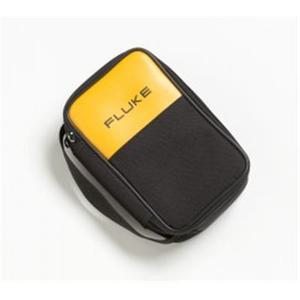

Protect your meter and conveniently carry it from one job to the next with this handy carrying case
Normally ships in 4-6 Weeks
$56.00 CAD

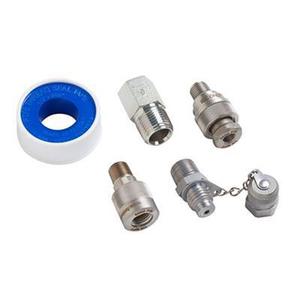

High Pressure Premium Fittings, NPT Fittings, 21 MPa (3000 PSI)
