Fluke

714B Thermocouple Calibrator

Highly accurate, easy-to-use single function thermocouple temperature calibrator


$1,818.00 CAD
Normally ships in 4-6 Weeks


  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function thermocouple temperature calibrator the Fluke 714B is the ideal test tool.

Comes with a magnetic hanging tool, batteries, test leads, traceable calibration certificate, and a manual.

• The 714B can measure and simulate seventeen (17) different thermocouple types and millivolts
• Measure 4 - 20 mA signals while simultaneously sourcing a temperature signal
• Hanging tool designed in and included with every unit
• Configurable 0% and 100% source settings for quick 25% linearity checks
• Linear ramp and 25% step auto ramp based on 0% and 100% settings
• Dual inputs and backlit display for easy interpretation of measurements
• Power down settings remembered at power up for easy restart of tests
• 1 year and 2 year specifications and traceable certificate of calibration

General Specifications

Maximum Voltage Applied Between Any Terminal and Earth Ground or Between Any Two Terminals

30 V

Temperature

Operating

-10°C - 50°C

Storage

- 30°C - 60°C

Altitude

Operating

2,000 m

Storage

12,000 m

Relative Humidity (% RH Operating Without Condensation)

Non condensing

90% (10°C - 30°C)

75% (30°C - 40°C)

45% (40°C - 50°C)

(Without condensation)

Vibration Requirements

MIL-T-28800E, Class 2

Drop Text Requirements

1 m

IP Rating

IEC 60529: IP52

Electromagnetic Environment

IEC 61326-1, Portable

Safety

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

Power Supply

4 AA NEDA 1.5A IEC LR6 batteries

Size (H x W x L)

52.5 mm x 84 mm x 188.5 mm

Weight

515 g



DC mA Measurement

Resolution

0 mA - 24 mA

Range

0.001 mA

Accuracy (% of Reading + Counts)

0.010% + 2 μA

Temperature Coefficient

+/- (0.002% of reading + 0.002% of range) /°C ( < 18°C or > 28°C)



Millivolt Measurement and Source

Resolution

-10 mV – 75 mV

Range

0.01 mV

Accuracy (% of Reading + Counts)

0.015% + 10 µA

Temperature Coefficient

+/- (0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)



Thermocouple Input and Output

TC Type

Range (°C)

Measure (°C)

Source (°C)

1 year

2 year

1 year

2 year

E

-250°C to 200°C

1.3

2.0

0.6

0.9

-200°C to -100°C

0.5

0.8

0.3

0.4

-100°C to 600°C

0.3

0.4

0.3

0.4

600°C to 1000°C

0.4

0.6

0.2

0.3

N

-200°C to -100°C

1.0

1.5

0.6

0.9

-100°C to 900°C

0.5

0.8

0.5

0.8

900°C to 1300°C

0.6

0.9

0.3

0.4

J

-210°C to -100°C

0.6

0.9

0.3

0.4

-100°C to 800°C

0.3

0.4

0.2

0.3

800°C to 1200°C

0.5

0.8

0.3

0.3

K

-200°C to -100°C

0.7

1.0

0.4

0.6

-100°C to 400°C

0.3

0.4

0.3

0.4

400°C to 1200°C

0.5

0.8

0.3

0.4

1200°C to 1372°C

0.7

1.0

0.3

0.4

T

-250°C to -200°C

1.7

2.5

0.9

1.4

-200°C to 0°C

0.6

0.9

0.4

0.6

0°C to 400°C

0.3

0.4

0.3

0.4

B

600°C to 800°C

1.3

2.0

1.0

1.5

800°C to 1000°C

1.0

1.5

0.8

1.2

1000°C to 1820°C

0.9

1.3

0.8

1.2

R

-20°C to 0°C

2.3

2.8

1.2

1.8

0°C to 100°C

1.5

2.2

1.1

1.7

100°C to 1767°C

1.0

1.5

0.9

1.4

S

-20°C to 0°C

2.3

2.8

1.2

1.8

0°C to 200°C

1.5

2.1

1.1

1.7

200°C to 1400°C

0.9

1.4

0.9

1.4

1400°C to 1767°C

1.1

1.7

1.0

1.5

C

0°C to 800°C

0.6

0.9

0.6

0.9

800°C to 1200°C

0.8

1.2

0.7

1.0

1200°C to 1800°C

1.1

1.6

0.9

1.4

1800°C to 2316°C

2.0

3.0

1.3

2.0

L

-200°C to -100°C

0.6

0.9

0.3

0.4

-100°C to 800°C

0.3

0.4

0.2

0.3

800°C to 900°C

0.5

0.8

0.2

0.3

U

-200°C to 0°C

0.6

0.9

0.4

0.6

0°C to 600°C

0.3

0.4

0.3

0.4

BP

0°C to 1000°C

1.0

1.5

0.4

0.6

1000°C to 2000°C

1.6

2.4

0.6

0.9

2000°C to 2500°C

2.0

3.0

0.8

1.2

XK

-200°C to 300°C

0.2

0.3

0.2

0.5

300°C to 800°C

0.4

0.6

0.3

0.6

G

100°C to 300°C

1.6

2.4

1.2

1.8

300°C to 1500°C

1.0

1.5

1.0

1.5

1500°C to 2320°C

2.0

3.0

1.6

2.4

D

0°C to 300°C

1.6

2.4

1.2

1.8

300°C to 1500°C

1.0

1.5

1.0

1.5

1500°C to 2315°C

2.0

3.0

1.6

2.4

P

0°C to 1000°C

1.6

2.4

0.6

0.9

1000°C to 1395°C

2.0

3.0

0.8

1.2

M

-50°C to 100°C

1.0

1.5

0.4

0.6

100°C to 1000°C

1.6

2.4

0.6

0.9

1000°C to 1410°C

2.0

3.0

0.8

1.2

Item
Description
Availability
Price
Thermocouple plug kit that contains seven (7) mini-plug connectors
Normally ships in 4-6 Weeks
$137.00 CAD
Isothermal screw terminal for J wire
Normally ships in 4-6 Weeks
$42.00 CAD
Isothermal screw terminal for K wire
Normally ships in 4-6 Weeks
$42.00 CAD
Type-J thermocouple for general purpose applications
Normally ships in 4-6 Weeks
$42.00 CAD
Extending and repairing J-type thermocouple wires
Normally ships in 4-6 Weeks
$84.00 CAD
Type-K thermocouple for general purpose applications
Normally ships in 4-6 Weeks
$49.00 CAD

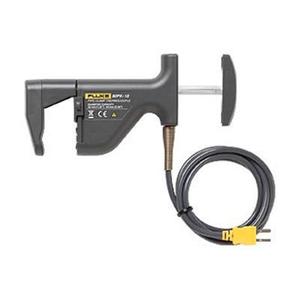

Type K extra large thermocouple clamps securely to larger pipes for fast temperature and superheat measurement
Normally ships in 4-6 Weeks
$349.00 CAD
Use with any temperature-measuring instrument designed to accept Type K thermocouples
Normally ships in 4-6 Weeks
$63.00 CAD
Type K thermocouple for use in air and non-caustic gas measurements
Normally ships in 4-6 Weeks
$167.00 CAD
Type K thermocouple suitable for food industry, liquids and gels
Normally ships in 4-6 Weeks
$167.00 CAD
Type K thermocouple with tapered tip for use in air, non-caustic gas and surface applications
Normally ships in 4-6 Weeks
$167.00 CAD
Extending and repairing K-type thermocouple wires
Normally ships in 4-6 Weeks
$84.00 CAD
Operates with T-type thermometers
Normally ships in 4-6 Weeks
$167.00 CAD
Extending and repairing T-type thermocouple wires
Normally ships in 4-6 Weeks
$84.00 CAD

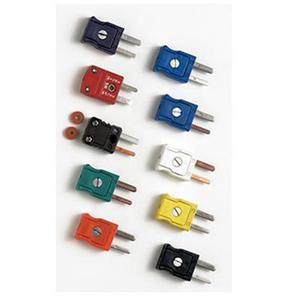

Thermocouple plug kit that contains ten (10) mini-plug connectors
Normally ships in 4-6 Weeks
$137.00 CAD
Immersion temperature probe designed for use in liquid and gels
Normally ships in 4-6 Weeks
$140.00 CAD
Designed to reliably measure temperatures on flat or slightly convex surface
Normally ships in 4-6 Weeks
$455.00 CAD
Type K thermocouple with exposed junction for flat or slightly convex surfaces such as plate and rollers
Normally ships in 4-6 Weeks
$222.00 CAD
Type K thermocouple for fast temperature and superheat measurements of pipe surfaces
Normally ships in 4-6 Weeks
$249.00 CAD
