719Pro Electric Pressure Calibrators

The ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges

Starting at

$7,555.79CAD

Have questions? We're here to help!

Call

Configure

Used in

719 Pro Electric Pressure Calibrators 03266

The 719Pro includes a full functioning loop calibrator that sources, simulates and measures mA signals and more making it the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges.

Get the ultimate in measurement flexibility with the large backlit screen, which displays three parameters at once:
• Pressure measurement from internal or external sensor
• Sourced/simulated or measured mA values
• Temperature measured by optional RTD probe

• Unique integrated electric pump for one handed pressure calibration
• Test pressure switches easily with easy-to-use switch test function
• Precision pressure adjust vernier for easy and accurate pressure calibration
• Ideal accuracy and performance (0.025%) for reference class transmitter calibration
• 30 PSI, 150 PSI and 300 PSI pressure ranges
• Programmable pressure calibrator pump limit:
• Eliminates over-pressurization
• Allows the user to program target pressures for pumping
• Extended pressure measurement range with any of 29 of the 700Pxx Pressure Modules
• Pump cleanout ports reduce pump failures from moisture and fluid damage

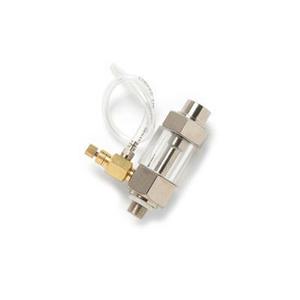

• Fluid trap included with the unit to mitigate chance of fluid damage in at-risk applications

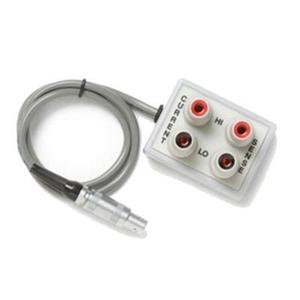

• Precision temperature measurement with optional RTD probe

Specifications
Pressure Measurement
	719Pro-30G		719Pro-150G			719Pro-300G
Range	-12 PSI - 30 PSI (-0.8 bar - 2 bar)		-12 PSI - 150 PSI (0.8 bar - 10 bar)			-12 PSI - 300 PSI (-0.8 bar - 20 bar)
Resolution	0.001 PSI, 0.0001 bar		0.01 PSI, 0.001 bar
Accuracy (1 year)	+/- 0.025% of full scale, 6 months +/- 0.035% of full scale, 1 year Dry Air and non-corrosive gas only
Temperature effect (all ranges)	Add +/- 0.002 % F.S./°C for temps outside of 15°C - 35°C No effect on accuracy on all functions from 15°C - 35°C
Function	Range	Resolution		Accuracy (1 year)	Comment
mA DC (Simulation and Measurement)	0 - 24 mA DC	0.001 mA		+/- 0.015% of reading +/- 2 counts
