Fluke

729 Automatic Pressure Calibrator

Portable automatic pressure calibrator simplifies pressure calibration

Starting At
$12,676.00 CAD
Normally ships in 4-6 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an in an easy-to-use, rugged, portable package.

The ideal portable pressure calibrator, the 729 allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment con­trol automatically stabilizes the pressure at the requested value.  The Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level. The 729 does the rest.

Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0% and 100% values.  Upload and manage documented calibration results with DPCTrack2™ Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.

With three ranges to choose from, 30 PSI (2 bar, 200 kPa), 150 PSI (10 bar, 1 MPa) and 300 PSI (20 bar, 2 MPa), Fluke 729 Automatic Pressure Calibrators are designed to perform when and where you need them.

• Automatic pressure generation and regulation to 300 psi
• Configure procedures for pressure transmitters and switches
• Measure, source, and simulate 4 to 20 mA signals
• Troubleshoot and calibrate HART smart transmitters
• Automatically document test results

Model



PSI Range, Resolution

Bar Range, Resolution

kPa, Resolution

Comment

729 30G

-12.0000 - 30.0000 PSI

-0.82737 - 2.06842 bar

-82.737 - 206.843 kPa



No wireless communication

729 150G

-12.000 - 150.000 PSI

-0.8273 - 10.3421 bar

-82.73 - 1034.21 kPa

No wireless communication

729 300G

-12.000 - 300.000 PSI

-0.8273 - 20.6843 bar

-82.73 - 2068.43 kPa

No wireless communication

729 30G FC

-12.0000 - 30.0000 PSI

-0.82737 - 2.06842 bar

-82.737 - 206.843 kPa



Wireless communication for Fluke Connect

729 150G FC

-12.000 - 150.000 PSI

-0.8273 - 10.3421 bar

-82.73 - 1034.21 kPa

Wireless communication for Fluke Connect

729 300G FC

-12.000 - 300.000 PSI

-0.8273 - 20.6843 bar

-82.73 - 2068.43 kPa

Wireless communication for Fluke Connect

Electrical Specification

All specifications are valid to 110% of range, except 24 mA source and simulate which are valid to 100% of range.

Ranges

mA Measure, Source and Simulate

0 mA - 24 mA

Volts DC Measure

0 V DC - 30 V DC

Resolution

mA DC Source, Simulate and Measure

1 μA

Voltage DC Measurement

1 mV

Accuracy

0.01%  ± 2 LSD all ranges (at 23°C, ± 5°C)

Stability

20 ppm of full scale /°C from -10°C - 18°C and 28°C - 50°C

mA Simulate External Voltage Requirement

12 V DC - 30 V DC

Loop Compliance Voltage

24 V DC @ 20 mA

mA Simulate External Voltage Requirement

12 V DC - 30 V DC

Temperature Measurement Only / 100 Ω Pt(385) RTD

-50°C - 150°C (-58°F - 302°F)

Temperature Resolution

0.01 °C (0.01 °F)

Temperature Accuracy

± 0.1°C (0.2°F),  ± 0.25°C (± 0.45°F) combined uncertainty when using 720 RTD probe (optional accessory)

Drive Capability

1200 Ω without HART resistor, 950 Ω with internal HART resistor

Mechanical Specification

Size (H x W x L)

7 cm x 27.94 cm x 17.27 cm (2.75 in x 11 in x 6.8 in)

Weight

6.5 lbs., 2.95 kg

Ingress Protection

IP54

Environmental Specification

Temperature

Operating

Without Battery

For Measurement

-10°C - 50°C

For Pressure Control

0°C - 50°C

With Battery

-10°C - 40°C (Battery will only charge to 40°C)

Storage

-40°C - 60°C

Altitude

Operating

3,000 m

Storage

13,000 m

Wireless (729 FC only)

Radio Frequency Certification

FCC ID: T68-FBLE IC:6627A-FBLE

Wireless Radio Frequency Range

2412 MHz - 2462 MHz

Item
Description
Availability
Price

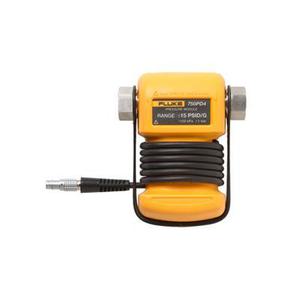

Pressure modules to be used with Fluke documenting, multinfunction, and pressure calibrators
