Fluke

787 ProcessMeter

Handheld digital multimeter and loop calibrator with 0.05% accuracy and 1 microamp resolution


$1,233.00 CAD
Normally ships in 4-6 Weeks


  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

A maintenance and calibration tool that will be at home in every instrumentation technician's tool box, the Fluke 787 ProcessMeter™ combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate DC loop current with 0.05% accuracy and 1 µA resolution.

Comes with AC70A alligator clipa, C81Y protective yellow holster with Flex-Stand, one 9 V alkaline battery, TL75 safety-designed test lead set, and a quick reference guide.

• DMM and loop calibrator in one tool
• Clear LCD with backlight; 4,000 counts (30,000 counts for DC current)
• Externally accessible battery for easy battery change
• 1000 V overload protection on V, ohms, frequency.
• 150 V overload protection on mA, backed up by 440 mA 1000 V fuse
• 25% Manual Step plus Auto Step and Auto Ramp on mA output

Specifications

Current Measurement

Range

0 A – 1 A

Resolution

1 mA

Accuracy

0.2% + 2 LSD

Range

0 mA – 30 mA

Resolution

0.001 ma

Accuracy

0.05% + 2 LSD

Current Sourcing

Range

0 – 20 mA or 4 – 20 mA

Resolution

0.05% of span

Drive Capability

500 Ω @ 24 mA

Frequency

To 19.999 kHz, 0.005% + 1 LSD

Continuity

Beeps for resistance < 100 Ω

Voltage measurement

Range

0 V – 1000 V (AC or DC)

Resolution

0.1 mV – 1.0 V

Accuracy

0.1% RDG + 1 LSD (VDC)

Resistance Measurement

To 40 MΩ, 0.2% + 1 LSD

Diode Test

2.4 V shows diode voltage drop

Environmental Specifications

Temperature

Operating

-20°C - 55°C

Storage

-40°C - 60°C

Humidity (Without Condensation)

95% up to 30°C

75% up to 40°C

45% up to 50°C

35% up to 55°C

Temperature Coefficient

0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)

Safety Specifications

Electrical Safety

Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92

Overvoltage Category

IEC 1010-1 CAT III

Maximum Voltage

1000 Vrms

Mechanical & General Specifications

Size

32 mm x 87 mm x 187 mm

Weight

369 g

Batteries

Single 9 V alkaline battery (ANSI/NEDA 1604A or IEC 6LR61)

Warranty

3 years

Battery Life

50 h typical (measurement), 12 h typical (sourcing 12 mA)

Shock & Vibration

Random 2G, 5 Hz – 500 Hz

1 m drop test

Display Current and % of Span

Yes

Auto Step, Auto Ramp

Yes



Item
Description
Availability
Price
AC220 SureGrip Alligator Clips
Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement
Normally ships in 4-6 Weeks
$63.00 CAD
AC280 SureGrip Hook Clips
Improve steadiness in slipper hands with comfortable rubber overmolded surfaces and finger-hugging curves to give a reliable grip so you can focus on making an accurate measurement
Normally ships in 4-6 Weeks
$49.00 CAD
AC283 SureGrip Pincer Clips
Improve steadiness in slipper hands with comfortable rubber overmolded surfaces and finger-hugging curves to give a reliable grip so you can focus on making an accurate measurement
Normally ships in 4-6 Weeks
$67.00 CAD
AC285 SureGrip Alligator Clips
SureGrip alligator clips
Normally ships in 4-6 Weeks
$36.00 CAD
AC87 Heavy Duty Bus Bar Clip Set
One pair of flat, right angle design for connecting to bus bars
Normally ships in 4-6 Weeks
$63.00 CAD
AC89 Heavy Duty Insulation Piercing Test Clip
Probe pierces insulated wire making contact for accurate readings
Normally ships in 4-6 Weeks
$63.00 CAD
BP980 Double Banana Plug Kit
Five (5) pairs (red and black) of double 4 mm banana plugs, each with 3.1 mm for mounting wires and components
Normally ships in 4-6 Weeks
$63.00 CAD
TP38 Slim Reach Insulated Test Probe Set
One pair (red, black) of slender probe bodies for probing closely spaced or recessed terminals
Normally ships in 4-6 Weeks
$28.00 CAD
TP1 Slim Reach Test Probe Set
One pair (red, black) of slender probe bodies for probing closely spaced or recessed terminals
Normally ships in 4-6 Weeks
$28.00 CAD
TP220 SureGrip Industrial Test Probes
SureGrip­ industrial test probes
Normally ships in 4-6 Weeks
$28.00 CAD
TP4 Slim Reach Test Probe Set
One pair (red, black) of slender probe bodies for probing closely spaced or recessed terminals
Normally ships in 4-6 Weeks
$28.00 CAD
TP74 Lantern Tip Test Probe Set
One pair (red, black) with tips which include banana-style spring contacts with nickel-plated brass ends
Normally ships in 4-6 Weeks
$28.00 CAD
TP80 Electronic Test Probe Set
One pair (red, black) with IC insulated caps to prevent shortening of IC legs for probing high-density components or boards
Normally ships in 4-6 Weeks
$49.00 CAD
TP920 Test Probe Adapter Kit
Set of push-on adapters for TL71 and TL75 test probes
Normally ships in 4-6 Weeks
$56.00 CAD
C100 Universal Carrying Case
Tough polypropylene case
Normally ships in 4-6 Weeks
$84.00 CAD
C510 Leather Meter Case
Rugged construction with heavy duty stitching, reinforced rivets, and oil tanned for a long life
Normally ships in 4-6 Weeks
$112.00 CAD
C800 Meter and Accessory Case
Tough polyprophylene case with a detachable lid
Normally ships in 4-6 Weeks
$84.00 CAD
CXT170 Extreme Case
Unbreakable, watertight, airtight, dustproof, chemical resistant and corrosion proof case that floats in salt water
Normally ships in 4-6 Weeks
$281.00 CAD
C25 Large Soft Case for DMMs
Protect your meter and conveniently carry it from one job to the next with this handy carrying case
Normally ships in 4-6 Weeks
$56.00 CAD
CAMO-C25 Camouflage Carrying Case
Durable, zippered carrying case with padding, an inside pocket, and high-quality polyester exterior and carries most of Fluke's popular digital multimeters
Normally ships in 4-6 Weeks
Starting At
$67.00 CAD
Configure
H80M Protective Holster with Magnetic Hanging Strap
Designed for the 80 Series digital multimeters
Normally ships in 4-6 Weeks
$71.00 CAD
TL80A Basic Electronic Test Lead Kit
This basic electronic test lead kit has the fundamental accessories for testing electronics, and includes the Fluke TL71 premium test lead set
Normally ships in 4-6 Weeks
$112.00 CAD
80PK-24 SureGrip Air Temperature Probe
Type K thermocouple for use in air and non-caustic gas measurements
Normally ships in 4-6 Weeks
$167.00 CAD
80PK-25 SureGrip Piercing Temperature Probe
Type K thermocouple suitable for food industry, liquids and gels
Normally ships in 4-6 Weeks
$167.00 CAD
80PK-26 SureGrip Tapered Temperature Probe
Type K thermocouple with tapered tip for use in air, non-caustic gas and surface applications
Normally ships in 4-6 Weeks
$167.00 CAD
80PK-22 SureGrip Immersion Temperature Probe
Immersion temperature probe designed for use in liquid and gels
Normally ships in 4-6 Weeks
$140.00 CAD
80PK-27 SureGrip Industrial Surface Temperature Probe
Designed to reliably measure temperatures on flat or slightly convex surface
Normally ships in 4-6 Weeks
$455.00 CAD
TL220 SureGrip Industrial Test Lead Set
This test lead set with test probes works in multiple electrical applications while the SureGrip feature is designed to do your work with comfort
Normally ships in 4-6 Weeks
$112.00 CAD
TL223 SureGrip Electrical Test Lead Set
Ideal starter kit for electrical applications that includes 3 test lead accessories in an all-in-one set
Normally ships in 4-6 Weeks
$112.00 CAD
TL224 SureGrip Insulated Test Leads
These insulated test leads provide the convenience and variety for test lead configurations by attaching clips, hooks and grabbers as needed
Normally ships in 4-6 Weeks
$42.00 CAD
TL71 Premium Test Lead Set
Provides comfort grip probes with silicone insulated, right-angle test leads
Normally ships in 4-6 Weeks
$42.00 CAD
TL81A Deluxe Electronic Test Lead Kit
Ideal for testing electronic equipment and offers versatility with modular test probes, alligator clips, test clips and more
Normally ships in 4-6 Weeks
$212.00 CAD
H900 Test Lead Holder
Test lead holder with 10 slots for wires
Normally ships in 4-6 Weeks
$36.00 CAD
TL27 Heavy Duty Test Lead Set
Digital multimeter test leads (red, black) with safety shrouded, standard diameter banana plugs
Normally ships in 4-6 Weeks
$49.00 CAD
TL221 SureGrip Test Lead Extension Kit
One pair (red, black) of silicone insulated leads with straight connectors on both ends
Normally ships in 4-6 Weeks
$42.00 CAD
TL222 SureGrip Silicone Insulated Test Leads
Digital multimeter test leads (red, black) with safety shrouded, standard diameter banana plugs
Normally ships in 4-6 Weeks
$42.00 CAD
TL238 SureGrip Test Lead Set for High Energy Environments
Test lead accessory kit especially designed for working in high energy environments
Normally ships in 4-6 Weeks
$112.00 CAD
TL40 Retractable Tip Test Lead Set
One pair (red, black) of test leads with sharp needle point tips adjustable to desired length from 0 mm - 76 mm
Normally ships in 4-6 Weeks
$63.00 CAD
TL75 Hard Point Test Lead Set
PVC insulated test leads with right-angle shrouded banana plugs recommended for general purpose measurements
Normally ships in 4-6 Weeks
$36.00 CAD
TL76 All-In-One Test Lead Set
One pair (red, black) 1.5 meter long silicone test leads with right angle shrouded banana plug
Normally ships in 4-6 Weeks
$49.00 CAD
TL910 Electronic Test Probe Set
Electronic test probe set with very small 1 mm tips to access hard to reach test points
Normally ships in 4-6 Weeks
$99.00 CAD
TL930 Patch Cords
1 pair (red, black) multi-stacking 4 mm banana plug patch cords, 60 cm
Normally ships in 4-6 Weeks
$31.00 CAD

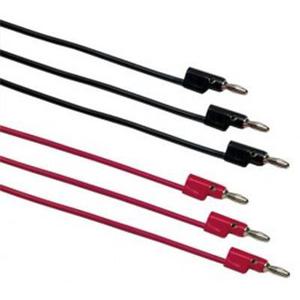

TL935 Patch Cord Kit
