Fluke

787B ProcessMeter

Troubleshooting capabilities by combining the power of a safety rated digital multimeter & mA loop calibrator into a single, compact test tool

Buy now!
$1,874.59CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Also found in
787 B Process Meter 03259

The Fluke 787B ProcessMeter™ doubles troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87V meter, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications. With Fluke Connect® mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere*.

Wth Fluke Connect® mobile app and desktop software compatibility, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.* If you’re looking for even more troubleshooting power, the Fluke 789 ProcessMeter™ offers technicians even more flexibility, and even includes a built-in 24 V loop power supply.


The Fluke 787B not only allows you to source, measure and simulate 20 mA DC current but also allows you simultaneously look at mA and percent of scale readouts so you can easily compare readings to what you see on your controller. Manually step mA signals (100%, 25%, Coarse adjustment, Fine adjustment) or use the Auto step and Auto ramp feature to work even more efficiently.

Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV standards, the Fluke 787B is also a full-featured, precision, true-rms digital multimeter with standard features for diode testing and a continuity beeper. Troubleshoot more, while carrying less. The 787B also allows you to make frequency measurements to 20 kHz and includes Min/Max/Average/Hold/Relative modes for easy operation. Even the batteries and fuses are easily accessible allowing you to make fast, easy changes.

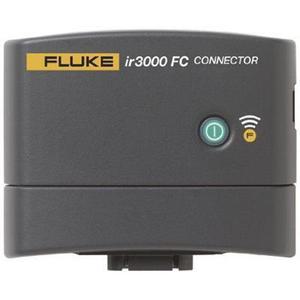

*Requires Fluke IR3000FC module (not included).

• Compact digital multimeter and mA loop calibrator solution
• Measure/Source/Simulate loop currents while powering the loop
• Manual and automatic ramp up - ramp down functions
• Easy-to-read backlit display

Measurement Function

Range and Resolution

Best Accuracy (% of Reading + LSD)

V DC

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V

0.1% + 1

V AC (True-RMS)

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V

0.7% + 2

mA DC

30.000 mA

0.05% + 2

A DC

1.000 A (0.440 A continuous)

0.2% + 2

A AC

1.000 A (0.440 A continuous)

1% + 2

Resistance

400.0 Ω, 4.000 k Ω, 40.00 k Ω, 400.0 k Ω, 4.0 M Ω, 40 M Ω

0.2% + 1

Frequency (0.5 Hz - 20 kHz)

  • Thumbnail of document Manual - 787B ProcessMeter
    Download

    Manual - 787B ProcessMeter

    Download
  • Thumbnail of document Data Sheet - 787B ProcessMeter
    Download

    Data Sheet - 787B ProcessMeter

    Download
