Dwyer

8904 Integral Vane Thermo-Anemometer

Large 1.3 in dual display, one hand operation, built-in sensor records ambient temperature in °F or °C

Buy now!
$259.35CAD
Have questions? We're here to help!
Have questions? We're here to help!

Simultaneously measure air velocity and temperature with the Model 8904 Integral Vane Thermo-Anemometer. The large 1.3 in (34 mm) display allows users to easily view readings. User-selectable wind speed units include ft/min, m/sec, knots, mph and km/h. Additionally, a built-in sensor records ambient temperature in °F or °C. Model 8904 features include data hold, the ability to record minimum, maximum and average readings on a single point and an RS-232 interface setting. The units can also record and average up to 2 hours of data while displaying the continuous running average. Model 8904 includes hard carrying case, battery and instruction manual. This compact meter is ideal for HVAC inspection, energy audits and balancing applications.

AIR VELOCITY
Range80 ft/min - 5900 ft/min (0.4 m/s - 30 m/s)
Accuracy± 2% of reading ± 0.2 m/s
Resolution1 ft/min (0.01 m/s)
Response Time1 s
TEMPERATURE
Range14°F - 122°F (-10°C - 50°C)
Accuracy± 1°F (± 0.6°C)
Resolution0.1°F/°C
Response Time60 s
METER
Display1.3 in x 1.6 in (34 mm x 40 mm)
Serial Communications2400 bps, 8 data bits
Power Requirements9 V alkaline battery, included, user replaceable
Battery Life100 hrs
Vane Diameter2-7/8 in (70 mm)
Weight5.3 oz (150 g)
Agency ApprovalsCE

• This meter is most ideal for measuring heat, ventilation, air conditioning, refrigerating wind flow and temperature.

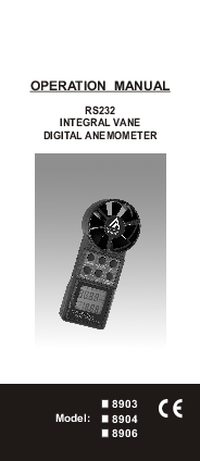

  • Thumbnail of document Manual - 8904 Integral Vane Thermo-Anemometer
    Download

    Manual - 8904 Integral Vane Thermo-Anemometer

    Download
