Fluke Calibration

9118A Thermocouple Calibration Furnace

High performance furnace for thermocouple calibrations to 1200C

Starting At
$20,915.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Fluke Calibration 9118A Thermocouple Calibration Furnace is a horizontal, open-ended tube furnace with a temperature range of 300°C to 1200°C. It is used for comparison calibration of noble and base-metal thermocouples by secondary high-temperature labs and instrument shops in industries such as aerospace, automotive, energy, metals, and plastics. The 9118A is the most accurate, reliable, and flexible furnace in its class, meeting the demanding requirements of high-temperature thermocouple calibration.

• Wide temperature range spanning most high temperature applications
• Flexible configuration for calibrating a wide range of thermocouple types
• Best-in-class temperature stability and uniformity for calibration accuracy
• Automated setpoint control for improved lab productivity
• Non-metallic block helps minimize thermocouple contamination
• Deep immersion depth to support most thermocouple calibrations
• Dynamic heater control and cutouts for reliability and safety

Operating Temperature 5C - 40C
Storage Temperature -20C - 70C
Humidity 80% maximum for temperatures < 31C, decreasing linearly to 50% at 40C
Altitude < 2,000 m (6,562 feet)
Power Requirements 230 VAC (+/- 10%), 50/60 Hz, 20 A
Heater Power 4000 W at 230 VAC
System 20 A, 250 V resettable circuit breaker
Main Heater Fuse F 12 A, 250 V
Zone Heater Fuse F 12 A, 250 V
Computer Interface RS-232 and USB
Display Monochrome LCD, C or F user-selectable
Display Resolution 0.1C or F
Size (H x W x L) 400 mm x 337 mm x 700 mm (15.7 in x 13.3 in x 27.6 in)
Net Weight 29 kg (63.9 lb) without isothermal block
Isothermal Block Construction Alumina
Block Outer Diameter 37 mm (1.5 in)
Block Length 380 mm (15.0 in)
Well Diameter (four wells total) 6.7 mm (0.26 in)
Well Depth 365 mm (14.4 in)
Net Weight 0.84 kg (1.9 lb) isothermal block only
Furnace Temperature Range 300C - 1200C
Set-Point Accuracy +/- 5C
Item
Description
Availability
Price

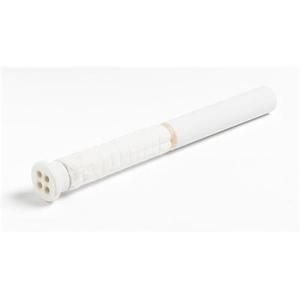

9118A isothermal block, 6.35 mm (0.25 in) wells x 4 for the 9118A thermocouple calibration furnace
Normally ships in 1-2 Weeks
$2,960.00 CAD
