Fluke Calibration

9150 Thermocouple Furnace

Low-cost furnace with a high temperature range that's convenient to use

Starting At
$11,448.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

Fluke Calibration’s Model 9150 Thermocouple Furnace is new and more convenient to use – and at a lower price than any other furnace available.  It has a stability of +/- 0.5°C, a temperature range to 1200°C and a display accuracy of +/- 5°C across its entire range.

With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch in diameter. The 9150 works with 115 or 230 VAC power.

The 9150 Thermocouple Furnace uses Fluke Calibration's own microprocessor-based controller for great stability and set-point accuracy. It has a removable well insert for versatility. It has rapid cool-down and heat-up times. And it comes with an RS-232 port for connection to a PC.

You can now afford to check your thermocouples with this excellent cost-effective instrument. Why pay more for features you don’t need and can’t use? Each unit is factory-calibrated and comes with test data and a calibration traceable to NIST.

• Low-cost thermocouple furnace
• NIST-traceable calibration included
• RS-232 port standard

Temperature Range 150C - 1200C (302F - 2192F)
Display Resolution 0.1 to 999.9; 1 above 1000
Stability +/- 0.5C
Display Accuracy +/- 5C
Well Diameter 1.25 in (32 mm)
Well Depth 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator)
Heating Time 35 min to 1200C
Cooling Time 140 min with block
Well-to-Well Uniformity +/- 2.5C (using insert C" at 1200C)
Stabilization 20 min
Power 115 VAC (+/- 10%), 10.5 A or 230 VAC (+/- 10%), 5.2 A, switchable, 50/60 Hz, 1200 W
Size (H x W x D) 315 mm x 208 mm x 315 mm (12.4 in x 8.2 in x 12.4 in)
Weight 13 kg (28 lb.)
NIST-Traceable Calibration Data at 150C, 300C, 450C, 600C, 800C, 1000C, and 1200C
Item
Description
Availability
Price

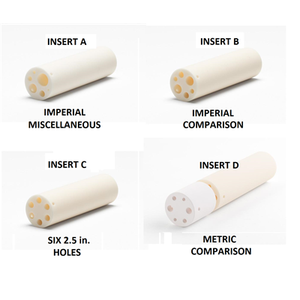

Removable inserts for use with the 9150 thermocouple furnace
Normally ships in 1-2 Weeks
Starting At
$1,399.00 CAD
Configure
Rugged carrying case for the 9150 thermocouple furnace
Normally ships in 1-2 Weeks
$1,213.00 CAD
