Dwyer

ADPS / EDPS Differential Pressure Switch

Designed for pressure, vacuum, and differential pressures, settings from 0.08 in W.C. - 20 in W.C., and dual scale field adjustable set point knob in a compact and low-cost instrument

Starting At
$30.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in W.C. (20 Pa) up to 20 in W.C. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.

• Adjustment know changes switching pressure easily with a pressure gage reducing components for application
• Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
• Relay contact allows simple integration with DDC or building systems


Service Air and non-combustible, compatible gases
Wetted Materials ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene;
EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated
Temperature Limits Process and ambient temperature from -4F - 185F (-20C - 85C)
Pressure Limits Max. Operating Pressure: 40 in W.C. (10 kPa) for all pressure ranges
Switch Type Single-pole double-throw (SPDT)
Electrical Rating Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz;
Max. switching rate: 6 cycles/min

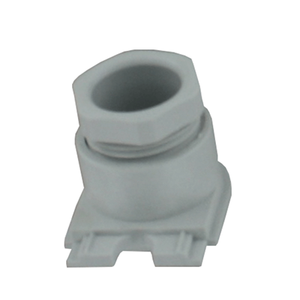

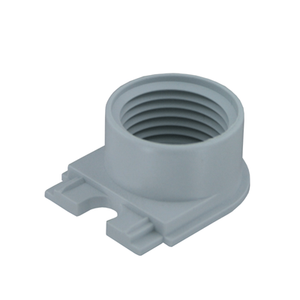

Electrical Connections Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2 in NPT connection
Process Connections 5/16 in (7.94 mm) outside diameter tubing, 1/4 in (6.0 mm) inside diameter tubing
Enclosure Rating 5/16 in (7.94 mm) outside diameter tubing, 1/4 in (6.0 mm) inside diameter tubing
Mounting Orientation Vertically, with pressure connections pointing downwards
Mechanical Working Life Over 106 switching operations
Weight 5.6 oz (160 g).
Agency Approvals CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only)

• Monitoring air filters and ventilators
• Monitoring industrial cooling-air circuits
• Overheating protection for fan heaters
• Monitoring flows in ventilation ducts
• Controlling air and fire-protection dampers
• Frost protection for heat exchanges

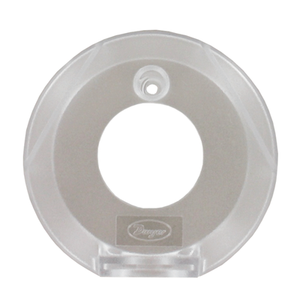

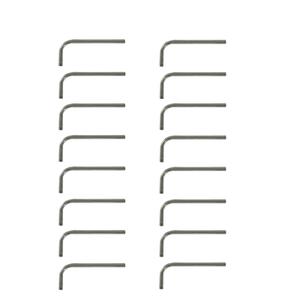

Item
Description
Availability
Price
A-288 L-Type Mounting Bracket
L-type mounting bracket
Normally ships in 2-3 Weeks
$8.00 CAD
Call Today!
800-567-8686 ...or... Request Quote
A-289 S-Type Mounting Bracket
S-type mounting bracket
Normally ships in 3-4 Weeks
$8.00 CAD
Call Today!
800-567-8686 ...or... Request Quote
A-480 Plastic Static Pressure Tip
Plastic static pressure tip
Normally ships in 3-4 Weeks
$5.00 CAD
Call Today!
800-567-8686 ...or... Request Quote
A-481 Installer Kit
Installer kit includes two (2) static pressure tips and PVC tubing
Normally ships in 3-4 Weeks
$8.00 CAD
Call Today!
800-567-8686 ...or... Request Quote
A-489 Static Pressure Tip
4 in straight static pressure tip with flange
Normally ships in 1-2 Weeks
$10.00 CAD
Call Today!
800-567-8686 ...or... Request Quote
