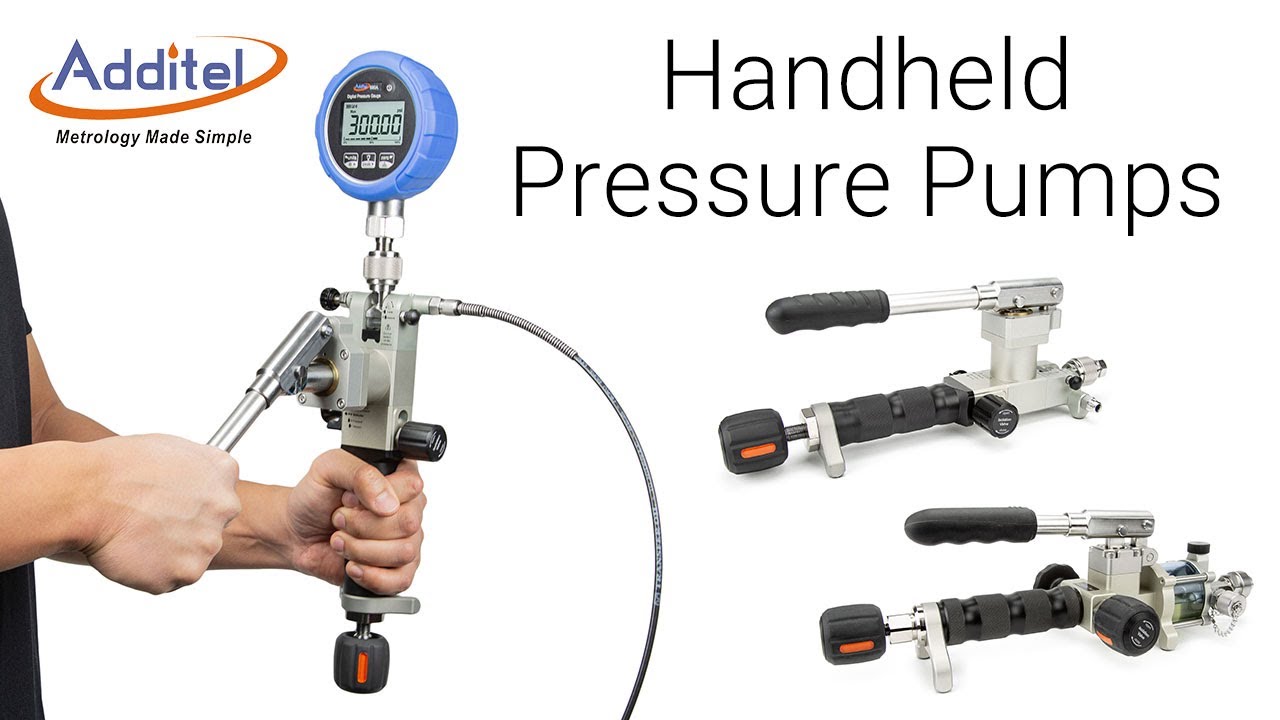

ADT992/993 Handheld Pneumatic Pressure Pump

Handheld Pneumatic Pressure Pump

Starting at
$1,792.50CAD
Have questions? We're here to help!
Have questions? We're here to help!
Configure

 The ADT992/993 Handheld Pneumatic Pressure Pumps deliver up to 700 PSI (50 Bar) or 1,000 psi (70 bar) using a dual-stage pre-pressure piston for efficiency and ease of use. Their lever-type pressurization ensures quick stabilization, while a fine adjust screw enables precise pressure adjustments. Due to their adjustable reference port and dual rubber grips, the ADT992/993 allows for multiple operating positions to be utilized, making it a modern upgrade to traditional handheld pumps.

Portable: Only 3.5 lbs

Durable and Minimal Maintenance
Custom machined to handle rugged use while remaining leak-free

Easy-to-use
Dual action piston allows for higher pressure with less effort

Multiple Operating Positions
Use either horizontally or vertically with the adjustable reference port and dual rubber grips

Hand-tight Quick Connectors
Included hose features hand tight quick connectors for easy swapping of DUTs
MediaAir
Generated Pressure RangeADT992: 95% vacuum to 700 psi (50 bar)
ADT993: 95% vacuum to 1,000 psi (70 bar)
Adjustment Resolution10 Pa (0.1 mbar)
Minimum Pre-pressure600 psi (40 bar)
Boost pressure of lever stroke+30 psi (2 bar) / stroke
Maximum load volume30 ml
Maximum volume of line adjustment7.2ml
Port filtersStandard port: 150μm quick removal
Filter Pump air intake port: 100μm quick removal
Filter Pressure outlet: 150μm quick release filter.
MaterialRam/adapters: SS
Body: SS, aluminum
Seals: Buna-N, PTFE, Copper Alloy
DimensionsHeight 4.8" (122mm)
Base 12.6" (320mm) x 4.3" (110mm)
Warranty1 Year
