AMB-45 Insulation Resistance Tester

Test insulation of wires, cables, transformers & electrical motors quickly & easily with this rugged tester

Buy now!

$1,285.19CAD

Have questions? We're here to help!

Call

QTY

Used in

AMB 45 Insulation Resistance Tester 03885

AMB 45 Insulation Resistance Tester 1c151

AMB 45 Insulation Resistance Tester 4229f

AMB 45 Insulation Resistance Tester 91ca6

AMB 45 Insulation Resistance Tester a19a8

Test insulation of wires, cables, transformers and electrical motors quickly and easily with this rugged tester.

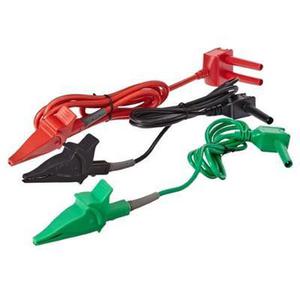

The AMB-45 comes with test leads, software and download cable, eight (8) 1.5 V AA batteries (installed), user's manual, and a carrying case.

• Tests insulation of wires, cables, transformers and electrical motors
• Comes as a complete kit including test leads and PC software
• Selectable test voltages 250 V, 500 V and 1000 V
• Programmable timer to perform the dielectric absorption ratio test
• Sensitive Ohmmeter for checking resistance of motor windings
• Built in voltmeter
• Fast and easy to use, rugged durable design
• Internal memory to store measurements for future reference
• Data download to PC

	AMB-45
Insulation Resistance (100 V DC)	-
Insulation Resistance (250 V DC)	4.000 MΩ, 40.00 MΩ, 400.0 MΩ, 4000 MΩ
Insulation Resistance (500 V DC)	4.000 MΩ, 40.00 MΩ, 400.0 MΩ, 4000 MΩ
Insulation Resistance (1000 V DC)	4.000 MΩO, 40.00 MΩ, 400.0 MΩ, 4000 MΩ
Resistance (9 V)	400.0 MΩ, 4000 Ω
Voltage AC/DC	600.0 V
