` CD-6MC/12MC Carbon Dioxide Fixed Gas Detectors
  2. Gas Detectors / Sensors / Transmitters
  3. CD-6MC/12MC Carbon Dioxide Fixed Gas Detectors
CD-6MC/12MC Carbon Dioxide Fixed Gas DetectorsAlpha Controls & Instrumentation Inc.
CD-6MC/12MC Carbon Dioxide Fixed Gas DetectorsAlpha Controls & Instrumentation Inc.1

Macurco

CD-6MC/12MC Carbon Dioxide Fixed Gas Detectors

May be used as a stand-alone detector & controller & as an analog transducer for use w/ the DVP-120 & other systems

Starting At
$990.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The CD-6MC is a low voltage monitor providing automatic fan control to help maintain acceptable levels of Carbon Dioxide in the beverage and food industries, refrigeration, welding, greenhouses, pharmaceutical, and other chemical processing, or other commercial applications – Can be used as a stand-alone detector and controller and as an analog transducer for use with the DVP-120 and other systems – ETL Listed

The CD-12MC is a line voltage monitor providing automatic fan control to help maintain acceptable levels of Carbon Dioxide in the beverage and food industries, refrigeration, welding, greenhouses, pharmaceutical, and other chemical processing or other commercial applications – Can be used as a stand-alone detector and controller and as an analog transducer for use with the DVP-120 and other systems – ETL Listed



• 12-24 VAC or 12-32 VDC input/ 12-MC: 100-240VAC input
• 5A SPDT Fan control relay
• 0.5A N.O. or N.C. Alarm Relay
• Selectable Fan and Alarm Relay Actuation Settings
• Digital Display (0-5000ppm of CO2), Internal Buzzer
• Coverage Area:  900 sq. ft.
• 4-20mA current loop

Size 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
Weight 1 pound (0.45 kg)
Voltage/Current 6-Series
Power: 3 W (max) from 12 to 24 VAC or
12 to 32 VDC :Current @ 24 VDC: 75 mA in
alarm, 50 mA fan relay on and 23 mA stand by
12-Series
Power: 100-240 VAC (50 to 60 HZ)
Current: 1.0 A MAX
Operating Temperature 0°F to 125°F (-18°C to 52°C)
CD-6/12H 32°F to 122°F (0°C to 50°C)
Ambient Humidity 10-90% RH NonCondensing
Display LED (can turn on/off)
Current Loop Analog 4-20mA, with MRS-485 Adapter
Digital Modbus
Mounting 4” x 4” electrical box
Relays 5A Fan Relay & 0.5A Alarm Relay
User Adjustable Settings
Certifications ETL Listed
Warranty Two Year Limited Warranty

• Parking Garages
• Mechanical Rooms
• Restaurants
• Battery Charging Stations
• Breweries
• Storage Facilities
• Loading Docks
• Warehouses
• Firehouses & Ambulance Bays
• Refrigeration Facilities
• Vehicle Repair Facilities
• Bus Depots

Item
Description
Availability
Price

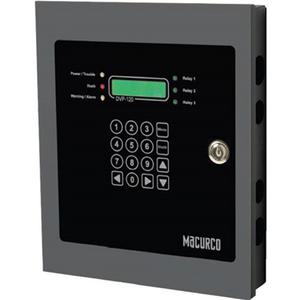

DVP-120 Detection Ventilation Control Panels
DVP-120 Detection Ventilation Control Panels
Designed to meet specifications for safety in enclosed parking garages, including the uniform building code & OSHA 50ppm CO requirements
Normally ships in 3-4 Weeks
Starting At
$2,606.00 CAD
Configure
MRS-485 Addressable Adapter
MRS-485 Addressable Adapter
Converts the 4-20mA analog signal from Macurco 6-Series type detectors to a digital signal for use w/ multipoint addressable systems
Normally ships in 3-4 Weeks
$240.00 CAD
HS Horn & Strobe Series
HS Horn & Strobe Series
Devices use low current to provide a high decibel output & can be easily seen & heard from afar
Normally ships in 3-4 Weeks
Starting At
$346.00 CAD
Configure

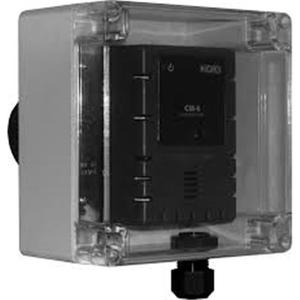

DMK-1 Duct Mounting Kit
DMK-1 Duct Mounting Kit
Airtight enclosure that provides a means to mount any Macurco gas detector to an air duct
Normally ships in 3-4 Weeks
$375.00 CAD

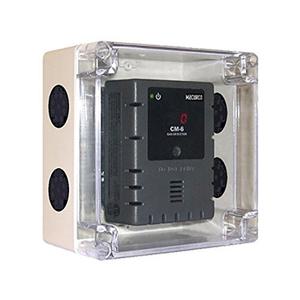

WHK-1 Weatherproof Housing Kit
WHK-1 Weatherproof Housing Kit
Weather-proof enclosure that provides means to protection-mount all Macurco 6-Series gas detectors in non-hazardous locations
Normally ships in 3-4 Weeks
$364.00 CAD

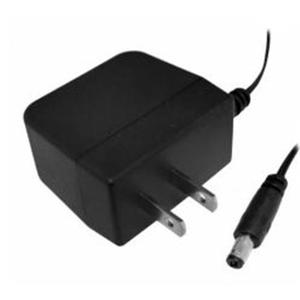

PS-24 Plug-In Adaptor
PS-24 Plug-In Adaptor
Plug in adaptor for 6 series, horn and strobe, CM-E1, GD-2B
Normally ships in 2-3 Weeks
Starting At
$80.00 CAD
Configure
CD6-FTK Carbon Dioxide Field Test Kit
CD6-FTK Carbon Dioxide Field Test Kit
CD-6 / CD-12 carbon dioxide CO2 field test kit, 17L 5000 ppm, 0.2 LPM regulator
Normally ships in 3-4 Weeks
$769.00 CAD

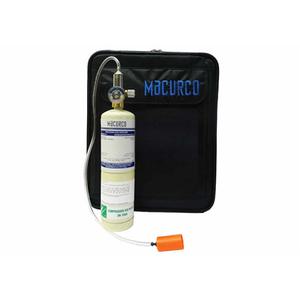

CD6-FCK Carbon Dioxide Field Calibration Kit
CD6-FCK Carbon Dioxide Field Calibration Kit
Accompanied with 17L 2000PPM, carry case, regulator, tubing, calibration hood
Normally ships in 3-4 Weeks
$846.00 CAD
CO2 400 PPM Carbon Dioxide Calibration Gas Canister
CO2 400 PPM Carbon Dioxide Calibration Gas Canister
Carbon dioxide calibration gas canister, 17L 400 ppm
Normally ships in 4-6 Weeks
$118.00 CAD
CO2 5000 PPM Carbon Dioxide Test Gas Canister
CO2 5000 PPM Carbon Dioxide Test Gas Canister
Carbon dioxide test gas canister, 17L 5000 ppm
Normally ships in 4-6 Weeks
$118.00 CAD
