DPMW LCD Digital Panel Meter
3-1/2 digit, high contrast LCD, jumper selectable engineering units and decimal point positions
The Series DPMW LCD Digital Panel Meter is designed with a 3-1/2 digit, high contrast LCD. It can be quickly installed in a 2.31 in (58.4 mm) x 0.91 in (22.9 mm) panel cutout. This unit accepts a 4 - 20 mA input signal from a pressure, level, flow, or temperature transmitter and requires a 24 VDC power supply to illuminate the colored segments.
• Window mounts
• 3-1/2 digit display with 0.45 in (11 mm) segments
• Colored segments available in black, red, amber, green, or blue
• Jumper selectable engineering units and decimal point positions
• Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters
Accessories
![DPM 12 P24 P Power Supply 05247]()

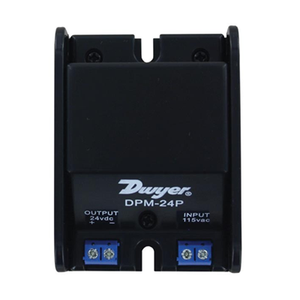

DwyerDPM-12P/24P Power Supply
Regulated 120 VAC - 12 or 24 VDC power supply
Starting at$90.01 CADNormally ships in 3-4 weeks
