DVP-120 Detection Ventilation Control Panels

Designed to meet specifications for safety in enclosed parking garages, including the uniform building code & OSHA 50ppm CO requirements

Starting At
$2,606.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Macurco controller family has various options to meet your facility's needs. In conjunction with Macurco gas detectors, these controllers provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems easily configure, making installation hassle-free. The control panel series are designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With multiple control panel options Macurco will help you find the suitable controller for your specific application.

• DVP-120: 12 analog (4-20mA) sensor connections
• DVP-120M: 87 digital sensor connections (RS-485) + 12 analog (4-20mA) sensor connections
• Three 10A SPDT fan/alarm relays
• Two 24VDC drivers for horn/strobe
• Compatible with Macurco 6-Series
• Auto recognizes Macurco detectors
• Settings are customizable, default is per OSHA
• DVP-120B: BACnet MSTP output
• DVP-120C: Title 24 compliant (CO & NO2 only)

Size 10.5” x 12.5” x 2.” (10.5 X 37.75 X 5.08 cm)
Weight 6.5 lbs (2.9 kg)
Voltage/Current Power Input: 90 – 250 VAC,
1 Amp, 47 – 63 Hz, single phase
Operating Temperature 32°F to 120°F (0°C to 49°C)
Ambient Humidity 0% to 90% RH non-condensing
Display LCD display: 2 rows of 16 characters
with backlight
Mounting Mounting holes in each corner
Relays Three 10A, 240 VAC SPDT fan/alarm relays
Settings External keypad for user selection of the
transducer/alarm display and setting the
configuration
Status Indicators (LED): Power, ALARM/warning, hush,
Relay 1, Relay 2 & Relay 3
Alarms Drivers for external Horn and Strobe, externally
visible system, alarm and relay status indicators
Enclosure Lockable NEMA 1 type enclosure
Certifications ETL Listed to UL 2017
CAN/CSA-C22.2 No.
14-13, LADBS Approved
Warranty Two Year Limited Warranty

• Parking Garages
• Car Dealerships
• Ambulance/Fire House Bays
• Warehouses
• Manufacturing
• Loading Docks
• Mechanical Rooms
• Distribution Centers
• Vehicle Repair Facilities
• Bus Depots

Item
Description
Availability
Price

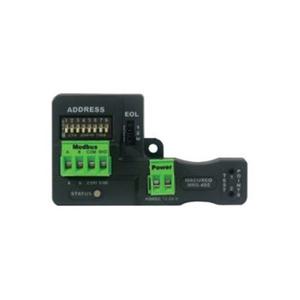

MRS-485 Addressable Adapter
MRS-485 Addressable Adapter
Converts the 4-20mA analog signal from Macurco 6-Series type detectors to a digital signal for use w/ multipoint addressable systems
Normally ships in 3-4 Weeks
$240.00 CAD

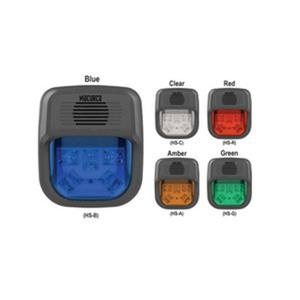

HS Horn & Strobe Series
HS Horn & Strobe Series
Devices use low current to provide a high decibel output & can be easily seen & heard from afar
Normally ships in 3-4 Weeks
Starting At
$346.00 CAD
Configure
MAC Power Supply
MAC Power Supply
115VAC, 60 Hz power supply
Normally ships in 3-4 Weeks
Starting At
$968.00 CAD
Configure
