EE150 HVAC Humidity/Temperature Transmitter
Designed for HVAC applications, IP65/NEMA 4 compact enclosure, outstanding price/performance ratio
The EE150 humidity and temperature transmitter has been optimised specifically for use in the HVAC and building automation and impresses with an outstanding price/performance ratio.
The clever housing concept, the compact design and the Ø 6mm probe simplify istallation, which results in minimised installation costs.
The IP65/NEMA 4 enclosure provides optimal protection of the electronics, while the capacitive E+E humidity sensor element stands for long-term stable measurement results.
• Voltage or current analogue outputs
• Optional passive T-output
• IP65/NEMA 4 enclosure
• ∅ 6mm stainless steel probe
• Teflon protection cap
• Resistant to pollution
• Easy mounting
• User configurable and scalable
• Free configuration software
| Measuring Range | 10...90% RHv -5...55°C (23...131°F) |
| Accuracy | ±3% RH (30...70% RH), otherwise ±5% RH ±0.3°C |
| Analogue Outputs | 0-10 V or 4-20 mA (2-wire) |
| Supply | 24 V AC/DC |
• Heating, Ventilation and Air Conditioning
• Building automation systems
Item
Description
Availability
Price

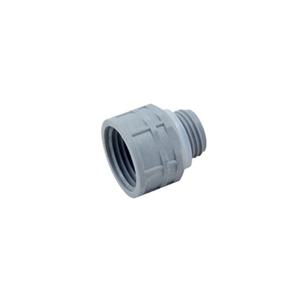

Conduit Adapter US. M16x1,5 - 1/2", plastic
Normally ships in 2-3 Weeks
$32.00 CAD
EE-PCA cable for EE150, EE4x1 analogue
Normally ships in 2-3 Weeks
$804.00 CAD
View All Part Numbers
