EE23 Industrial Humidity/Temperature Transmitter
Cost optimised transmitter for industrial and high-end HVAC applications up to 120°C (248°F)
The EE23 is a cost optimised, reliable transmitter for industrial and high-end climate control applications in the range -40...180 °C (-40...356 °F). It measures accurately relative humidity (RH) and temperature (T) and calculates the dew point (Td) and the frost point (Tf).
EE23 is available for wall or duct mount, with remote probe, as well as with miniature remote probe. The modular enclosure facilitates mounting, wiring, replacement and maintenance.
The measured data is available on two analogue outputs, an alarm output and on the LCD display. The E+E proprietary coating protects the sensing elements against corrosive and electrically conductive pollution.
EE23 is user configurable and adjustable with push buttons on the electronics board or via software.
• Temperature range -40...180 °C (-40...356 °F)
• Analogue and alarm outputs
• IP65 / NEMA 4 modular enclosure in polycarbonate or aluminum
• LCD display
• Integrated power supply unit 100...240V AC, 50/60Hz
• Sensor coating for polluted environments
• Wide choice of filter caps
• User configurable and adjustable
| Measuring Range | 0...100% RH -40...180 °C (-40...356°F) |
| Accuracy | ±1.3% RH ±0.2 °C (±0.36 °F) |
| Outputs | 0-5/10 V, 0/4-20mA |
| Supply | 24 V AC/DC |
• Industrial process control
• High-end climate control
Item
Description
Availability
Price
Bracket for DIN rail mounting
Normally ships in 2-3 Weeks
$24.00 CAD
Filter cap without membrane; RAL7035 polycarbonat
Normally ships in 2-3 Weeks
$42.00 CAD
Radiation shield w/clamp ring (M20x1.5)
Normally ships in 2-3 Weeks
$554.00 CAD
_08099_th.jpg)

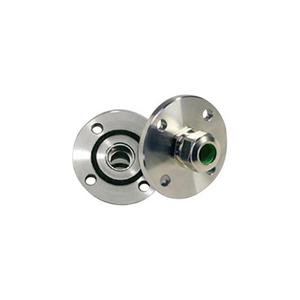

Stainless steel flange 12mm (0.47")
Normally ships in 2-3 Weeks
$232.00 CAD
Stainless steel grid filter cap
Normally ships in 2-3 Weeks
$298.00 CAD
Stainless steel sintered filter
Normally ships in 2-3 Weeks
$93.00 CAD
Stainless steel wall mounting clip, 012mm (0.47")
Normally ships in 2-3 Weeks
$62.00 CAD
View All Part Numbers
