E+E Elektronik

EE244 Wireless Temperature / RH / CO2 Transmitter

Modular wireless transmitter/router is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz and measures up to three physical quantities: relative humidity, temperature and CO2

Starting At
$1,360.00 CAD
Normally ships in 2-3 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The EE244 modular wireless transmitter/router is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz and measures up to three physical quantities: relative humidity, temperature and CO2.

It accomodates up to 3 sensing probes, which can be plugger directly onto the EE244 basic unit or with a connection cable up to 10 m long. The robust enclosure features an external antenna and an optional display.

EE244 wireless transmitter is powered by four alkaline AA batteries, but can also be connected to an external power supply. Depending on the number of probes, the physical quantities measured, and the sampling and transmission rate, the batteries may last up to 3 years.





• Measurement of temperature, humidity and CO2
• Pluggable, interchangeable sensing probes
• Remote sensing probes at up to 10 metres
• Powered by 1.5 V AA standard batteries or by external supply
• Battery life of up to 3 years
• Optional display
• Robust enclosure with external antenna


Measuring Values Humidity, temperature, CO2
Transmission Frequency 2.4 GHz
Transmission System IEEE 802.15.4
Transmission Power 10 mW
Radio Range 1000 m in open field

• Pharmaceutical Industry
• Warehouses
• Control Rooms
• Cooling Chambers
• Museums
• HVAC Systems
• Food Industry

Item
Description
Availability
Price

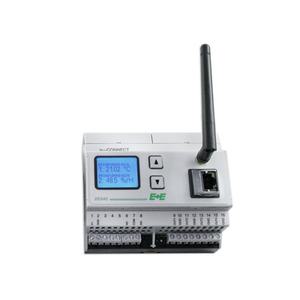

Base station for a network of up to 500 wireless transmitters for temperature, humidity and CO2
Normally ships in 3-4 Weeks
Starting At
$2,368.00 CAD
Configure
