EE260 Heated Humidity/Temperature Probe for Meteorology

Provides precise and reliable measurement results even in the case of permanent high humidity

Starting at

$2,839.35CAD

Have questions? We're here to help!

Call

Configure

Used in

EE260 Heated Humidity Temperature Probe for Meteorology 07206

The EE260 humidity and temperature probe has a dual heating system (sensing element and probe heating). This prevents condensation on the RH sensing element, the sensing head and the filter cap. The probe therefore provides precise and reliable measurement results even in the case of permanent high humidity. Another benefit of the dual heating system is the very short response time and a fast recovery after condensation. The E+E sensor coating improves the long-term stability and service life in dusty and corrosive environments. The innovative enclosure of the EE260 combines a heated humidity sensing head and an additional temperature sensing element in a single probe. Due to its compact design, the probe is compatible with commercially available rotationally symmetric sensor radiation shields. The robust IP67 enclosure made of UV- and heat-resistant elastomer protects the internal electronics from environmental influences and mechanical damage. The EE260 probe provides the measured data simultaneously on two freely configurable voltage outputs and via the RS485 interface (Modbus RTU). Based on the measured humidity and temperature values, the EE260 calculates further humidity-related quantities such as the dew point temperature, absolute humidity or mixing ratio.

• Excellent measurement performance and high accuracy in the high humidity range

• Compact, robust IP67 enclosure

• Heated RH sensing element and heated sensing head

• Two freely configurable voltage outputs

• Integrated T sensing element

• RS485 interface with Modbus RTU protocol

• Short response time and a fast recovery after condensation

• Calculation of all relevant humidity related quantities

• E+E sensor coating against pollution and corrosion for best long term stability

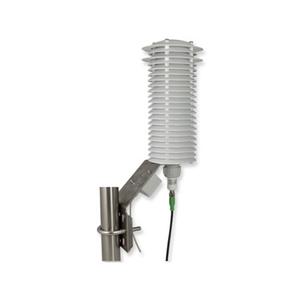

• Compatible with rotationally symmetric sensor radiation shields

Accuracy - Humidity	±1.3% RH
Measurement Range - Temperature	-60...60 °C (-76...140 °F)
Accuracy - Temperature	analogue: 0.15 °C (0.27°F) digital: 0.1 °C (0.18°F)
Analogue Outputs	0-1/2.5/5/10V
Supply Current	7 - 30 V DC
Digital Interface	RS485 with Modbus RTU
Measurement Range - Humidity	0...100% RH

• Meteorological weather stations

• Weather warning systems (road traffic, airports)

• Detection of icing hazard

Download
Manual - EE260 Heated Humidity/Temperature Probe for Meteorology
Download
Download
Data Sheet - EE260 Heated Humidity/Temperature Probe for Meteorology
Download
