Lascar

EL-USB-1-PRO Industrial Temperature Data Logger

Industrial temperature data logger with USB and extended temperature range


$216.00 CAD
Normally ships in 1-2 Weeks


  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

This standalone data logger measures more than 32,000 readings over a -40 - 125°C (-40 - 257°­­F) range. Its robust stainless steel assembly provides protection from corrosion, impact and water ingress to IP67/NEMA 4X.

Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with a specialist high temperature 2/3 AA battery.



• -40 - 125°C (-40 - 257°F) measurement range
• Stores over 32,000 readings
• EasyLog software available as a free download
• Stainless steel (316 grade) case
• Logging rates between 1 s and 12 h
• Immediate and delayed logging start
• User-programmable alarm thresholds
• Environmental protection to IP67

Measurement Range -40 - 125C (-40 - 257F)
Internal Resolution 0.1C (0.2F)
Accuracy (Overall Error) +/- 0.2C (+/- 0.4F)
Logging Rate User selectable between 1 s and 12 h
Operating Temperature Range -40 -125C (-40 - 257F)
Battery Life 2 years (at 80C and 10 s logging rate)
Readings 32,510
Dimensions 110 mm x 18 mm (4.33" x 0.70")

• Transportation
• Food & Drink
• Building and Site Monitoring

Item
Description
Availability
Price

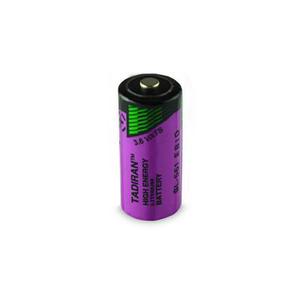

BATT 3V6 2/3AA H TEMP High Temperature Battery
High temperature battery for EL-USB-1-PRO
Normally ships in 1-2 Weeks
$22.94 CAD
EL-Datapad Data Collector
Handheld programmer and data collector for the EasyLog USB range of data loggers
Normally ships in 1-2 Weeks
$344.24 CAD
