EL-USB-1 Temperature Data Logger
Measures and stores more than 16,000 temperature readings over a large temperature range
This standalone data logger can take more than 16,000 readings over a -35 - 80°C (-31 - 176°F) measurement range. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis.

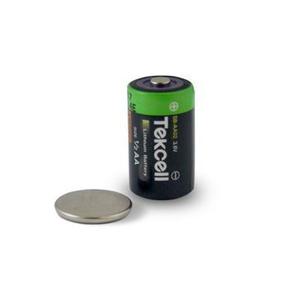

Supplied with 1/2 AA battery and wall mount clip. Calibration certificate available to purchase separately.
▪ -35 to 80°C (-31 to 176°F) measurement range
▪ Stores over 16,000 readings
▪ EasyLog software available as a free download
▪ Logging rates between 10 s and 12 h
▪ Immediate and delayed logging start
▪ User-programmable alarm thresholds
▪ Status indication via red/green and amber LEDs
▪ Environmental protection to IP67
| Measurement Range | -35 - 80°C (-31 - 176°F) |
| Internal Resolution | 0.5°C (1°F) |
| Accuracy (Overall Error) | +/- 1°C (+/- 2°F) |
| Logging Rate | User selectable between 10 s and 12 h |
| Operating Temperature Range | -35 - 80°C (-31 - 176°F) |
| Battery Life | 3 years (at 25°C and 1 min logging rate) |
| Readings | 16,382 |
| Dimensions | 99 mm x 25 mm x 23 mm (3.89" x 0.98" x 0.90") |
| Lascar EL-USB-1 Temperature Data Logger - Data Sheet 876.8 KB |
| Lascar EL-USB-1 Temperature Data Logger - Quick Start Guide 1.7 MB |
