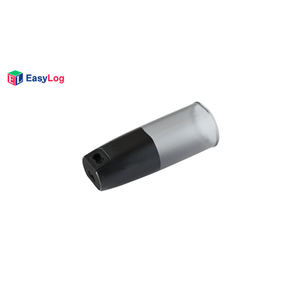

This standalone data logger measures more than 32,000 readings over a 0 - 30 VDC range at a resolution of 5 mVDC. The data logger is supplied with a 0 - 30 VDC cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with 1/2 AA battery and wall mount clip.
• 0 - 30 VDC measurement range
• Stores over 32,000 readings
• Logging rates between 1 s and 12 h
• Connection via two screw terminals
• Immediate and delayed logging start
• User-programmable alarm thresholds
• Status indication via red and green LEDs
• EasyLog software available as a free download
| Measurement Range | 0 to 30 VDC |
| Accuracy | ±1% |
| Readings | 32,510 |
| Logging Rate | User selectable between 1 second and 12 hours |
| Battery Life | 3 years |
| Lascar EL-USB-3 Voltage Data Logger with USB - Data Sheet 770.2 KB |
| Lascar EL-USB-3 Voltage Data Logger with USB - Quick Start Guide 886.5 KB |
