EggTemp-RH Egg Temperature and Humidity Data Logger

Designed to measure and record the humidity and temperature of eggs during shipping, storage and incubation

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!

Call

Egg Temp RH Egg Temperature and Humidity Data Logger 01795

MadgeTech's EggTemp-RH data logger is specifically designed to measure and record the humidity and temperature of eggs during shipping, storage and incubation. The data logger thermally responds to an environment the same way a real egg does, simulating the humidity and temperature experience of the actual product.

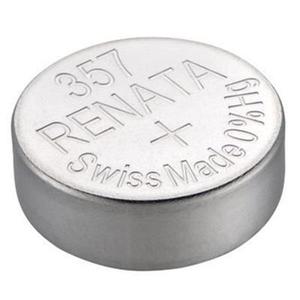

The EggTemp-RH can measure 0% RH - 95% RH and up to 60°C (140°F). It has a user replaceable battery that typically lasts up to 1 year. The nonvolatile memory can hold up to 32,767 readings and will retain data even if the battery becomes discharged. MadgeTech's data logger software offers an easy way to analyze data. Data can be viewed in Celsius or Fahrenheit, and in graph, summary or data formats. For further analysis, data can also be exported to Excel.

• Reusable
• Programmable start time
• User-friendly
• Low cost
• 0ºC - 60ºC temperature range and 0% RH - 95% RH humidity
• ± 0.5ºC and ± 3.0% RH accuracy
• 0.1ºC and 0.5% RH resolution

Temperature Sensor	Internal semiconductor
Temperature Range	0 to +60 °C (+32 °F to +140 °F)
Temperature Resolution	0.1 °C (0.18 °F)
Temperature Calibrated Accuracy	±0.5 °C
Humidity Sensor	Internal semiconductor
Humidity Range	0 %RH to 95 %RH
Humidity Resolution	0.5 %RH
Humidity Calibrated Accuracy	±3.0 %RH
RH Units	%RH, dew pt., water vapor, concentration (mg/hl)
Memory	16,383/channel
Reading Rate	1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate	38,400
LED Indicators	Red & Green
Battery Life	1 year
Material	Enclosure: HDPE Logger: Stainless Steel
Dimensions	2.25 in x 1.68 in dia. (57.15 mm x 42.67 mm)
IP Rating	IP30
Operating Environment	0 °C to +60 °C (+32 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	IFC102
Weight	LBS

Temperature
Temperature Sensor	Internal semiconductor
Temperature Range	0°C - 60°C (32°F - 140°F)
Temperature Resolution	0.1 °C (0.18°F)
Calibrated Accuracy	± 0.5°C
Humidity
Humidity Sensor	Internal semiconductor
Humidity Range	0% RH - 95% RH
Humidity Resolution	0.5% RH
Calibrated Accuracy	± 3.0% RH
RH Units	%RH, dew pt., water vapor, concentration (mg/hl)
Specified Accuracy Range	10°C - 40°C (50°F - 104°F) 10% RH - 0% RH
General
Memory	16,383 readings per channel, 32,766 total readings
Reading Rate

• Egg shipment
• Egg storage
• Hatcheries

Download
Manual - EggTemp-RH Egg Temperature and Humidity Data Logger
Download
Download
Data Sheet - EggTemp-RH Egg Temperature and Humidity Data Logger
Download
