Fyrite Classic Gas Analyzer

Fast and accurate instrument for measuring O₂ and CO₂

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!

Call

Used in

Also found in

The Fyrite® Classic is a tried-and-true instrument for measuring oxygen and carbon dioxide. The Fyrite® Classic is available for O₂ or CO₂, and each gas type of Fyrite® is available in multiple ranges to meet a variety of applications, from combustion analysis to incubators to anesthesiology.

The Fyrite® Classic contains fluid that is specifically designed to absorb O₂ or CO₂ with minimal cross-sensitivities to other gases, which leads to accurate readings. It is easy to test the fluid’s strength and replace it when needed – which means no need to return the unit for service and no downtime.

• Measure O₂ and CO₂ simply, accurately and quickly

• Multiple ranges available for use in a wide variety of applications

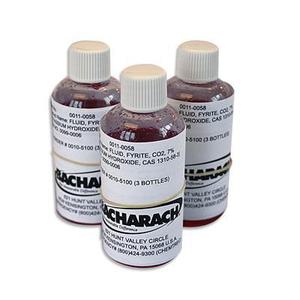

• Field-replaceable, easy-to-change fluid for keeping the instrument in the field

Measurements	O₂: 0 to 7.6, 0 to 21 and 0 to 60% CO₂: 0 to 7.6, 0 to 20 and 0 to 60%
Maximum Number of Samples (approximate)	O₂: 100 CO₂: 300
Resolution	0 to 7.6% range: 0.2% 0 to 20/21% range: 0.5% 0 to 60% range: 2%
Size (H x W x D)	7.4 x 3.1 x 3.1 in. (18.8 x 7.9 x 7.9 cm)
Weight	1.2 lb. (0.54 kg) unfilled
Operating Conditions	-30 to 150 °F (-34 to 65 °C)
Maximum Gas Temperature	850 °F (454 °C)
Warranty	1 year
Measuring Range:	O2: 0 to 21 and 0 to 60% CO2: 0 to 20
Resolution:	0 to 20/21% range: 0.5%, 0 to 60% range: 2%
Maximum Gas Temperature:	850 °F (454 °C)
Ambient Temperature:	-30 to 150 °F (-34 to 65 °C)
Product Dimensions (L×W×H):	7.4" × 3.1" × 3.1" (18.8 × 7.9 × 7.9 cm)
Product Weight:	1.2 lb. (0.54 kg) unfilled
Expected Sensor Service Life:	O2: 100 CO2: 300
Warranty:	1 Year
