Fyrite INSIGHT Plus Combustion Analyzer

Combustion analyzer that measures O2., CO2., temperature, and pressure using innovative Tune-Rite software

Starting At
$2,268.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

INSIGHT® Plus is the perfect tool for busy residential/light-commercial technicians who need to ensure safe operating conditions and determine combustion efficiency. Powered by innovative Tune-Rite® software (patent pending), the industry’s first-ever on-demand HVAC “assistant,” the INSIGHT® Plus helps both new and seasoned technicians save money by making more thorough and efficient service calls.

The INSIGHT® Plus includes sensors for Oxygen (O2) and Carbon Monoxide (CO), which includes a built-in NOx filter.   The O2 sensor has a 3 year warranty, while the CO sensor can be replaced in the field without down time using B-Smart® pre-calibrated sensors. The INSIGHT® Plus calculates values like efficiency, CO2* and CO air-free to help monitor combustion processes effectively and accurately.



• All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, temperature and draft
• Industry-exclusive Tune-Rite HVAC assistant analyzes combustion data and provides real-time troubleshooting suggestions
• Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
• Long life O2 sensor with 3 year warranty reduces maintenance costs and downtime
• Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas
• Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)

Measurements O2.: 0 to 20.9%
CO (w/integrated NOx. filter): 0 to 4000 ppm
Stack temperature: -4 to 1202 °F (-20 to 650 °C)
Primary/ambient air temperature: -4 to 600 °F (-20 to 316 °C)
Draft/differential pressure: ± 40 in H2.O (±10 mbar)
Display 2.8 in. (72 mm) color LCD w/backlight
Power 4x AA batteries or optional USB wall adapter
Run Time 15 hours minimum (alkaline batteries)
Size (H x W x D) 8.0 x 3.6 x 2.3 in. (20.3 x 9.1 x 5.8 cm)
Weight 1 lb. (0.45 kg) including batteries
Fuels[1] Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel, +2 optional custom fuels
Operating Conditions 23 to 113 °F (-5 to 45 °C), 15 to 90% RH (non-condensing), 1 ATM ± 10%
Warm-up Time 30 to 60 seconds
Memory 100 locations
Communications USB 2.0 (mini-B), IrDA
Warranty 2 years (including sensors)
3 years for long-life O2. sensor, if equipped
[1] Depending upon combustion equation setting (North American or Siegert) – see manual for details

• Carbon Monoxide
• Oxygen

Item
Description
Availability
Price

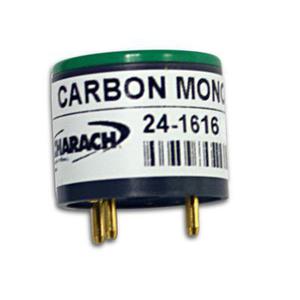

B Smart CO Sensor - Fyrite INSIGHT Plus
B Smart CO Sensor - Fyrite INSIGHT Plus
B Smart CO sensor for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$400.00 CAD

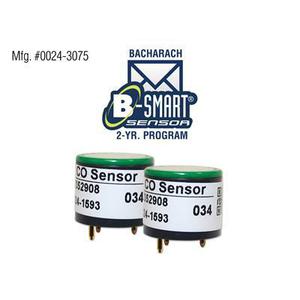

B Smart CO Sensor Exchange Program (2 yrs.) - Fyrite INSIGHT Plus
B Smart CO Sensor Exchange Program (2 yrs.) - Fyrite INSIGHT Plus
B smart CO sensor exchange program for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$361.00 CAD
O<sub>2</sub> Sensor (2 yrs.)
O2 Sensor (2 yrs.)
O2 Sensor (2 yrs.) for the PCA3, Fyrite INSIGHT Plus, Fyrite InTech, and Monoxor Plus
Normally ships in 1-2 Weeks
$288.00 CAD
User Software Reporting Kit
User Software Reporting Kit
User software reporting kit for the PCA3, Fyrite INSIGHT Plus, Fyrite InTech, and Monoxor Plus
Normally ships in 1-2 Weeks
$618.00 CAD

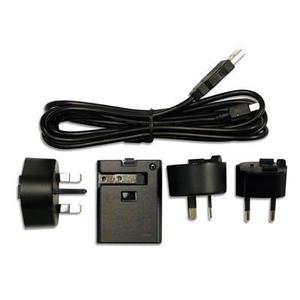

Wall Adapter Kit
Wall Adapter Kit
Wall adapter kit for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$102.00 CAD
Printer Paper (5 rolls)
Printer Paper (5 rolls)
Printer paper (5 rolls) for the PCA3, Fyrite INSIGHT Plus. Fyrite InTech, and Monoxor Plus
Normally ships in 1-2 Weeks
$68.00 CAD
Probe Filters (3 pk.)
Probe Filters (3 pk.)
Replacement probe filters (3 pk.) for the water trap for the PCA3. Fyrite INSIGHT Plus. Fyrite InTech. Monoxor Plus. and ECA 450
Normally ships in 1-2 Weeks
$80.00 CAD
Thermocouple
Thermocouple
Thermocouple for the PCA3, Fyrite INSIGHT Plus, and ECA 450
Normally ships in 1-2 Weeks
Starting At
$78.00 CAD
Configure
Differential Pressure and Temperature Kit
Differential Pressure and Temperature Kit
Differential pressure and temperature kit for the PCA3 and Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$171.00 CAD
Water Trap/Filter Assembly
Water Trap/Filter Assembly
Water trap/filter assembly (for probe hose assembly) for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$116.00 CAD
True Spot Smoke Test Set
True Spot Smoke Test Set
True Spot smoke test set for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$259.00 CAD
IrDA Printer
IrDA Printer
IrDA printer with magnet and disposable batteries for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$544.00 CAD
Oxygen Sensor Cap
Oxygen Sensor Cap
Oxygen sensor cap (for 2-year sensor, includes gasket) for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$29.00 CAD
Fyrite User Software CD
Fyrite User Software CD
Fyrite user software CD for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$62.00 CAD
Replacement CO Sensor with NO<sub>x</sub> Filter
Replacement CO Sensor with NOx Filter
Replacement CO Sensor with NOx Filter (not calibrated) for the Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$335.00 CAD
Probe and Hose Assembly
Probe and Hose Assembly
Probe and hose assembly for the PCA3 and Fyrite INSIGHT Plus
Normally ships in 1-2 Weeks
$386.00 CAD
