GD-2A Combustible Gases Detector
Provides combustible / heating gas detection in residential, multi-family and commercial office environments
The Macurco GD-2B and GD-2A combustible gas detectors are reliable, lightweight, and aesthetically pleasing gas detectors made to keep you and the people you care about safe from harmful gases in residential and light commercial applications. They are low-voltage gas detectors designed for use with fire and security systems. The GD-2A is UL 2075 Listed for use in residential and commercial applications and is also approved by the California State Fire Marshal.
• Low replacement costs with long-life sensors
• Low maintenance with no calibration needed
• Local alarms (GD-2B only)
• Clip-in wire harness (GD-2B only) for in and out replacement
• Aesthetically pleasing. Flush mount or surface options
• Ties into any Fire/Burglary panel for local and remote monitoring
• Made in America
| Size | 4.5”(H) x 5”(L) x 1.62”(W) |
| Shipping Weight | 0.5 lb. (8 oz.) |
| Voltage | 9-32 VDC or 12-24 VAC |
| Sensor Life | 5 years w/EOL |
| Operating Temperature | 32°F to 120°F (0°C to 48.9°C) |
| Relays | Alarm Relay: .125 A, 40 V, 3 VA Trouble Relay: .250 A, 40 V, 10 VA |
| Status Indicators | : LED (Red alarm, green normal, alternating red/green trouble) |
| Alarms | Per UL 1484, 25% LEL |
| Approvals / Certifications | UL 2075 Listed. Tested to 1484 standard for residential gas detectors GD-2B Sensitivity tested based on UL |
| Warranty | Two Year Limited Warranty |
• Homes
• Schools / university dorms
• Hotels / condos
• Offices
• Retail stores
• Common rooms / lobbys
• Apartments
• Airports
• Other light commerical environments
| Macurco GD-2A Combustible Gases Detector - Manual 484.7 KB |
| Macurco GD-2A Combustible Gases Detector - Data sheet 2 MB |
Item
Description
Availability
Price
Airtight enclosure that provides a means to mount any Macurco gas detector to an air duct
Normally ships in 3-4 Weeks
$375.00 CAD
Weather-proof enclosure that provides means to protection-mount all Macurco 6-Series gas detectors in non-hazardous locations
Normally ships in 3-4 Weeks
$364.00 CAD

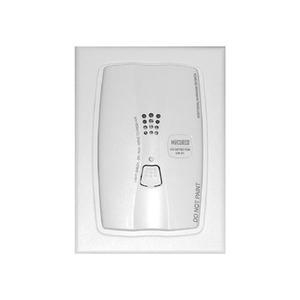

CM-E1 / GD-2B installation adapter kit, also available in 10 pack
Normally ships in 3-4 Weeks
Starting At
$29.00 CAD
$29.00 CAD
