Analytical Industries Inc

GPR-1000 Oxygen Analyzer

Measures oxygen below 1,000ppm with an LDL of 5ppm and is temperature compensated, intrinsically safe option

Starting At
$2,685.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The AII GPR-1000 Oxygen Analyzers is designed for measuring oxygen below 1,000ppm. The GPR-1000 oxygen meter can also be operated up to 1% range. The GPR-1000 is supplied with brass fittings. Available options for the GPR-1000 include XLT sensor backgrounds, stainless steel fittings, weld purge kit. Ranges for for the GPR-1000 include 0 to 1,000ppm & 0 to 1% (0 to 25% for calibration only).

Applications for the GPR-1000 include:

• Oxygen and nitrogen generators
• Storage holds on marine vessels post maintenance
• Oxygen in tankers during delivery
• Metal treatment processes
• Leak checking processes
• Double glazing manufacture
• Welding (under N2 or Ar purge)


• Measuring range: 0-1000 ppm, 0-1%, 0-25%
• Accuracy <2%
• 24 to 32 months sensor life span (in normal use)
• Internal pump option
• General purpose or intrinsically safe (ATEX) models
• 0 to 1V output
• 0.5-1.0 Nl/m (1-2 SCFH) flow rate
• XLT sensor options for CO2 backgrounds
• Lightweight: 2.5Kgs

Measurement Range 0-1000 ppm, 0-1%, 0-25%
Accuracy < 2% of selected range at constant conditions
Response Time T90 < 10 seconds
Recovery Time 60 sec in air to < 100 ppm in < 15 min on N2 purge
Sensitivity (LDL) 5 ppm
Linearity < 1% of scale
Sensor Model GPR-12-100-M
XLT-12-100-M for gas mixture with > 0.5% CO2
Sensor Life at 25C (77F) and 1 atm GPR-11-32-RTS 32 months in air
XLT-11-24-RTS 24 months in air
Calibration Interval 30 days
Inlet Pressure 0.34 - 2 barg (5-30 psig) with atmospheric vent
Flow Rate 0.5-1.0 l/m (1-2 SCFH)
Gas Connections 1/8" NPT quick connect
Wetted Parts Brass connections; stainless steel optional
Display Graphical LCD 7 x 3.5cm (2.75 x 1.375")
Resolution 1ppm
Enclosure Painted aluminum NEMA 4X,
10.1 x 22.9 x 7.6cm (4 x 9 x 3")
3.64kg (8lbs)
Compensation Barometric pressure and temperature
Signal Output 0-1V
LED Indicators LOW BATT (72 hr. warning); CHARGE mode
Operating Temperature 5C to 45C (41F to 113F) (GPR sensor),
-10 to 45C (14F to 113F) (XLT sensor)
Power Up to 30 days on a single charge (40 hours with pump running)
Area Classification ATEX: Ex ib IIB T4
Tamb +5C to +45C
Item
Description
Availability
Price

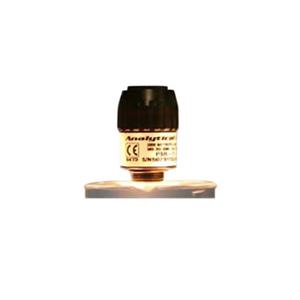

GPR-12-100-M Oxygen Sensor
Standard replacement sensor for the AII GPR-1000 oxygen analyzer
Normally ships in 1-2 Weeks
$296.00 CAD

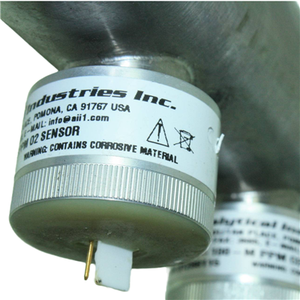

XLT-12-100-M Oxygen Sensor
Standard replacement sensor for gas mixtures with CO2 for use with the aII GPR-1000 oxygen analyzer
Normally ships in 1-2 Weeks
$302.00 CAD
