HiTemp140 High Temperature Data Logger

Rugged, high precision, high temperature data logger built for use in autoclaves and harsh environments

Starting At
$728.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless steel device is submersible and can withstand temperatures up to 140°C (284°F). With the HiTemp140’s standard calibration, an accuracy of ± 0.1°C (± 0.18 °F) can be achieved over a wide temperature range.

The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260°C (500°F). Custom probe lengths are available up to 7 in. The device records date and time stamped readings, and has non-volatile solid state memory which retains data even if the battery becomes discharged.

Using the MadgeTech Software, starting, stopping and downloading the HiTemp140 is simple and easy. To use, simply place the HiTemp140 in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.

The HiTemp140-TSK is a kit that includes a HiTemp140 data logger with either a 5.25 in probe or a 7 in probe style, housed in a thermal shield. The combined features of the 0.1% accuracy of the HiTemp140 and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. This rugged system can be placed in and withstand temperature from -200ºC - 250ºC, making it ideal for use in autoclave validation, monitoring food processing and dishwasher testing. The HiTemp140-TSK can be completely submerged and is built for applications that require extreme temperature monitoring. The HiTemp140-TSK flush style is designed to have the probe entirely exposed while the data logger is protected by the thermal sheild. This allows full use of the length of the probe for applications that require internal temperature monitoring. The Vented style offers more probe protection and is designed for shorter probe lengths in applications where the data logger might be subject to movement in a fully submerged application.

• ± 0.1°C (± 0.18°F) accuracy
• Operates up to 140°C (284 °F)
• Withstands temperatures between –200ºC - 250ºC (using thermal shield housing)
• Submersible (IP68)
• Battery life indicator
• User replaceable battery
• Rugged design
• Engraved label
• Probe lengths up to 7 in
• Programmable immediate or delay start
• Programmable stop time
• Up to 1 s reading rate

Temperature

Temperature Sensor

100 Ω Platinum RTD

Temperature Resolution

0.01°C (0.02°F)

Calibrated Accuracy

± 0.1°C / ± 0.18°F (20°C to 140°C / 68°F to 284°F)

± 0.3°C / ± 0.54°F (-20°C to 19.99°C / -4°F to 67.98°F)

± 0.4°C / ± 0.72°F (-40°C to -20.01°C / -40°F to -4.02°F)

Probe Temperature Range

-200°C - 260°C (-328°F - 500°F)

General

Memory

32,700 Readings

Reading Rate

1 reading every 1 s up to 1 reading every 24 hrs

Baud Rate

125,000

Wrap-Around

Yes

Start Modes

 Software programmable immediate start

Delay start up to 18 months in advance

Stop Modes

Manual or Timed (specific date and time)

Real-Time Recording

May be used with PC to monitor and record data in real-time

Password Protection

An optional password may be programmed into the device to restrict access and configuration options.

Data may be read without the password

Battery Type

3.6 V high-temperature lithium battery (included), user-replaceable

Battery Life

1 year typical at 1 min reading rate at 25°C (77°F)

Material

316 Stainless Steel

Weight

4.2 oz (120 g)

Dimensions (Probe)

HiTemp140-1

1.1 in x 0.125 in dia. (0.188 in transitional dia.)

27 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-2

2.0 in x 0.188 in dia. (51 mm x 4.8 mm)

HiTemp140-2-TD

2.0 in x 0.125 in dia. (0.188 in transitional dia.)

51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-5.25

5.25 in x 0.188 in dia. (133 mm x 4.8 mm dia.)

HiTemp140-5.25-TD

5.25 in x 0.125 in dia. (0.188 in transitional dia.)

133 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-7

7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)

Dimensions (Body)

HiTemp140-1

1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.)

HiTemp140-2, 5.25, 7

1.9 in x 0.970 in dia. (48 mm x 24.6 mm dia.)

IP Rating

IP68

Submersible

Yes

Operating Environment

-40°C - 140°C (-40°F - 284 °F), 0% RH - 100% RH, Non-condensing

Required Interface Package

IFC400

Approvals

CE

Kit Specifications

Operating Environment

-200°C - 250°C (-328°F - 482°F) (time limited), 0% RH - 100% RH

Dimensions

Flush Top

2.75 in x 2.0 in dia.(69.85 mm x 51 mm dia.)

Vented Top

4.3 in x 2.0 in dia.(109.2 mm x 50.8 mm dia.)

Material (Enclosure)

PTFE

Weight (Not Including Data Logger)

Flush

6.7 oz (190 g)

Vented

9.5 oz (270 g)

• Autoclave verification
• Implement HACCP programs
• Food preparation and processing
• Environmental studies
• Well monitoring
• Dishwasher testing
• Pasteurization
• Peanut roasting
• Conveyer ovens
• Incubator validation

Item
Description
Availability
Price

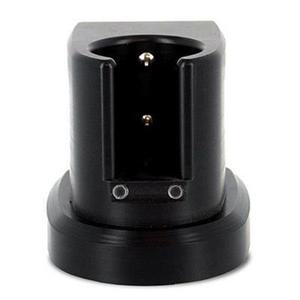

IFC400 Data Logger Interface
Interface cable package for the HiTemp140 and PR140 data loggers
Normally ships in 1-2 Weeks
$162.00 CAD

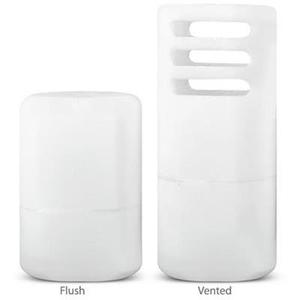

HiTemp140-TS Thermal Shield
Thermal shield for the HiTemp140 data logger, allows the data logger to be used in temperatures from 200 C to +250 C
Normally ships in 1-2 Weeks
$133.65 CAD

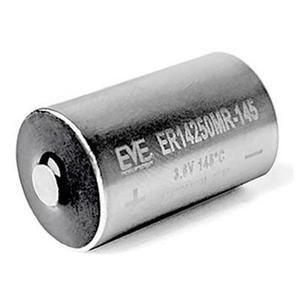

ER1425S-HT Lithium Battery
150C 3.6 V lithium battery, 1/2 AA pressure contact
Normally ships in 1-2 Weeks
$70.00 CAD

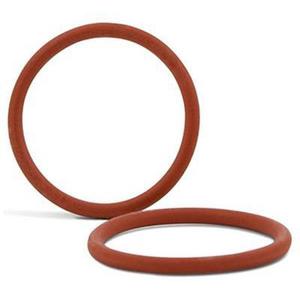

HiTemp140-O-Ring
One set of replacement O-rings for the HiTemp140
Normally ships in 1-2 Weeks
$5.40 CAD

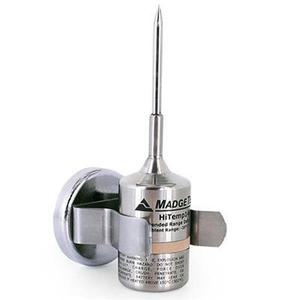

MagMount-1
Magnetic holder for use with the PR140, HiTemp140 series and 1000 series data loggers
Normally ships in 1-2 Weeks
$37.50 CAD

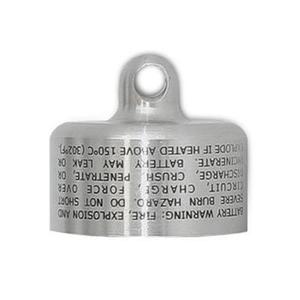

Key Ring End Cap
For use with the PR140, RHTemp1000 or HiTemp140 series data loggers, easily attaches to your key ring or lanyard
Normally ships in 1-2 Weeks
$13.50 CAD
ThermoVault Max Extreme Temperature Thermal Barrier
Submersible, stainless steel, extreme temperature thermal barrier for HiTemp140 data loggers
Normally ships in 1-2 Weeks
$3,375.00 CAD

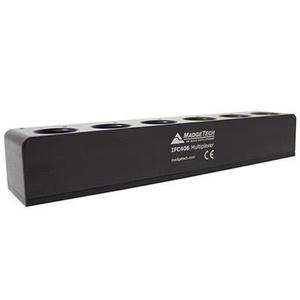

IFC406 Multiplexer Data Logger Interface
IFC406 multiplexer data logger interface allows for multiple data loggers to be connected into one interface
Normally ships in 1-2 Weeks
$741.15 CAD

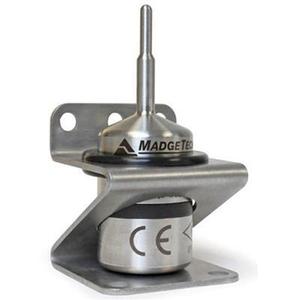

MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers
Normally ships in 1-2 Weeks
$75.00 CAD
MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ secure software validation workbook and software package
Normally ships in 1-2 Weeks
$1,890.00 CAD
