HygroFlex5-EX Series Humidity Transmitters
Two Channel, safe operation in areas with explosion risk, interchangeable stainless steel probes
This transmitter requires a HygroClip2 EX probe which is sold separately.
The HygroFlex5 series is compatible with HC2A probes which offers a high variety in temperature ranges, accuracy and body types. This device generation also boasts a unique calibration and adjustment process as well as many other useful innovations. The HF5 Humidity and Temperature Transmitters are available as wall and duct mount versions.
• Compatible with all HC2A probes (interchangeable)
• Range of application electronics -40…60 °C / 0…100 %rh
• Easy and fast validation through simulator modus
• GAMP compatible (HygroSoft Software)
| More Information Number of probe inputs | 1 |
| Accuracy at 23 ±5 °C | ±0.8 %rh / ±0.1 K |
| Galvanic separation output signals | Yes |
| Dimensions | 160 x 100 x 61 mm |
| Operating range | -40…60 °C / -10…60 °C (Models with display) 0…100 %rh, non-condensing |
| Display type | Optional graphics display. Presentation configurable. |
| Backlight | without Backlight |
| Trend indicator | Yes, for models with display |
| Psychrometric calculations | All psychrometric values |
| Analogue outputs scaleable by the user | Yes |
| Software Update | With internet and HW4 software |
| User information | from Software HW4 (devicemanager) |
| Data processing via HW4 | Graphics, statistics, analysis, qualification, etc. |
| Circuit type | 2 wire |
| Service Interface | UART (internal in device) |
| IP protection rating | IP66 |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 and GAMP compatible |
| Measuring range with interchangeable probe | 0…100 %rh and -40…85 °C |
| Measurement interval | 20…240 s |
| Probe adjustment by software | Not via device menu (only outside the explosive zone with HW4 + AC3001) |
| Analog output signal (standard) | 4…20 mA, two-wire |
| Probe material | Stainless steel |
| Enclosure material | Aluminium (DIN EN 1706 EN AC-AlSi 12 (Fe)) |
| Cable connections | Connections: Ex-e terminals (0.2…2.5 mm2) Cable gland: 16 x 1.5 (Ø cable 4.5…7 mm) |
| Weight | 1030 g / 1140 g |
| Start-up time | Standard cold <60 s / warm <30 s |
| Current consumption | 2x24 mA start up / 2x20 mA operation |
| CE / EMC conform | 2014/30/EU |
| Power supply | 10…28 VDC |
| Accuracy analog output | <20 μA |
| ATEX directives | 2014/34/EU (ATEX) CSA22.2, UL 508 |
| EX identification | EX II 2(1) G Ex eb mb [ia Ga] IIC T5 Gb EX II 2(1) D Ex tb [ia Da] IIIC T80°C Db |
| Identification EX North America | Class I, Div 1/2, Groups ABCD T5…T4, Class II, Div 1/2, Groups EFG T80°C…T110°C Ex e mb [ia Ga] IIC T5...T4 Ga/Gb Ex tb [ia Da] IIIC T80°C…T110°C Da/Db Class I, Zone 0/1, AEx e mb [ia Ga] IIC T5…T4 Ga/Gb Class II, Zone 20/21, AEx tb [ia Da] IIIC T80°C…T110°C Da/Db |
• HVAC applications
• Food and pharmaceutical industries
• Printing and paper industries
• Meteorology
• Agriculture
• Archaeology
• Humidity and Temperature Measurement in Cheese Production
• Controlled Atmosphere Monitoring
• Coating Process Optimization
Item
Description
Availability
Price

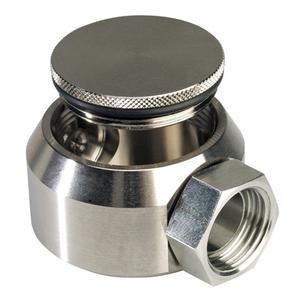

Calibration Tools
Various calibration devices for Rotronic probes
Normally ships in 4-6 Weeks
Starting At
$360.00 CAD
$360.00 CAD
Supplied in packs of 5 hermetically sealed ampoules of the same humidity level
Normally ships in 1-2 Weeks
Starting At
$220.00 CAD
$220.00 CAD
EX Probes

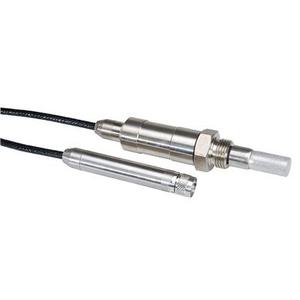

HygroClip2 EX screw-in cable probe, ±0.8 %rh/±0.1 K accuracy
Normally ships in 1-2 Weeks
Starting At
$3,185.00 CAD
$3,185.00 CAD

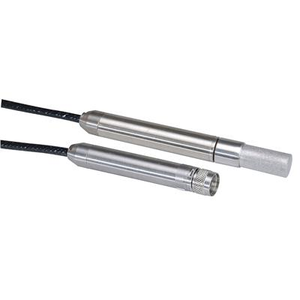

HygroClip2 EX cable probe, ±0.8 %rh/±0.1 K accuracy
Normally ships in 4-6 Weeks
Starting At
$3,185.00 CAD
$3,185.00 CAD
Standard HygroClip2 EX Probe, ±0.8 %rh/±0.1 K accuracy
Normally ships in 4-6 Weeks
$1,395.00 CAD
Software
User-friendly PC software to configure and read Rotronic measuring instruments
Normally ships in 3-4 Weeks
Starting At
$500.00 CAD
$500.00 CAD
View All Part Numbers
