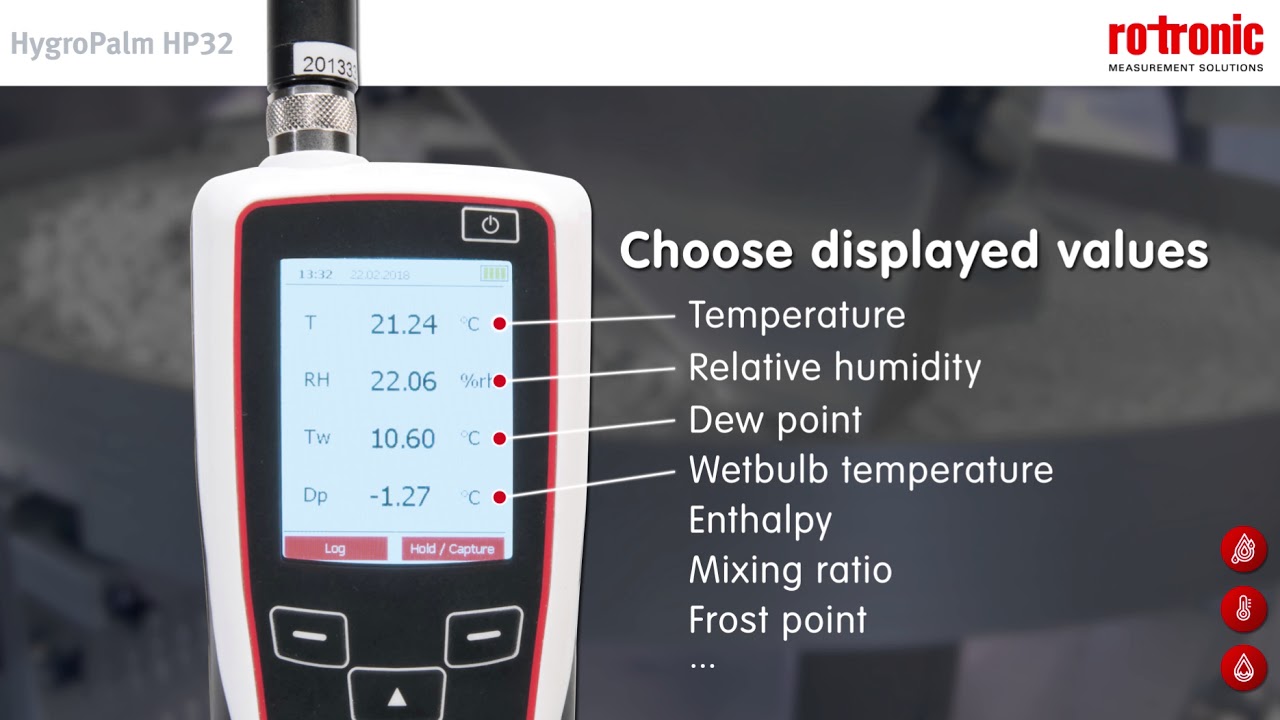

HygroPalm HP32 Handheld Indicator
Performs spot measurements and logging of relative humidity, temperature and psychrometric parameters
This handheld indicator requires a HygroClip2 probe which is sold separately.
The HygroPalm HP32 is a versatile handheld instrument compatible with all HC2A and HC2 ROTRONIC probes, it is able to perform spot measurements and logging of relative humidity, temperature and psychrometric parameters.
• Relative humidity, temperature and psychrometric calculations
• Graphical display for graphs and up to 4 values
• Freely settable visual and audible alarms on every value
• 64’000 data points memory for time programmable interval logging
• Long lasting battery (up to 48h when logging every 30s)
| Device Type | Handheld |
| Probes | All HC2A and HC2 probes |
| Parameters | Relative humidity and temperature |
| Range of Application | -10…60°C / 0…100%RH (non-cond.) |
| Accuracy | Probe dependent |
| Functions | Spot measurements Time programmable interval logging MIN / MAX / AVG |
| Battery | Lithium Polymer, 3,7V, 1000 mAh (integrated) 48h – Logging every 30s, screen off 10h – Screen always on |
| Psychrometric Calculations | Dew / Frost point (Dp /Fp) Wet bulb temperature (Tw) Enthalpy (H) Vapor concentration (Dv) Specific humidity (Q) Mixing ratio by weight (R) Vapor pressure (E) Saturation vapor pressure (Ew) Saturation vapor density (SVD) |
| Calculation Method | WMO Standard |
| Display Refresh Rate | 1 s (typical) |
| Logging Interval | 1 s…24 h |
| Storage Capacity | 8 x 8000 data points |
| Communication Interfaces | Micro USB |
| Housing | ABS, TPR |
| IP Protection Rating | IP65 |
| Storage and Transport Conditions | -10…45°C / 10…90%RH |
| Dimensions | 160 x 63 x 30 mm |
| Weight | 185 g |
• Field inspection and spot checks in HVAC
• Building Management Systems
• Agriculture and Food industry
• Pharmaceutical Industry
| Rotronic HygroPalm HP32 Handheld Indicator - Data Sheet 1.5 MB |
| Rotronic HygroPalm HP32 Handheld Indicator - Manual 2 MB |
Item
Description
Availability
Price
Cables
Connects HF3 transmitter to PC via the UART interface
Normally ships in 3-4 Weeks
Starting At
$220.00 CAD
$220.00 CAD
Extension Cables
Extension cables for connecting HygroClip2 probes to instruments
Normally ships in 4-6 Weeks
Starting At
$130.00 CAD
$130.00 CAD
Flush Mount Probes
Inconspicuous, installed in the walls of glass cabinets, showcases, laboratories and clean rooms
Normally ships in 2-3 Weeks
Starting At
$855.00 CAD
$855.00 CAD
Hight Temperature Probes
Suitable for climatic and temperature chambers, dryers, air ducts
Normally ships in 3-4 Weeks
Starting At
$1,750.00 CAD
$1,750.00 CAD
Industrial Probes
±0.8 %rh and ±0.1 K accuracy, for harsh environments
Normally ships in 3-4 Weeks
$1,075.00 CAD
Suitable for heavy industrial applications with through Wall installations
Normally ships in 3-4 Weeks
Starting At
$1,580.00 CAD
$1,580.00 CAD
Stainless steel probe for through wall installation, suitable for high temperatures, demanding industrial environments and areas where hygiene plays an important role
Normally ships in 3-4 Weeks
Starting At
$1,825.00 CAD
$1,825.00 CAD
Stainless steel probe for pressurized conduits and vessels, suitable for high temperatures, demanding industrial environments and areas where hygiene plays an important role
Normally ships in 3-4 Weeks
Starting At
$2,200.00 CAD
$2,200.00 CAD
Insertion Probes
Suitable for measurement in dust-free bulk materials, bricks, concrete, etc.
Normally ships in 1-2 Weeks
$1,750.00 CAD
Handheld probe for measuring bulk packaged materials, for use with HygroLab C1 and HP23-AW-A
Normally ships in 3-4 Weeks
Starting At
$1,905.00 CAD
$1,905.00 CAD
Miniature Probes
Miniature probe is used for humidity and temperature measurement in confined spaces
Normally ships in 3-4 Weeks
Starting At
$1,750.00 CAD
$1,750.00 CAD
Software
User-friendly PC software to configure and read Rotronic measuring instruments
Normally ships in 3-4 Weeks
Starting At
$500.00 CAD
$500.00 CAD
Standard & High Precision Probes
Most versatile probe from ROTRONIC and forms the basis of the product portfolio, offering ±0.8 %rh and ±0.1 K accuracy
Normally ships in 3-4 Weeks
$605.00 CAD
Fulfills the highest demands on measuring accuracy (±0.5% RH) for indicators, transmitters or data loggers
Normally ships in 3-4 Weeks
$2,105.00 CAD
Sword Probe
Handheld probe for measuring humidity in paper stacks or rolls
Normally ships in 3-4 Weeks
Starting At
$1,905.00 CAD
$1,905.00 CAD
SKU
Quantity
Price
HP32
1
$830.00 CAD
