IS626 Intrinisically Safe Pressure Transmitter

Accurately measure compatible gases and liquids with a 0.25% full scale accuracy in hazardous locations

Starting At
$404.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The Dwyer SERIES IS626 Intrinsically Safe Pressure Transmitter can be used to accurately measure compatible gases and liquids compatible with its 316/316L Stainless Steel wetted parts. Series IS626 full scale accuracy is 0.25%. Designed for industrial environments with a NEMA 4X (IP66) housing, this transmitter resists most effects of shock and vibration. Models are available with a 3 ft cable or M-12 4 pin connection.

The IS626 is UL listed for use in Hazardous (Classified) Locations. The protection method is by Intrinsic Safety, "ia". It was investigated by UL under UL Standard 913 Sixth Edition and CSA Standard No. 157-92.

• Exceptional accuracy for insuring tight-control and minimizing costly out of specification conditions
• NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
• Robust sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications

Service Compatible gases and liquids
Wetted Materials Type 316, 316L SS
Accuracy 0.25% FS; absolute range: 0.5% FS (includes linearity, hysteresis, and repeatability)
Temperature Limit 0F - 176F (-18C - 80C)
Compensated Temperature Range 0F - 176F (-18C - 80C)
Thermal Effect 0.02% FS/F (includes zero and span)
Pressure Limits See Catalog page
Power Requirements 10 VDC - 28 VDC
Output Signal 4 - 20 mA
Response Time 50 ms
Loop Resistance 0 Ω - 900 Ω maximum
Current Consumption 38 mA (maximum)
Electrical Consumption 3 ft cable or 4-pin M-12 Connector
Process Connection 1/4 in male/female NPT and BSPT
Enclosure Rating NEMA 4X (IP66)
Mounting Orientation Mount in any position
Weight 8.9 oz (252 g)
Agency Approvals CE, cULus Intrinsically Safe to UL Standard 913

• Monitoring pressure in hazardous environments
• Process

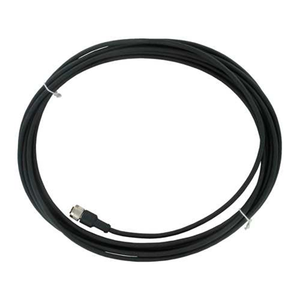

A-231 Shielded Cable with 4-Pin Female M-12 Connection
16 ft. shielded cable with 4-pin M-12 connection
Normally ships in 1-2 Weeks
$150.00 CAD
MTL7706 Intrinsically Safe Zener Barrier
Intrinsically safe shunt-diode barrier to be used to communicate with and provide isolation for certain Dwyer transmitters approved for use in hazardous locations.
Normally ships in 1-2 Weeks
$740.00 CAD
