Meriam Process Technologies

M200LS Smart Manometer

Handheld, lab standard digital manometer with an NIST traceable accuracy of 0.01% of FS

Starting At
$1,950.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

Meriam’s M200LS Lab Standard Smart Manometer offers the best available pressure measurement accuracy in a portable, handheld format.  Why LS?  The M200LS features 60% better accuracy than our M200, and no temperature effects from 30°C - 50°C (59°C - 86°C). The NIST traceable accuracy is typically ± 0.01% of F.S. within the temperature range of 15°C - 30°C and ± 0.025% F.S. between -20°C - 15°C and 30°C - 50°C. Pressure ranges from 28 in H2O F.S. to 500 PSIG F.S. are available.

M2 pressure sensors are available to measure gauge, differential, absolute or vacuum pressure. The display can read out in any of eleven pressure units or can be linearly scaled for special user units. An adjustable damping feature minimizes the effects of pulsating pressures.

A Min/Max function captures the extremes of pulsating or varying pressure signals and a Hold function can freeze the display at any point of interest. Auto Record documents up to 240 readings for future recall.

All models include a protective platinum boot, four (4) AA batteries, and a hard copy user's manual.

Note: M200LS model DN0028 (0 - 28.000 in H2O, Differential) has ± 0.02% FS accuracy.







• Impressive accuracy of ± 0.01% full scale between 15°C - 30°C, ± 0.025% full scale between -20°C - 15°C and 30°C - 50°C
• Pressure ranges from 10 in H2O F.S. to 3000 PSIG F.S. are available
• Numerous field, plant and lab applications, including leak testing and pressure drop monitoring
• Easy-to-use and designed to handle tough applications
• Auto record documents up to 240 readings for future recall
• Can be recalibrated in the field
• Measures various types of pressure, including differential, gauge, absolute and vacuum

Accuracy 0.010% F.S. from 15C - 30C
0.025% F.S. from -20C - 15C and 30C - 50C
Display 5 significant digit LCD (0.25 in high) 2 line x 16 alphanumeric characters with contrast adjustment. Two stage backlight with visual overrange indication.
Battery Type Four (4) AA batteries
Battery Life Over 100 hrs of continuous use
Process Connections 1/8 in female NPT, 316L SS
Media Compatibility DN: Non-isolated differential sensor for clean,
dry, non-corrosive gases
GI & AI: Isolated Gauge or Absolute
sensor for fluids compatible with 316L SS
Pressure Limits 28 in H2O, 200 in H2O, 2000 in H2O, 15 PSI, 30 PSI, 50 PSI, 100 PSI, 500 PSI, 900 mm Hg, 2000 mm Hg
Engineering Unit Selection in of H2O (select 4C, 20C, or 60F),
PSI, mm of Hg, in of Hg, mbar, bar, kPa, kg/cm2, cm of H2O and user selectable
scaling
Storage Temperature -40C - 60C (-40F - 140F)
Operating Temperature 15C - 30C (59F - 86F)
Base Unit Materials Polycarbonate, permanently dissipative, ESD protection
Wetted Parts Materials DN: 316L SS, brass, viton
GI: 316L SS
AI: 316L SS
Weight 14 oz
Dimensions 6.5 in x 3.6 in x 2.25 in
Other Features Auto shut-off, auto record, field recalibration, leak test
Approvals / Certifications NIST certificate with data included with all models
Item
Description
Availability
Price
ABS plastic carrying case for M200, M201 and M202 manometers
Normally ships in 1-2 Weeks
$130.00 CAD
Protective platinum coloured boot for the M200LS smart manometer
Normally ships in 1-2 Weeks
$40.00 CAD
316 stainless steel 3 valve manifold with stainless steel tubing, to 3000 PSIG
Normally ships in 1-2 Weeks
$790.00 CAD

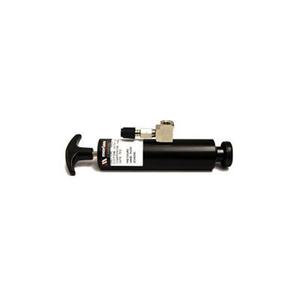

Pressure or vacuum pump with integral variator, bleed valve, 1/8 in FNPT connection
Normally ships in 1-2 Weeks
Starting At
$582.00 CAD
Configure

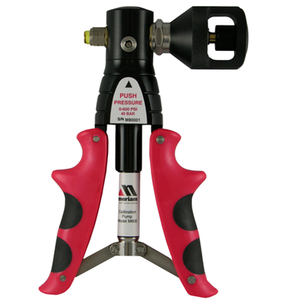

Vacuum 28 in Hg to pressure 600 PSI (40 bar)
Normally ships in 1-2 Weeks
$909.00 CAD
316 stainless steel 3 valve manifold with brass tubing, to 500 PSIG
Normally ships in 1-2 Weeks
$377.00 CAD
