Meriam Process Technologies

M400 Handheld Pressure Transmitter Calibrator / Data Log...

Handheld precision calibrator includes one sensor plus an impressive array of features, functions, and impressive accuracy specification

Starting At
$4,596.00 CAD
Normally ships in 4-6 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

Meriam’s M4 Series Handheld Precision Calibrator / Data Logger delivers an impressive array of features, functions and an impressive accuracy specification. The M400 includes one pressure sensor and one mA/V instrument. Choose from differential, gauge, compound or absolute pressure types and ranges from 10 in H2O to 3000 PSIG full scale.  Data Logging is standard on all M4 Series models.

With its impressive accuracy and handheld convenience the M4 Series Calibrator/Data Logger is used in medical device manufacturing, pharmaceutical manufacturing, and laboratory settings and anywhere accuracy counts.


• Impressive accuracy of ± 0.025% of full scale, with accuracy maintained over wide temperature range
• Log data to dedicated 4 GB SD card and retrieve via USB port
• Free PC application for creating standard .csv files
• Ease of Use
• Easy to use intuitive interface
• Large backlight with easy to read display
• Field updatable via USB
• Includes a soft carrying case, test lead set, batteries, SD card, and manual

Operating Temperature -20C - 50C (-4F - 122F)
Storage Temperature -40C - 60C (-40F - 140F)
Pressure Connections 1/8 in NPT (female)
Electrical Connections Standard banana jacks on 3/4 in centers, USB-mini-B (female)
Power (Portable Source) Four (4) 1.5 V AA alkaline batteries provides 30+ hrs of continuous measurement service
Power (Operation with a PC) Power over USB using USB type A to mini-B cable
(requires high power 500 mA port)
Display 128 x 128 pixel (2 in x 2 in viewable) display with adjustable backlight (green) and attention backlight (red)
Keypad Sealed membrane keypad with molded
dome switches and integrated Adaptive Interface
Wheel
Materials Polycarbonate case, Softflex over-molded bumpers, IP40
Weight 1.5 lbs - 1.8 lbs
Dimensions 8.5 in L x 3.75 in W (max.) x 2.25 in D (max.)
Firmware Features Measurement Hold, Zero, Tare, Exponential or Smart
Damping, Continuous Min/Max Display, Units Select and Configuration, Advanced Data Logging, Configurable Auto-Off Timer, Configurable Backlight
Timer, Configurable Backlight Intensity, Configurable Display Contrast, Time Display Battery Monitor with Percent and Various Status Indicators
Field Recalibration All sensors can be recalibrated in the field using suitable reference standards
Item
Description
Availability
Price
Z9P444 USB Card Reader
USB 2.0 compatible data card reader
Normally ships in 1-2 Weeks
$66.70 CAD

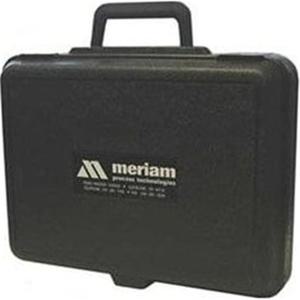

Z9A571 ABS Plastic Carrying Case
Carrying case that includes foam cut out for M4 series, lead set, pressure pump, fittings
Normally ships in 1-2 Weeks
$287.10 CAD
ZA34386 Low Pressure Connector Kit
Low-pressure connector kit for the M1 series of manometer calibrators
Normally ships in 1-2 Weeks
$217.50 CAD
